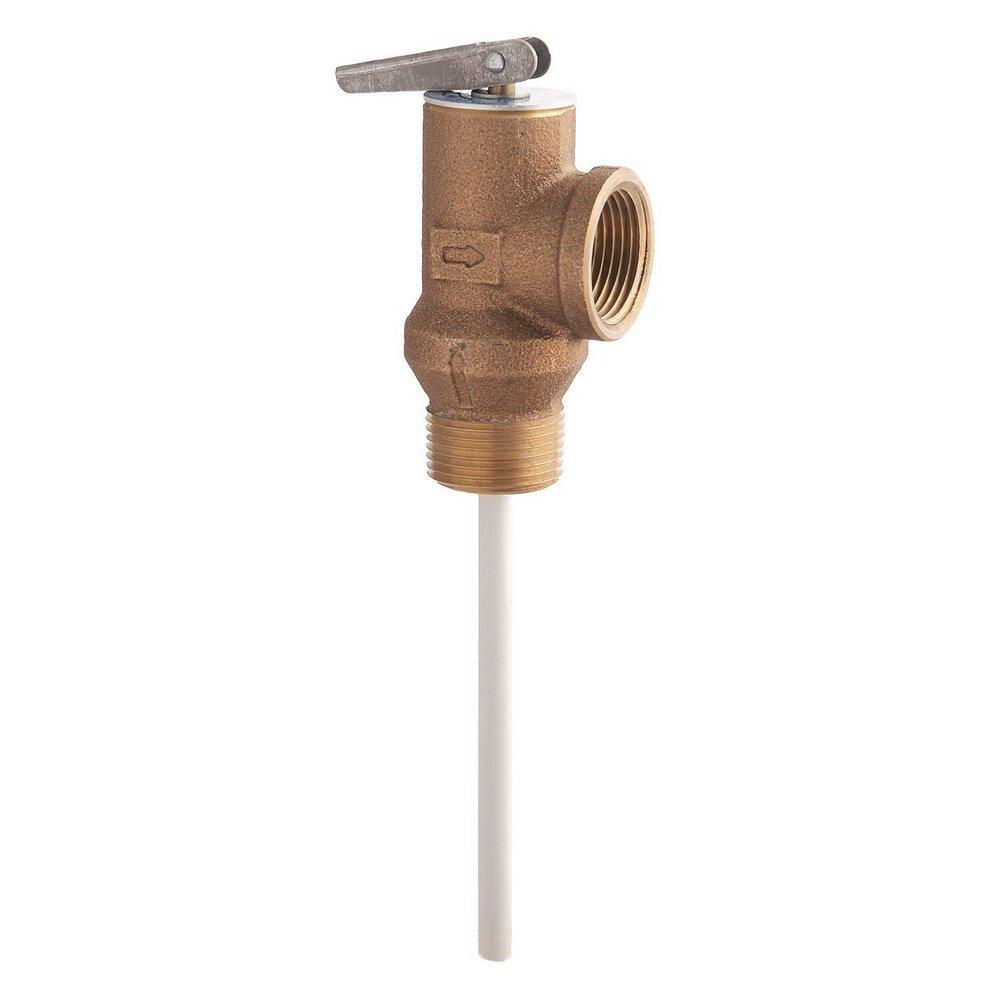

Watts 0121344 Series LF100XL 3/4 in. Copper Alloy MNPT x FNPT 175# 210 Relief Valve

Product Description

The Watts 0121344 Series LF100XL is a 3/4-inch copper alloy relief valve featuring MNPT x FNPT connections. This valve is designed to protect hot water supply tanks and heaters with up to 105,000 BTU/hr capacity. It ensures safety with automatic temperature and pressure relief, making it suitable for various domestic applications.

• Provides temperature and pressure relief
• Bronze body with threaded connections
• ASME rated and CSA listed

Product Highlights

This relief valve is ideal for ensuring the safety of water heaters and hot water tanks. It features a test lever and unique thermostat with a special thermo-bonded coating for reliable performance.

Product Information

Standard Information

• Brand: Watts
• MPN: 0121344
• Category: Relief Valves

Technical Specifications

• Size: 3/4 inch
• Weight: 0.475 pounds
• Material: Bronze
• Inlet Type: MNPT
• Outlet Type: FNPT
• Pressure Set Point: 175 psi
• Temperature Range: 210 degrees Fahrenheit
• CSA Rating: 105,000 BTU/hr
