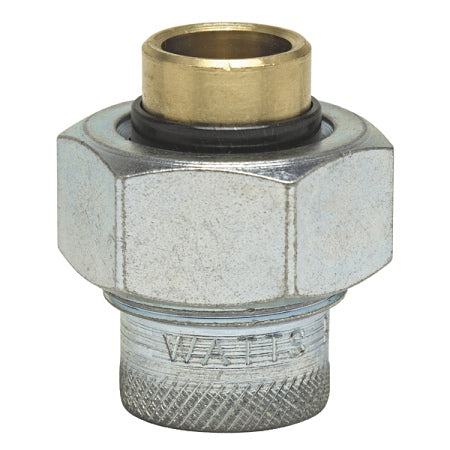

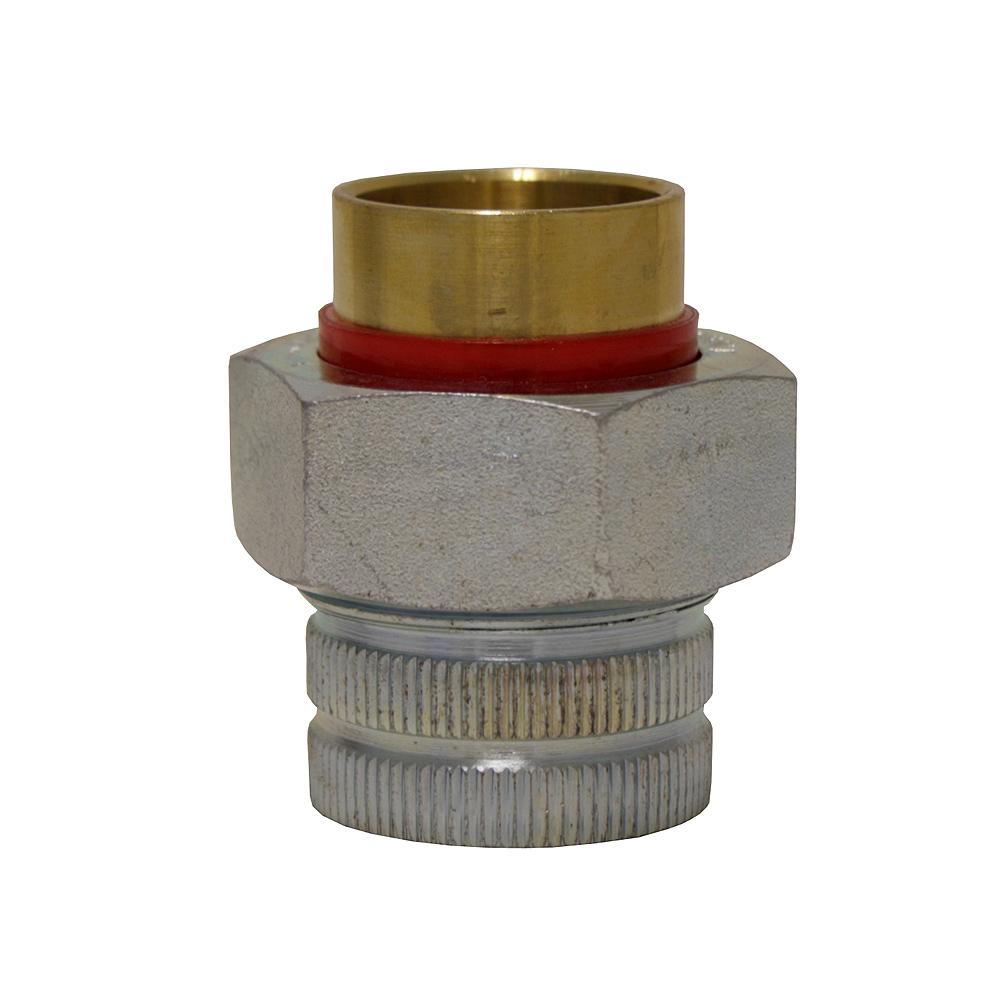

Watts 0121297 Lf3001-Gb 3/4 Dielectric Union

Product Description

The WATTS 0121297 Lf3001-Gb 3/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals.

• EPDM gasket for use in steam or hot water applications
• Maximum pressure is 50 psi (3.4 bar)
• Maximum temperature 300 degrees F (149 degrees C)
• FIP thread to solder connections

Product Highlights

The Watts dielectric union consists of a female iron pipe thread to solder connections, union nut, two tailpieces, and an EPDM gasket.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0121297

Technical Specifications

• Adapter Material: Steel
• Brand: Watts
• Buy American Act Compliant: NO
• Gasket Material: EPDM
• Gasket Maximum Pressure: 50 PSI
• Gasket Maximum Pressure-BAR: 3.40
• Gasket Maximum Temperature: 300 Degree F
• Inlet Connection Size: 3/4 IN
• Inlet Connection Size-Metric: 20 MM
• Inlet Connection Type: Female Threaded
• Inlet Material: Steel
• Inlet Thread Type: IPS
• Insulator Material: Polysulfone
• Lead Free: YES
• Maximum Working Pressure-PSI: 50
• Maximum Working Temperature-Fahrenheit: 300
• Nut Material: Steel
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Socket
• Outlet Material: Lead Free Brass
• Outlet Thread Type: Does Not Apply To Product
• Part Number: 0121297
• Series: LF3001A
• Type: Kit
• UPC: 098268582536
• Package Quantity: Each
• Valve Size: 3/4 Inch
• Model Number: 3001
