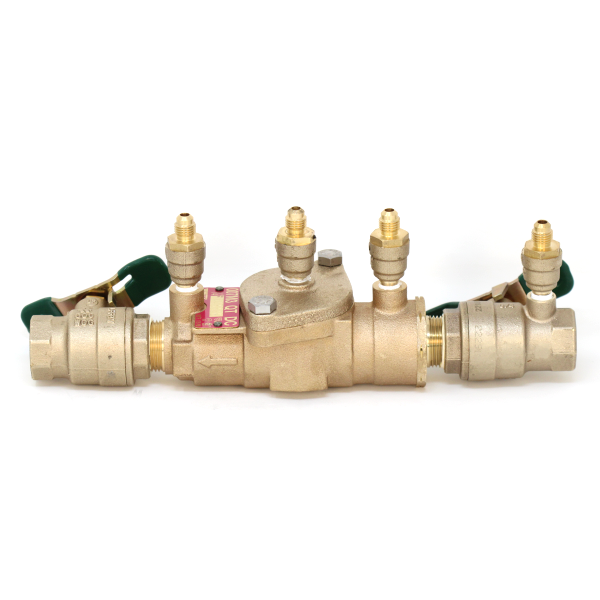

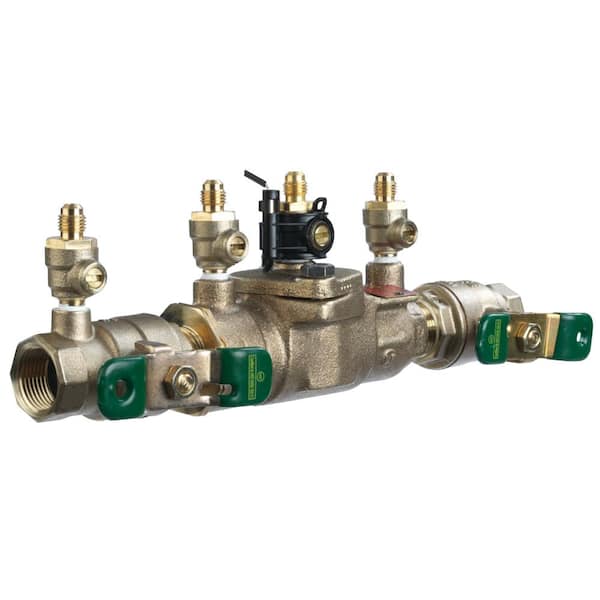

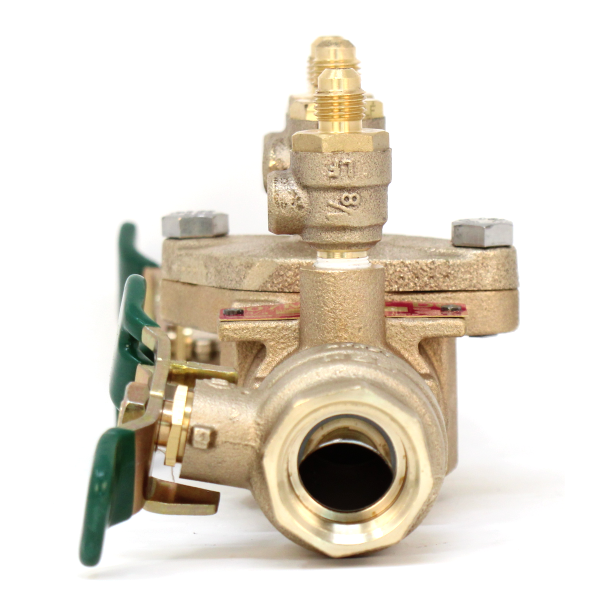

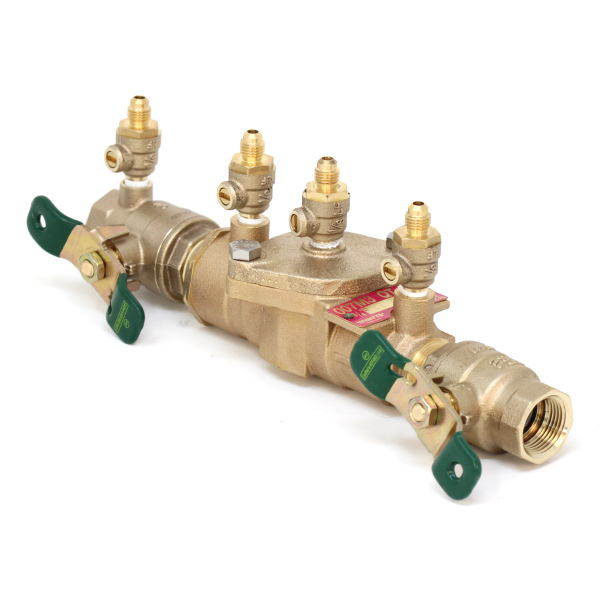

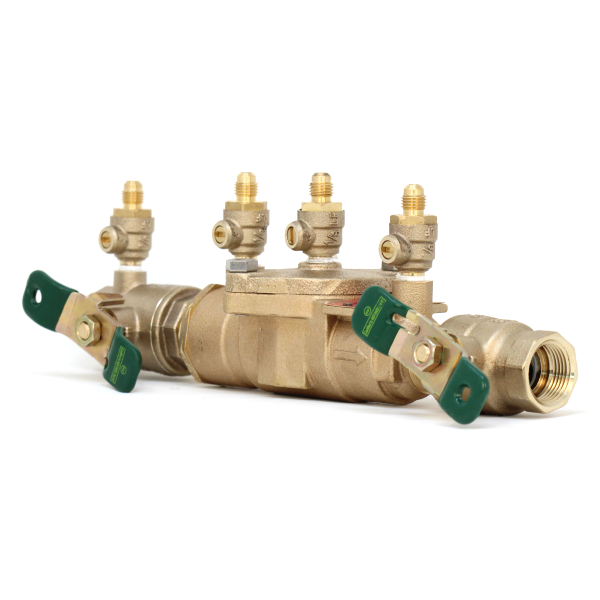

WATTS 007M3-QT 3/4 IN Bronze Double Check Valve Assembly Backflow Preventer

Product Description

The WATTS 007M3-QT 3/4 inch double check valve assembly backflow preventer is designed to stop the backflow of contaminated water into the drinking water supply. Its compact design allows for easy maintenance through a single access cover, making in-line repairs simple. This assembly suits continuous pressure piping applications and features a durable cast bronze body, ensuring long-lasting reliability.

• Prevents backflow of polluted water
• Compact modular design for easy maintenance
• Includes quarter turn ball valve shutoffs

Product Highlights

This backflow preventer is essential for protecting potable water sources in residential and commercial applications.

Product Information

Standard Information

• Brand: Watts
• Part Number: 0062020

Technical Specifications

• Backflow Preventer Type: Double Check Valve Assembly
• Body Material: Cast Bronze
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Female Threaded
• Maximum Working Pressure: 175 PSI
• Dimensions: H 5.0 in., L 7.25 in., W 7.25 in.
• Certification: Freeze Protection
• Indoor/Outdoor Use: Yes
• Serviceability: Easy maintenance with single access cover
