Watts 0067600 Radiator Angle Valve 2 in

Product Description

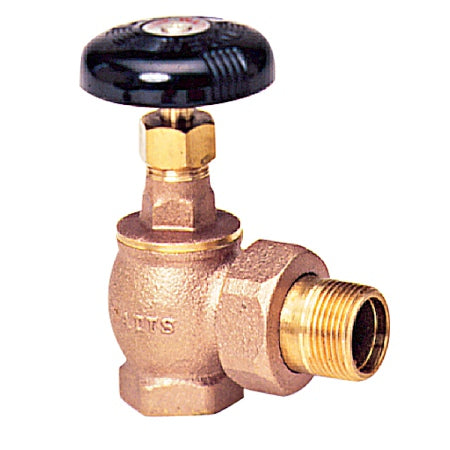

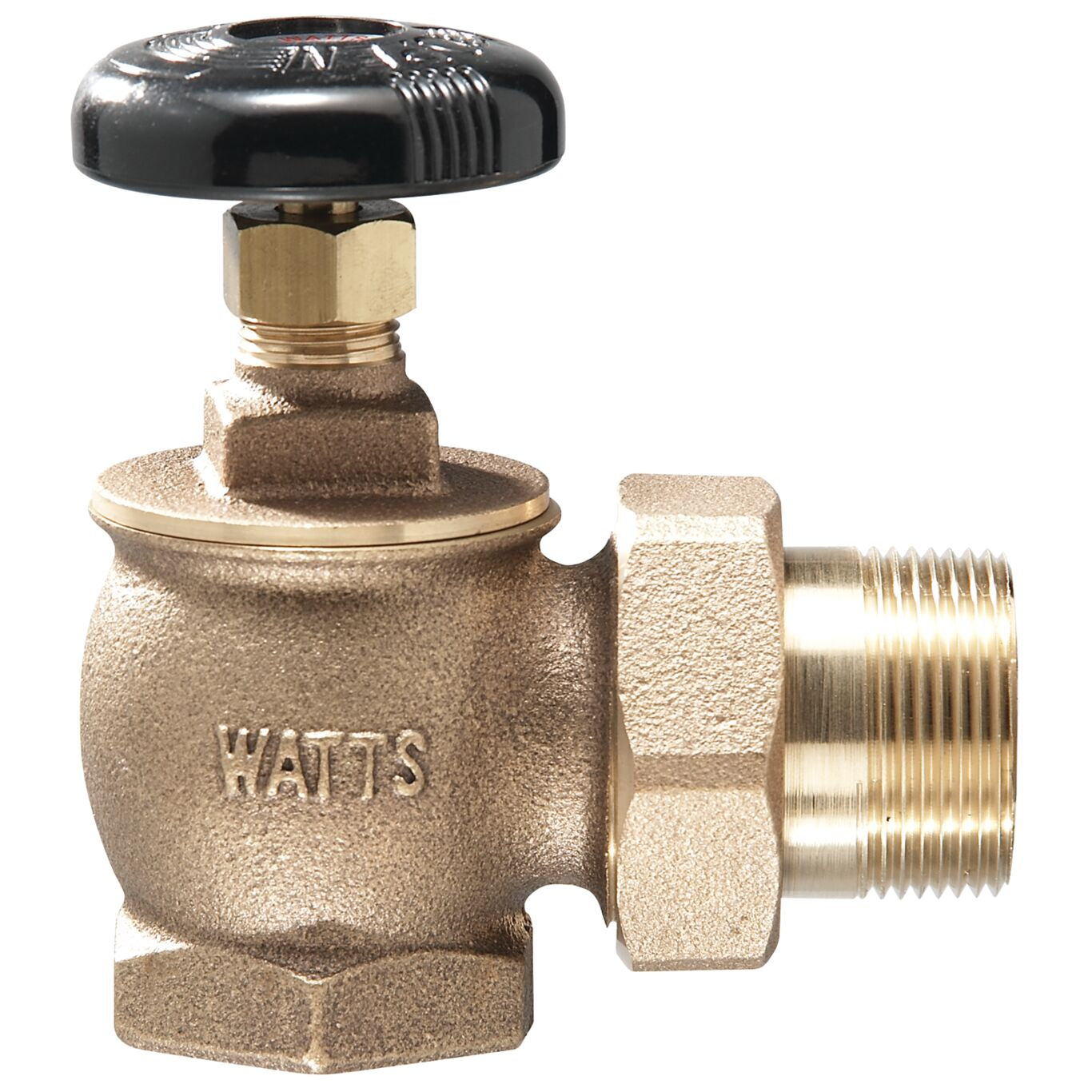

The WATTS 0067600 Radiator Angle Valve, from the RA Series, is designed for use as a shutoff valve in steam or hydronic heating systems. It features a bronze body and angle pattern with FIP x male union connections. Suitable for steam service.

• Bronze bonnet, brass stem, retainer, swivel, disc nut and packing nut
• PTFE stem packing, rubber NBR disc, plastic hand wheel, steel screw, aluminum name plate
• Thread x male union

Product Highlights

The valve has a threaded x male union connection and is constructed of heavy-duty bronze.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0067600

Technical Specifications

• Connection Type: Threaded x Male Union
• Material Standard: ASTM B-584 UNS C84400/AISI 1020/ASTM 209-1100
• Material: Bronze
• Model: RA-1-AP
• Nominal Size: 2 in
• Pressure Rating: 60 psi Non-Shock Hot Water, 15 psi Non-Shock Saturated Steam
• Series: RA Series
• Service Type: Steam
• Maximum Steam Pressure: 15 psi
• Maximum Water Pressure: 60 psi
• Body Material: Bronze
• Body Pattern: Angle
• Inlet Connection Size: 2"
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: IPS
• Lead: Present
• Lead Free: No
• Outlet Size: 2"
• Outlet Thread Type: Not Applicable
• Outlet Type: Union Joint
• Inlet Size: 2"
• Hydronic Item Type: Radiator Supply Valve
• Buy American Act Compliant: No
• Inlet Connection Size-Metric: 50 MM
• Outlet Connection Size: 2 IN
• Outlet Connection Type: Union Joint
• Part Number: 0067600
