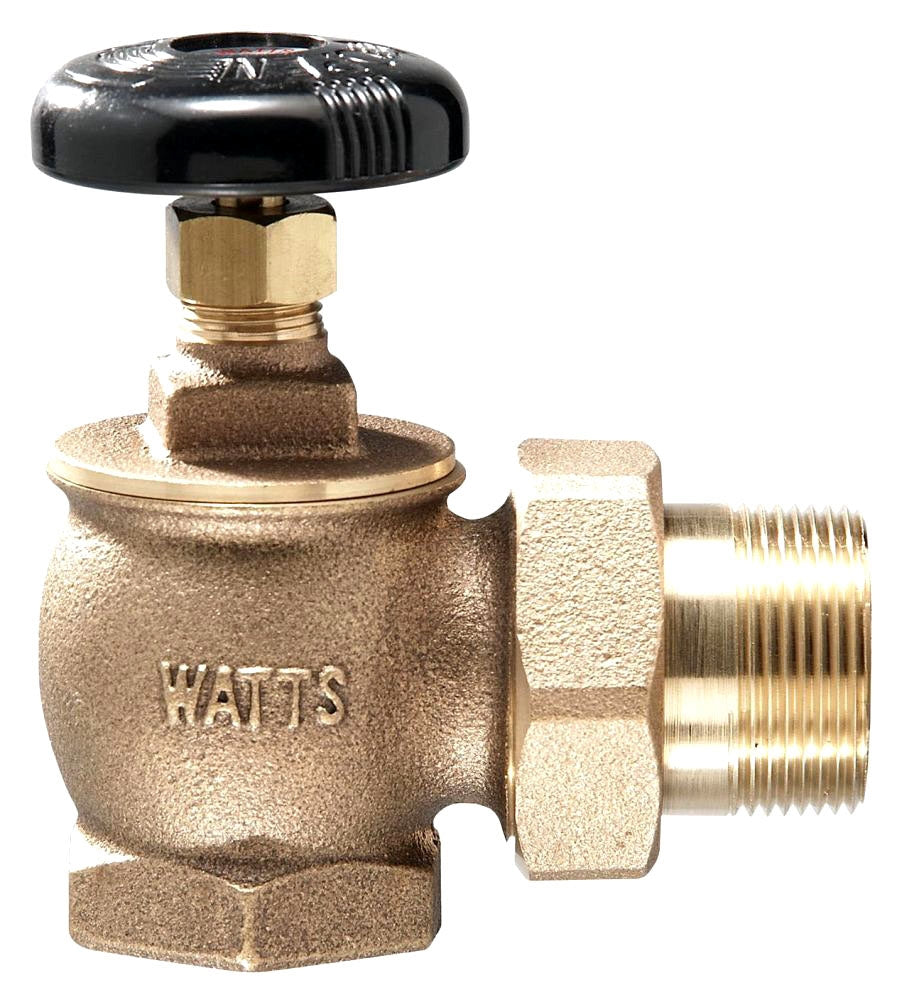

Watts 0067452 1 RA-1-AP Steam Radiator Angle Valve 1 in IPS x 1 in

Product Description

The Watts Regulator Company 0067452 is a steam radiator angle valve designed for use in heating systems. This product features a one inch nominal size and includes FNPT x male union connections. The maximum working pressure is rated at 60 psi, which is suitable for steam and non-shock water applications.

• Bronze body construction
• Handwheel actuator
• Renewable composition disc

Product Highlights

This valve serves as a shutoff in steam or hydronic heating systems, effectively controlling the flow of water for heating purposes. Its durable design ensures long-lasting performance in various applications.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268394887

Technical Specifications

• Nominal Size: 1 in
• End Style: FNPT x Male Union
• Inlet to Outlet Length: 2-7/8 in
• Top to Inlet Center: 3-5/8 in
• Body Material: Bronze
• Trim Material: Brass
• Softgoods Material: Rubber Disc
• Pressure Rating: 60 psi
