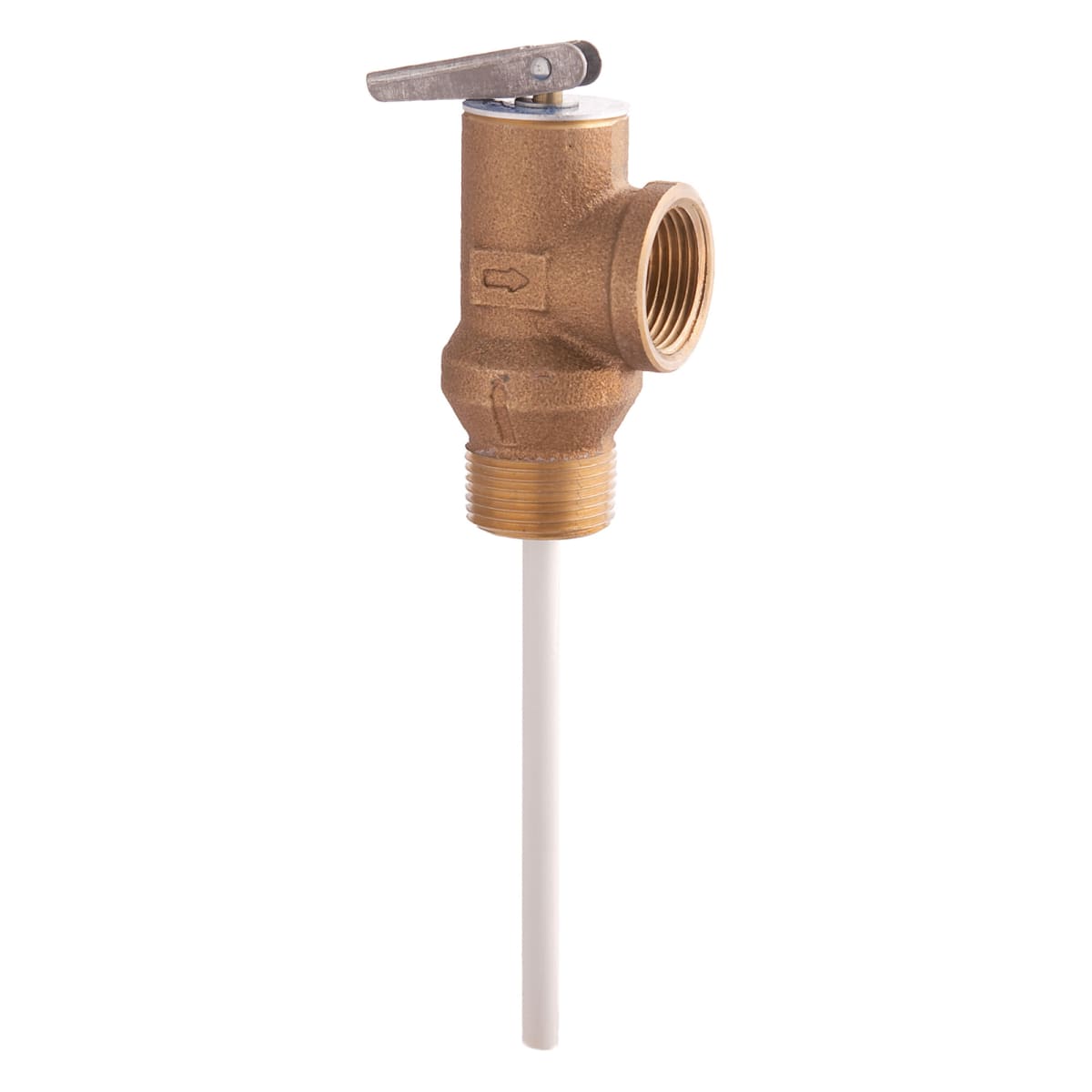

Watts 0066103 3/4 Brass Self Closing Temperature and Pressure Relief Valve 175 psi 210 degree F

Product Description

The Watts 0066103 is a three-fourth inch temperature and pressure relief valve. This valve provides automatic temperature and pressure protection for hot water tanks and heaters with a capacity of up to 105,000 BTU per hour. It is designed to safeguard against excessive temperature and pressure scenarios.

• Offers automatic protection for hot water systems
• Rated for pressure relief up to 175 psi
• Temperature relief set at 210 degrees Fahrenheit

Product Highlights

This valve features a forged brass body and includes NPT female outlet and NPT male inlet connections. It comes with a test lever and an extension thermostat that is coated with a special thermo-bonded layer for enhanced performance.

Product Information

Standard Information

• Type: Temperature Pressure Relief Valve
• Material: Brass

Technical Specifications

• Pressure Range: 75 to 150 PSI
• Connection Size: 3/4 inch
• Connection Type: Male Threaded
• Working Pressure: 175 psi
