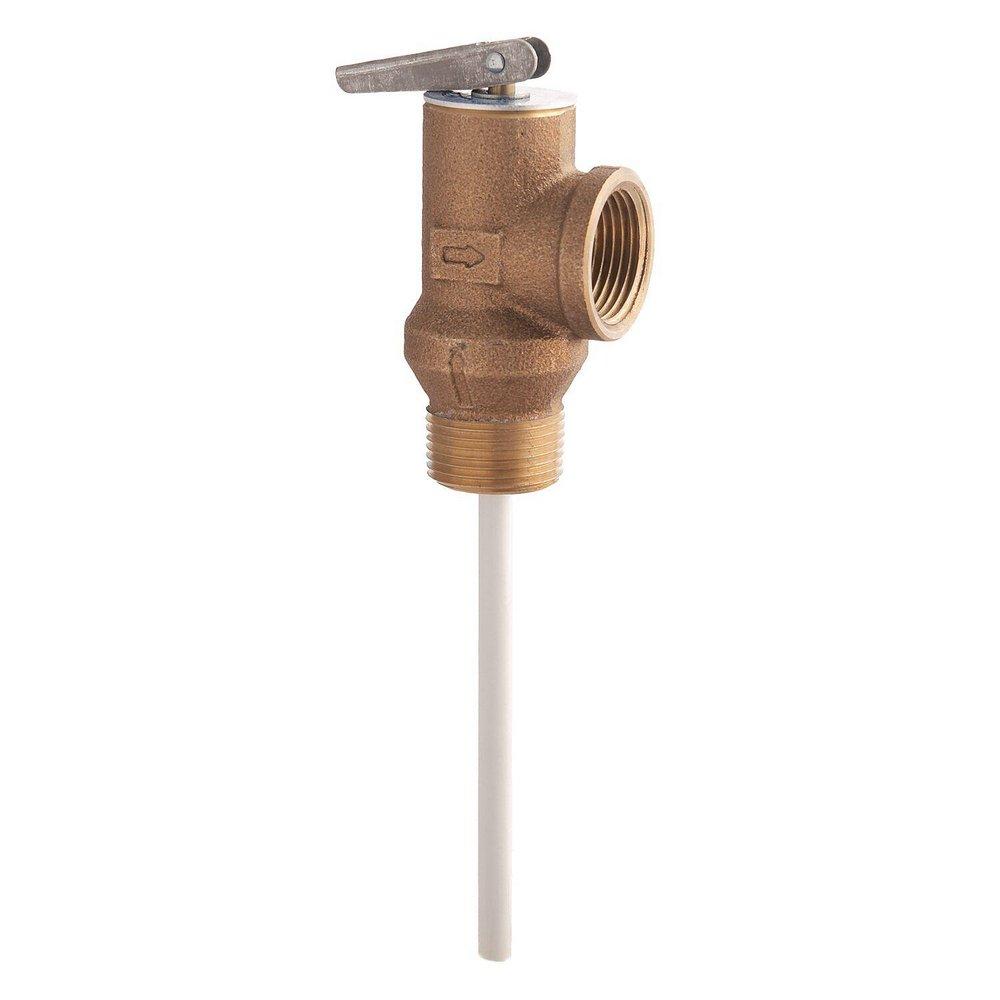

Watts 0066087 Series 100XL 3/4 in. Brass MNPT x FNPT 100# 210 Relief Valve

Product Description

The Watts 0066087 Series 100XL 3/4 inch brass MNPT x FNPT relief valve is a crucial component in maintaining safe water pressure levels within hot water systems. This valve protects against excessive pressure in residential applications, including water heaters and storage tanks. It features a unique thermostat with a thermo-bonded coating for reliability and accuracy. The spring-loaded latch-lock handle ensures easy operation.

• Brass body material for durability
• Temperature relief set at 210 degrees F
• Pressure relief rated at 100 psi for safety

Product Highlights

This product effectively guards against pressure-related issues, preventing potential damage to water heating systems. It is certified by ASME and includes important features such as a test lever for system checks.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: 0066087

Technical Specifications

• Body Material: Brass
• Nominal Size: 3/4 inch
• End Style: MNPT x FNPT
• Temperature Rating: 210 degrees F
• Pressure Rating: 100 psi
• Dimensions: 1-5/32 inches width x 3-11/64 inches height
