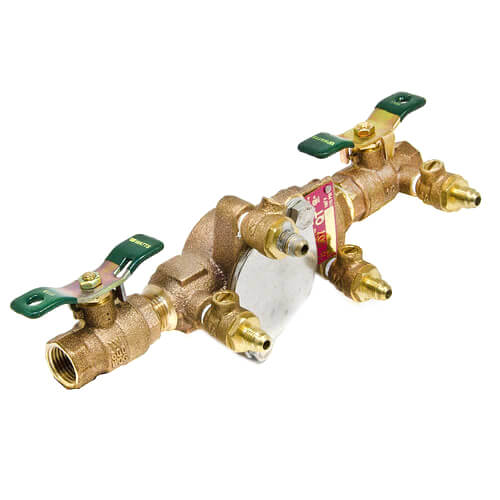

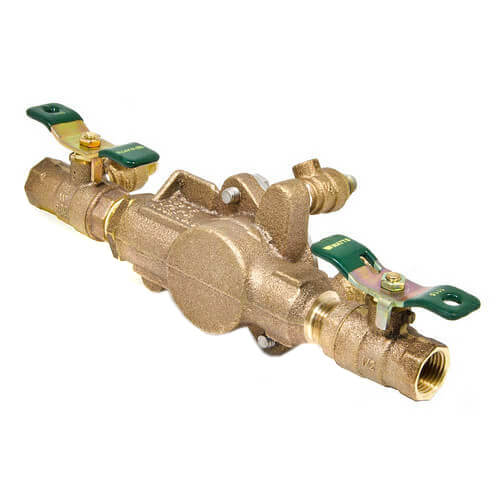

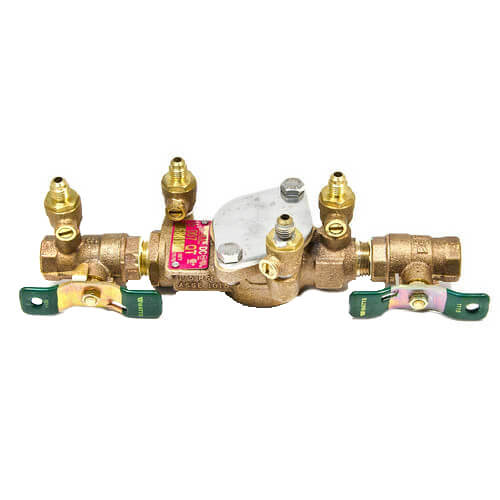

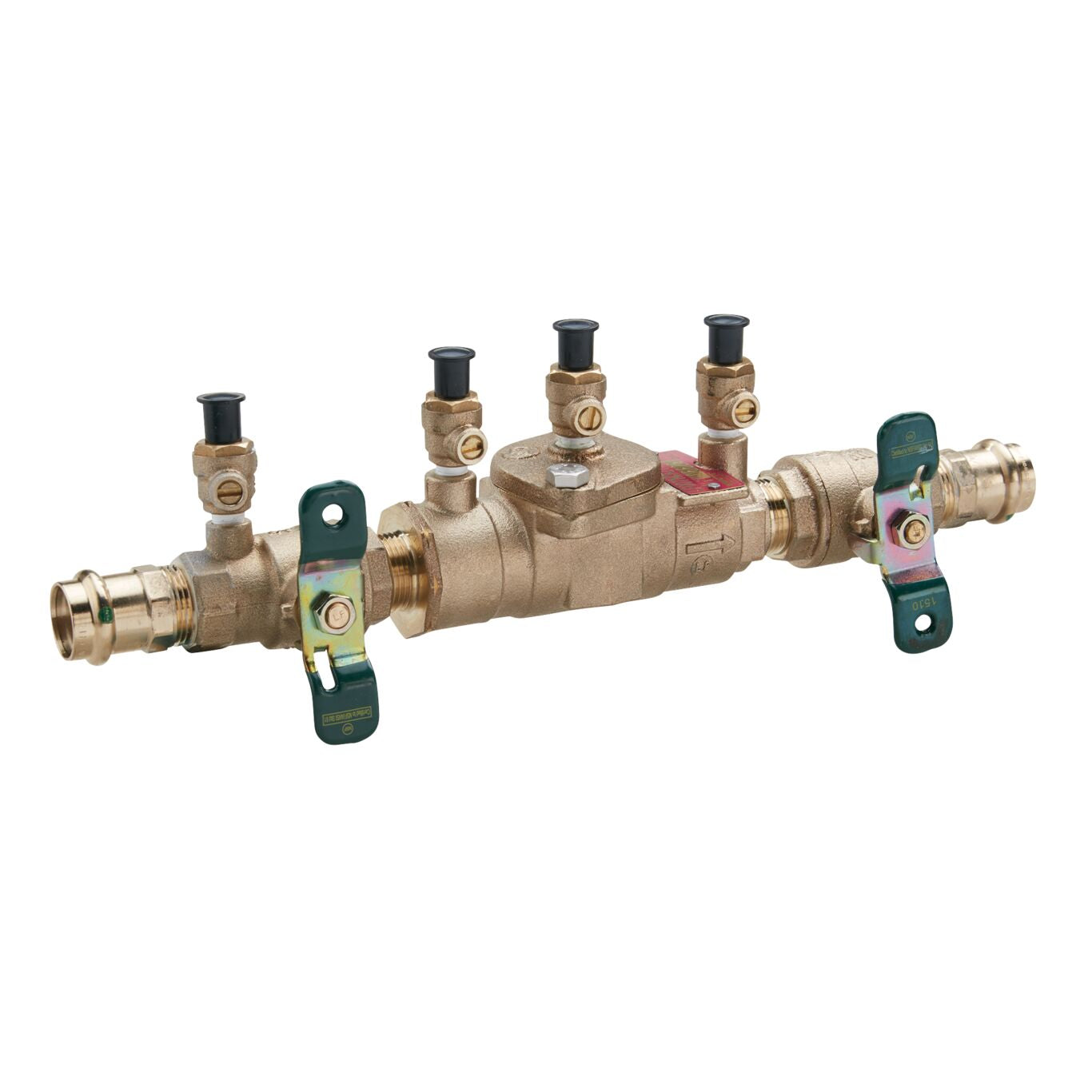

Watts 0063240 1 inch lead free double check valve backflow preventer assembly, quarter turn shutoff, single top entry, viega propress adaptors

Product Description

The WATTS 0063240 is a 1" lead free double check valve backflow preventer assembly designed to protect potable water supplies from pollution due to backsiphonage or backpressure. This assembly is suitable for continuous pressure piping applications and non-health hazard cross-connections. It features a compact modular design for easy maintenance, including a single access cover for in-line repairs. The construction includes a lead free bronze body, NPT end connections with Viega ProPress adaptors, and quarter turn ball valve shutoffs.

• Lead free construction ensures safe potable water supply.
• NPT inlet and outlet connections with Viega ProPress (R) Adaptors for secure installation.
• Replaceable seats and seat discs facilitate easy maintenance and extended product life.

Product Highlights

Compact, lead-free double check valve assembly with quarter-turn shutoffs and Viega ProPress adaptors for potable water protection.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0063240

Technical Specifications

• Type: Double Check Valve Backflow Preventer Assembly
• Bypass: No
• Material: Lead Free Bronze
• Test Status: Testable
• Connection Size: 1"
• Connection Type: Press
• Height: 4-5/8"
• Application: Plumbing
• Max Temperature Fahrenheit: 180°F
• Min Temperature Fahrenheit: 33°F
• Max Working Pressure PSI: 175
• ArmorTek Technology: No
• Body Finish: Epoxy Coated
• Body Pattern: Inline
• Cap And Tether: No
• Disc Material: Rubber
• Elbow Fitting: No
• Hazard Protection Level: Non Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Lead Free: YES
• Max Working Pressure BAR: 12.10
• Meter Type: No Meter
• Min Temperature Celsius: 1.00
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Rubber
• Series: LF007
• Strainer: No
• Entry: Single Top
• Adaptors: Viega Propress
• Body Style: Inline
• Fitting: No
• Operation: Continuous
