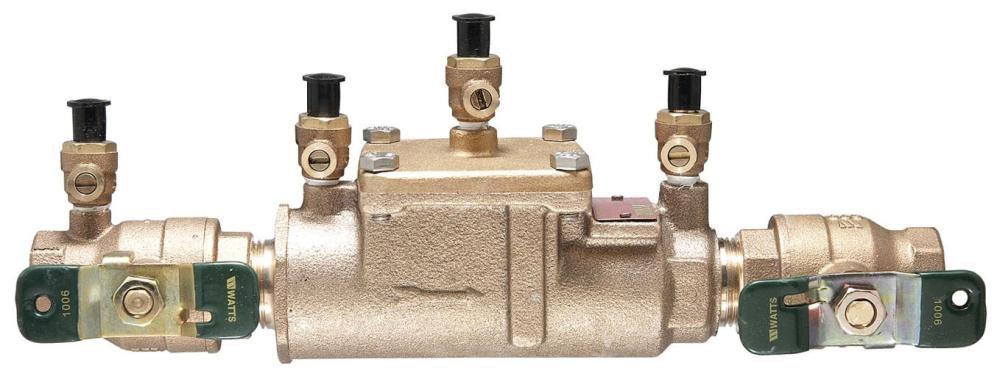

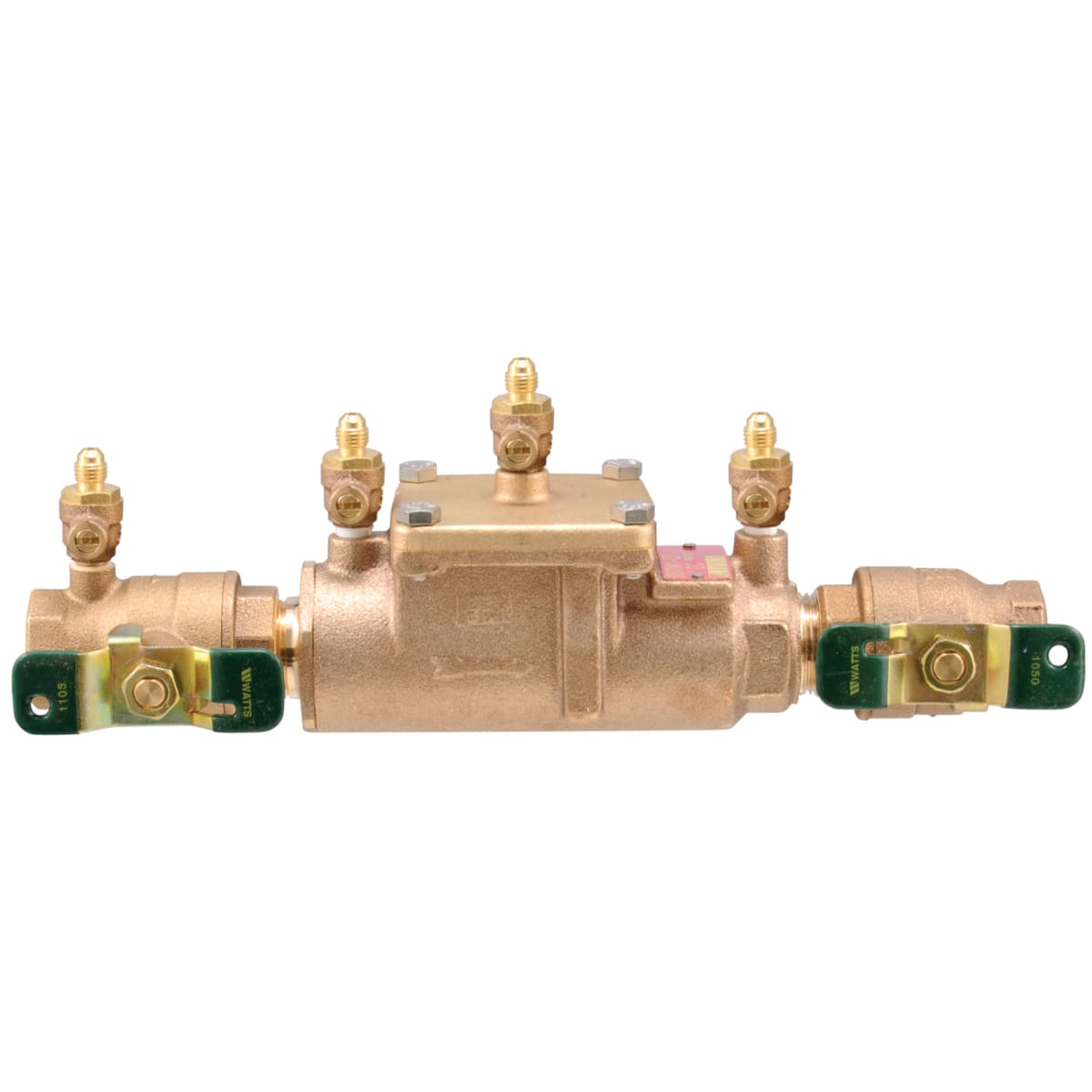

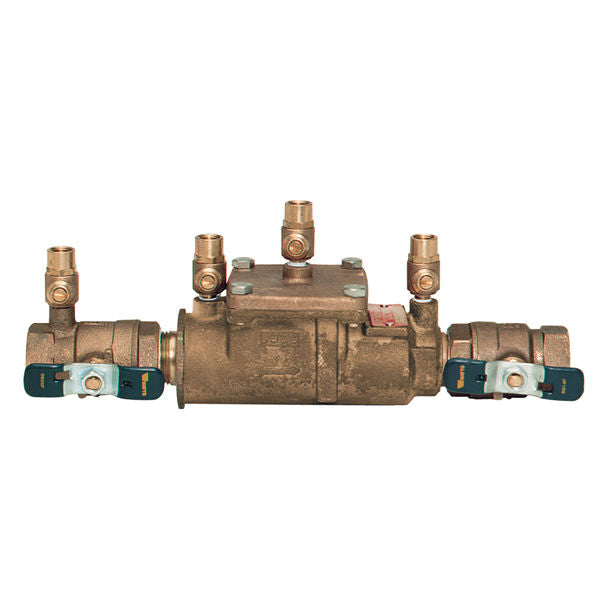

Watts 0063233 Series LF007 1-1/4 in Cast Copper Silicon Alloy FNPT 175 psi Backflow Preventer

Product Description

The Watts Series LF007 1-1/4 in Backflow Preventer, MPN 0063233, is designed to protect potable water supplies from contamination. This double check valve assembly prevents backflow due to backsiphonage or backpressure. It is suitable for continuous pressure piping applications and non-health hazard scenarios.

• Lead-free construction
• Easy maintenance with a single access cover
• Compact design for minimal space usage

Product Highlights

Modular construction allows for simple servicing. It features a quarter-turn ball valve for quick shutoff and four test cocks for effective testing.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: 0063233

Technical Specifications

• Body Material: Cast Copper Silicon Alloy
• Nominal Size: 1-1/4 inches
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 180 degrees Fahrenheit
• Dimensions: 16-3/8 inches in length
• Valve Type: Quarter-Turn Ball Valve
• Series: LF007
• Domestic/Import: Domestic
