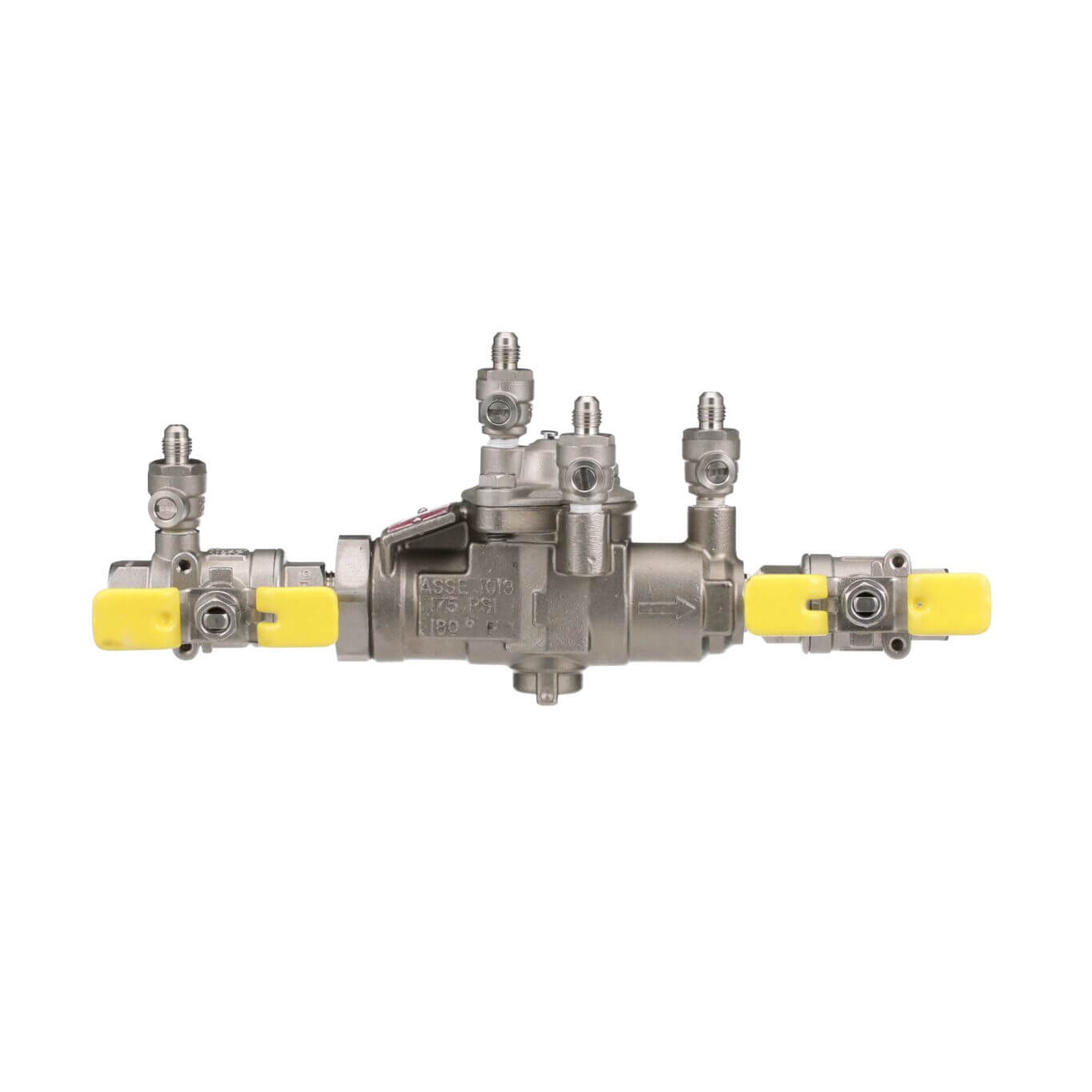

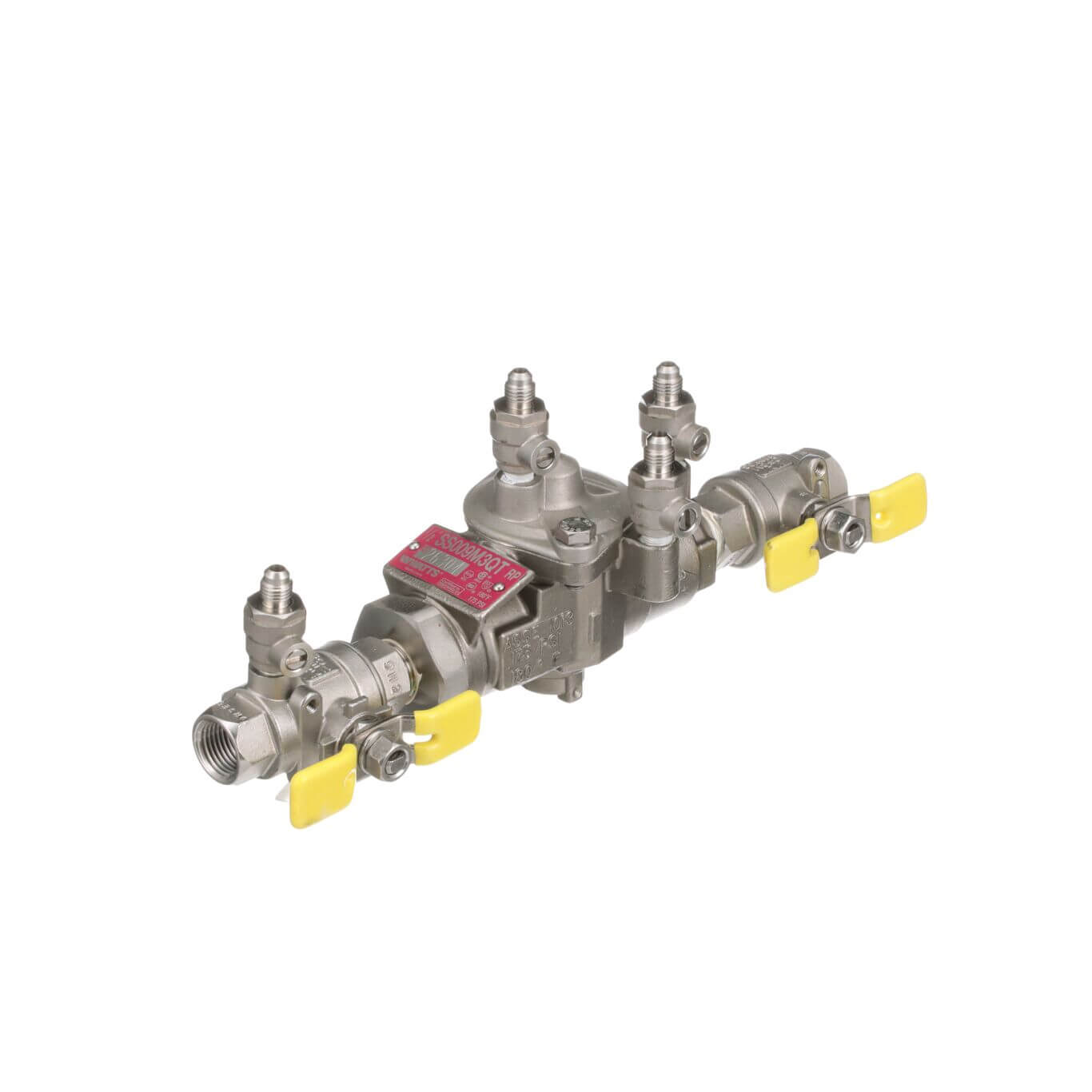

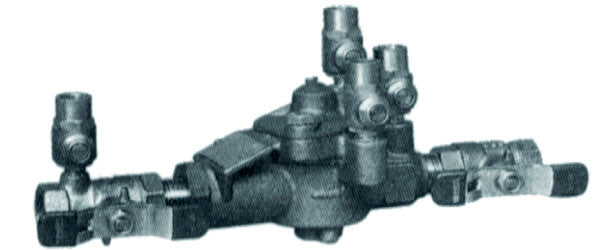

Watts 0062967 SS009, SS009M3-QT Reduced Pressure Zone Assembly, 1/2 in Nominal, NPT End Style, Quarter-Turn Ball Valve

Product Description

The Watts Regulator 0062967 is a stainless steel reduced pressure zone assembly designed to protect potable water supplies from contamination caused by backpressure or backsiphonage. This assembly features a 1/2 inch nominal size and utilizes NPT end connections.

• Investment cast 316 stainless steel for durability
• Top mounted vandal-resistant test cocks for ease of maintenance
• Includes two stainless steel check valves and a hydraulically operated relief valve

Product Highlights

This assembly is suitable for various applications such as industrial plants, medical facilities, and chemical plants.

Product Information

Standard Information

• Brand: Watts Regulator
• Part Number: M1009

Technical Specifications

• Application: Health Hazard
• Body Material: 316 Stainless Steel
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 180 deg F
• Dimensions: 10 in L x 4-5/8 in H
• Nominal Size: 1/2 in
• End Style: NPT
• Includes: (2) Stainless Steel Check Valves, Hydraulically-Operated Relief Valve
• Warranty: 1 Year Limited
