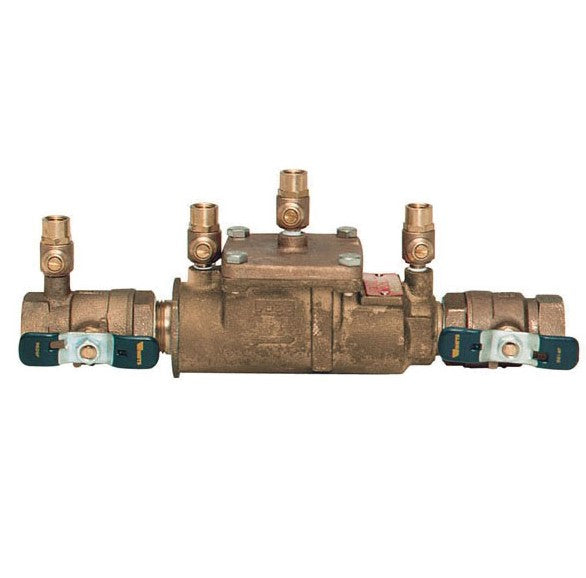

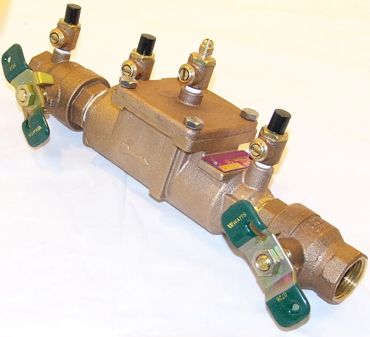

Watts 0062616 007, 007M2-QT Double Check Valve Assembly, 1-1/2 in, Replacement MPN

Product Description

The Watts 0062616 Double Check Valve Assembly is designed for non-health hazard applications. It features a quarter-turn ball valve for efficient operation. The cast bronze body ensures durability and reliability in plumbing systems.

• Modular compact design allows for easy maintenance
• Low pressure drop for improved performance
• Top entry with resilient seated test cocks for functionality

Product Highlights

This product is suitable for cross-connections in plumbing where the backflow of contaminated water needs to be prevented.

Product Information

Standard Information

• Brand: Watts Regulator
• MPN: 0062616

Technical Specifications

• Application: Non-Health Hazard
• Ball Valve Type: Quarter-Turn Ball Valve
• Body Material: Cast Bronze
• Dimensions: 16-3/4 inches L x 4-7/8 inches H
• Includes: (2) Positive Seating Check Modules with Captured Springs and Rubber Seat Discs, (4) Test Cocks
• Mfg Standards/Approvals: ASSE 1019 Type C Listed | CSA Certified | cUPC Listed
• Nominal Size: 1-1/2 inches
• Package Weight: 15.9 lb
• Pressure Rating: 175 psi
• Series: 007
• Temperature Rating: 33 to 180 deg F
• Warranty: 1 Year Limited
