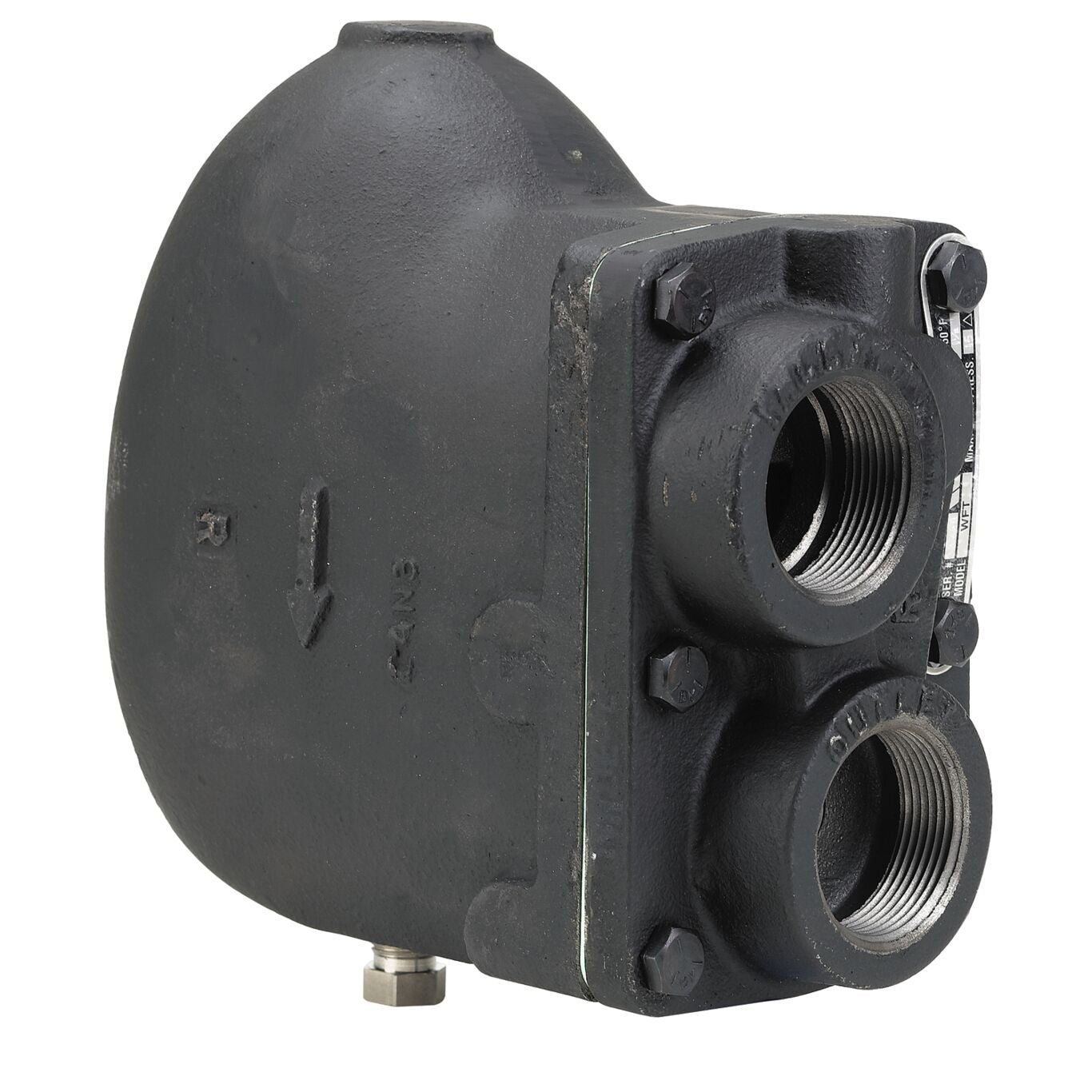

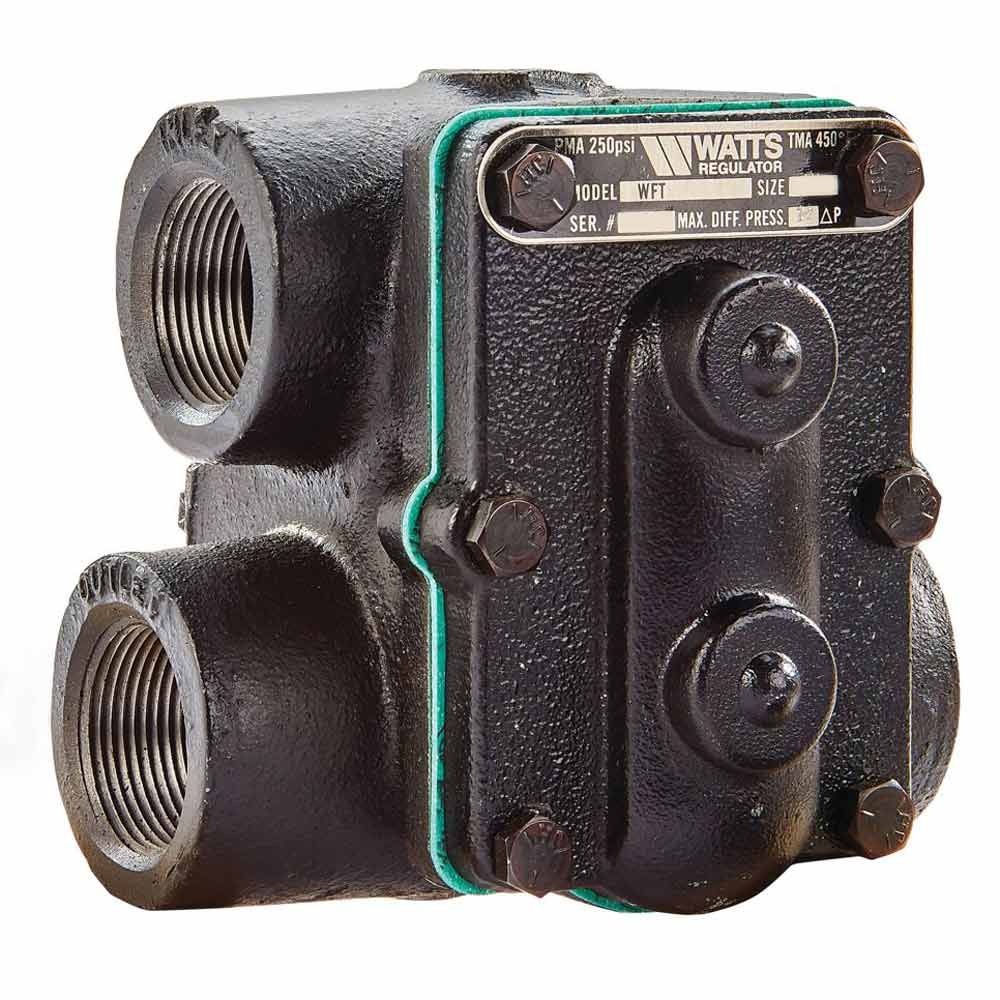

Watts 0037119 WFT-125 Float & Thermostatic Steam Trap 3/4 inches 125 psi

Product Description

The Watts WFT-125 float and thermostatic (F&T) steam trap features a 3/4" trap connection in a same side, H-pattern configuration. Designed for low, medium, and high pressure steam mains, the WFT Series F&T traps provide continuous drainage and come standard with stainless steel internal parts. The cast iron trap has a 125 psi maximum operating pressure and a capacity for 1,190 pounds per hour.

• 3/4" trap connection with same side, H-pattern configuration.
• Continuous drainage for low, medium, and high pressure steam mains.
• Stainless steel internal parts and cast iron body.

Product Highlights

The Watts WFT-125 steam trap is ideal for heat exchange equipment, modulating pressures, and venting air at low pressures.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0037119
• Country of Origin: USA

Technical Specifications

• Brand: Watts
• MPN: 0037119
• Model: WFT-125
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4"
• Steam Trap Mounting: H-Pattern, Same Side
• Max Pressure: 125 psi
• Air Venting: No Vent
• Body Pattern: C-Pattern
• Bottom Tapping: Yes
• Bottom Tapping Size: 1/2 IN
• Buy American Act Compliant: NO
• EAN: 098268535044
• Fastfill Feature: No
• Hydronic Item Type: Steam Trap
• Inlet Connection Size: 3/4 IN
• Inlet Connection Size-Metric: 20 MM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: Not In Scope
• Maximum Operating Temperature-Fahrenheit: 353
• Maximum Steam Pressure-PSI: 125
• Maximum Temperature-Fahrenheit: 250
• Maximum Working Pressure-PSI: 125
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0037119
• Pipe Plug: No
• Series: WFT
• Side Tapping: No
• Strainer: No
• Switch Type: Does Not Apply To Product
• Top Tapping: No
• Vacuum Breaker: No
• UPC: 098268535044
• Inlet Size: 3/4"
• Inlet Type: Female Threaded
• Max. Operating Temp.: 353°F
• Max. Temp.: 250°F
• Mfr. Series: WFT Series
• Outlet Connection Thread Type: Female Threaded
• Outlet Size: 3/4"
• Outlet Type: Female Threaded
• Plug: No
• Item: Steam Trap
• Body Material Grade: Cast Iron
• Body Style: C Pattern
• Material: Cast Iron
