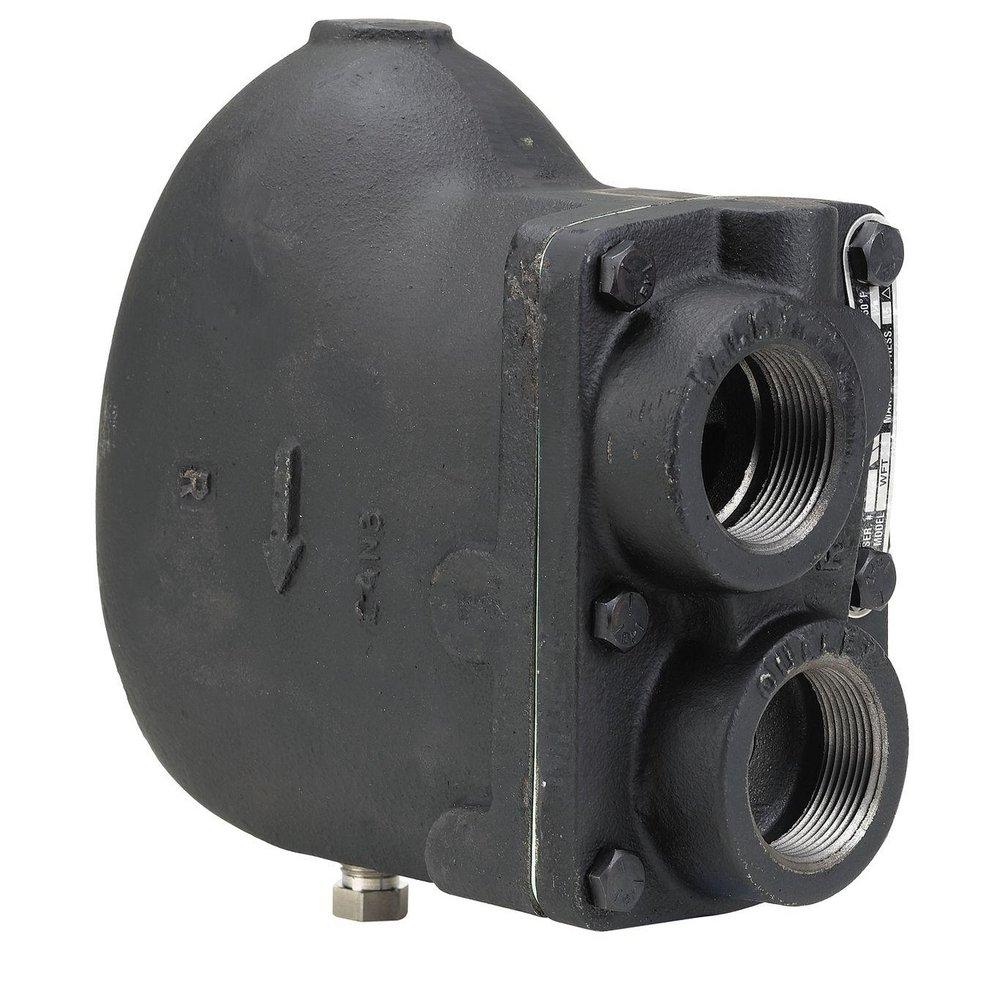

Watts 0037100 Series WFT 3/4 in 353F 125 psi Steam Trap

Product Description

The Watts 0037100 is a steam trap designed to provide reliable air venting and condensate removal in steam systems. This model features a H-pattern design, which allows for effective operation in heating systems.

• All stainless steel components for extended durability
• Universal four-port design for easy installation
• Water hammer resistant for enhanced system reliability

Product Highlights

This steam trap is suitable for heating applications such as unit heaters, heat exchangers, and steam main drips. Its cast iron body ensures durability in demanding environments. The steam trap can be serviced without having to disturb existing piping, making maintenance straightforward.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Series: WFT

Technical Specifications

• MPN: 0037100
• Nominal Size: 3/4 in
• End Style: FNPT
• Dimensions: 5-3/4 in H, 6-1/4 in L
• Body Material: Cast Iron
• Pressure Rating: 125 psi
• Temperature Rating: 353 deg F
• Type: H-Pattern
