Watts 0036109 3/4 STM-F&TTRP-6MG-50 Replacement MPN

Product Description

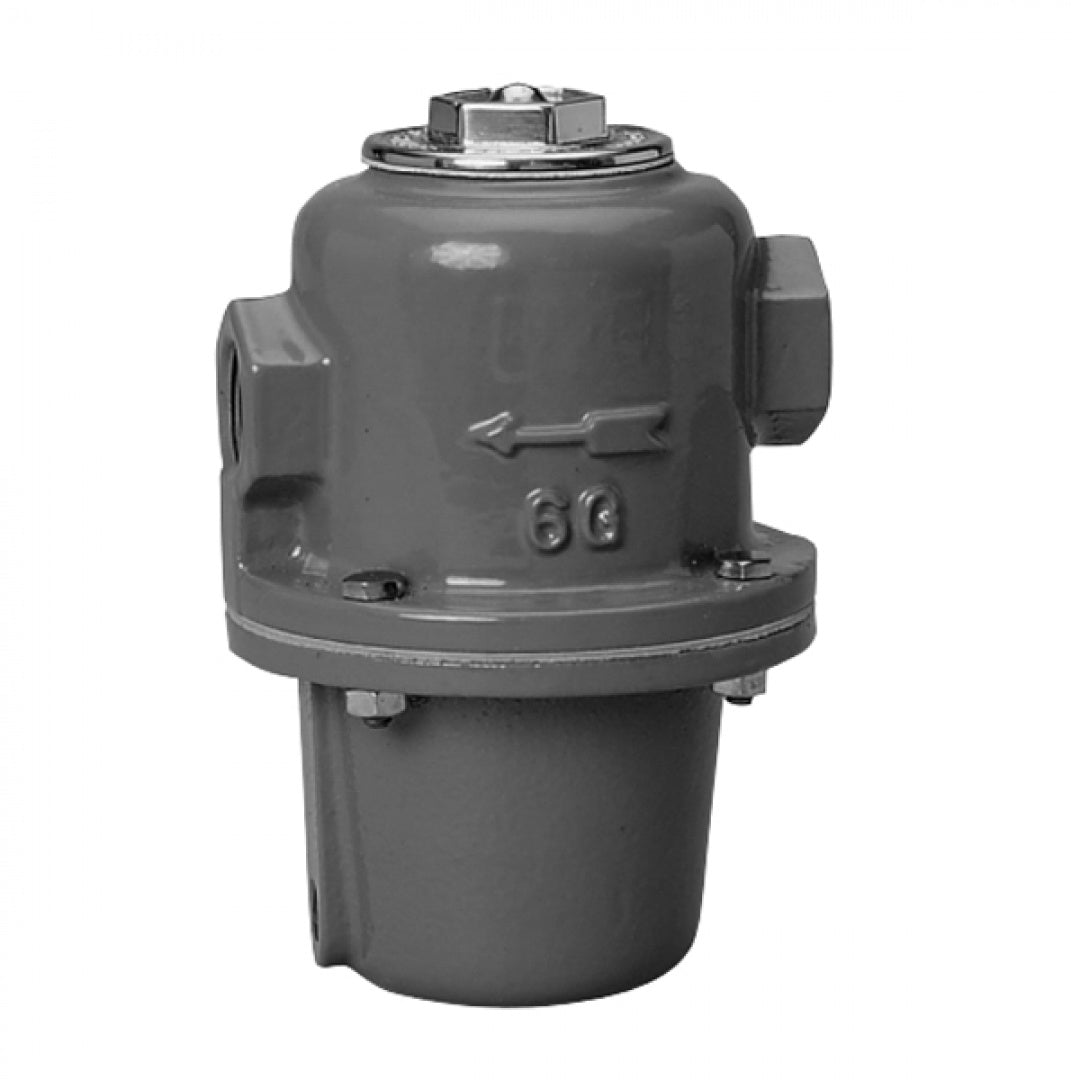

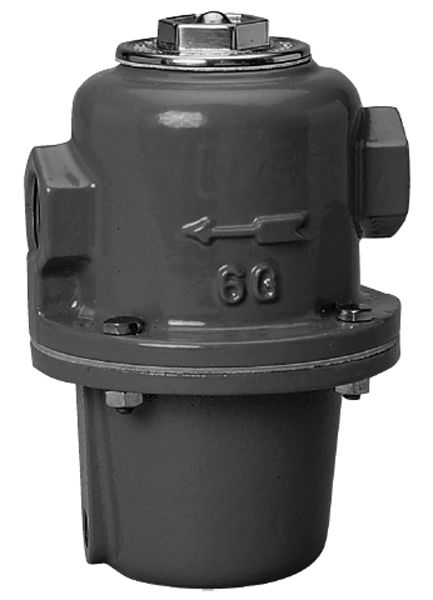

Watts Float and Thermostatic Steam Trap model 0036109 features a three-quarter inch nominal size in-line horizontal connection. This steam trap has a maximum pressure capability of fifty psi. The construction material is cast iron, combined with rust preventive enamel.

• Iron body enhances durability.
• Features a copper sweat tailpiece.
• Straight-through design allows for efficient steam flow.

Product Highlights

This steam trap efficiently drains condensate and air from steam systems. It is suitable for various applications including steam coils and heat exchangers.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Series: MG Series

Technical Specifications

• Material: Cast Iron
• Nominal Size: 3/4 inch
• End Style: FNPT
• Length: 4-1/2 inches
• Pressure Rating: 50 psi
• Max Capacity: 429 mbh
• Applications: Steam Coils, Unit Heaters, Drip Points, Water Heaters, and Jacketed Kettles
