Product Description

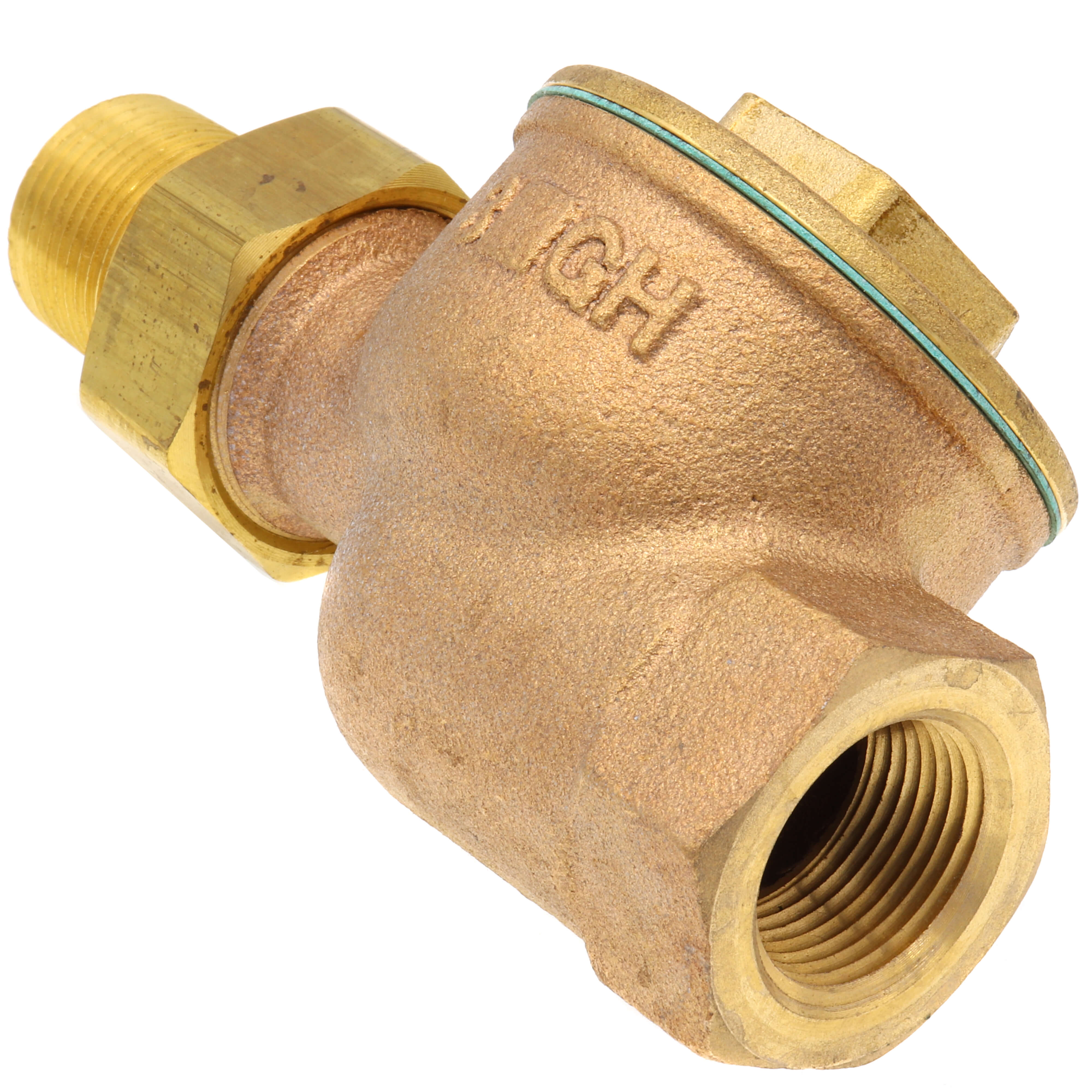

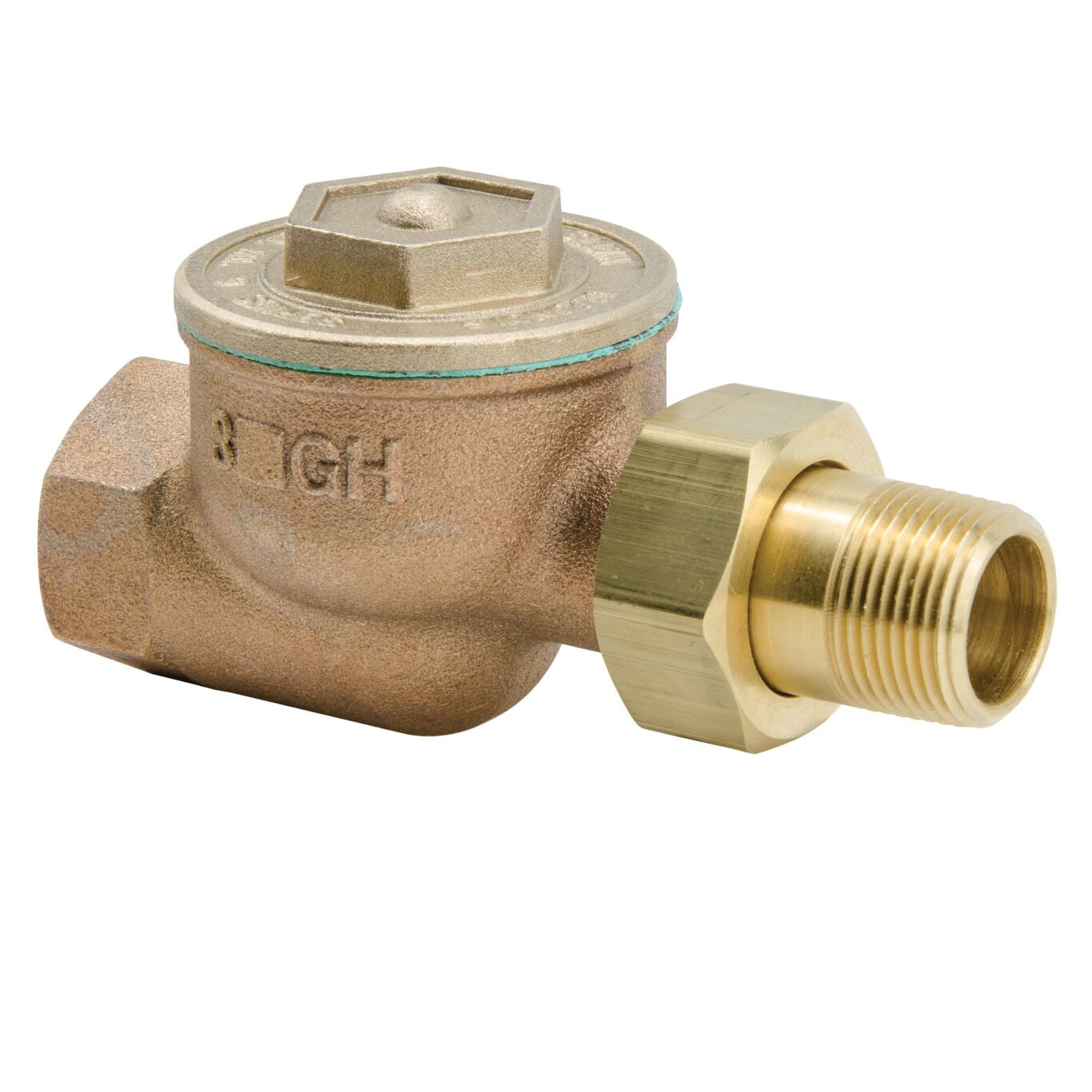

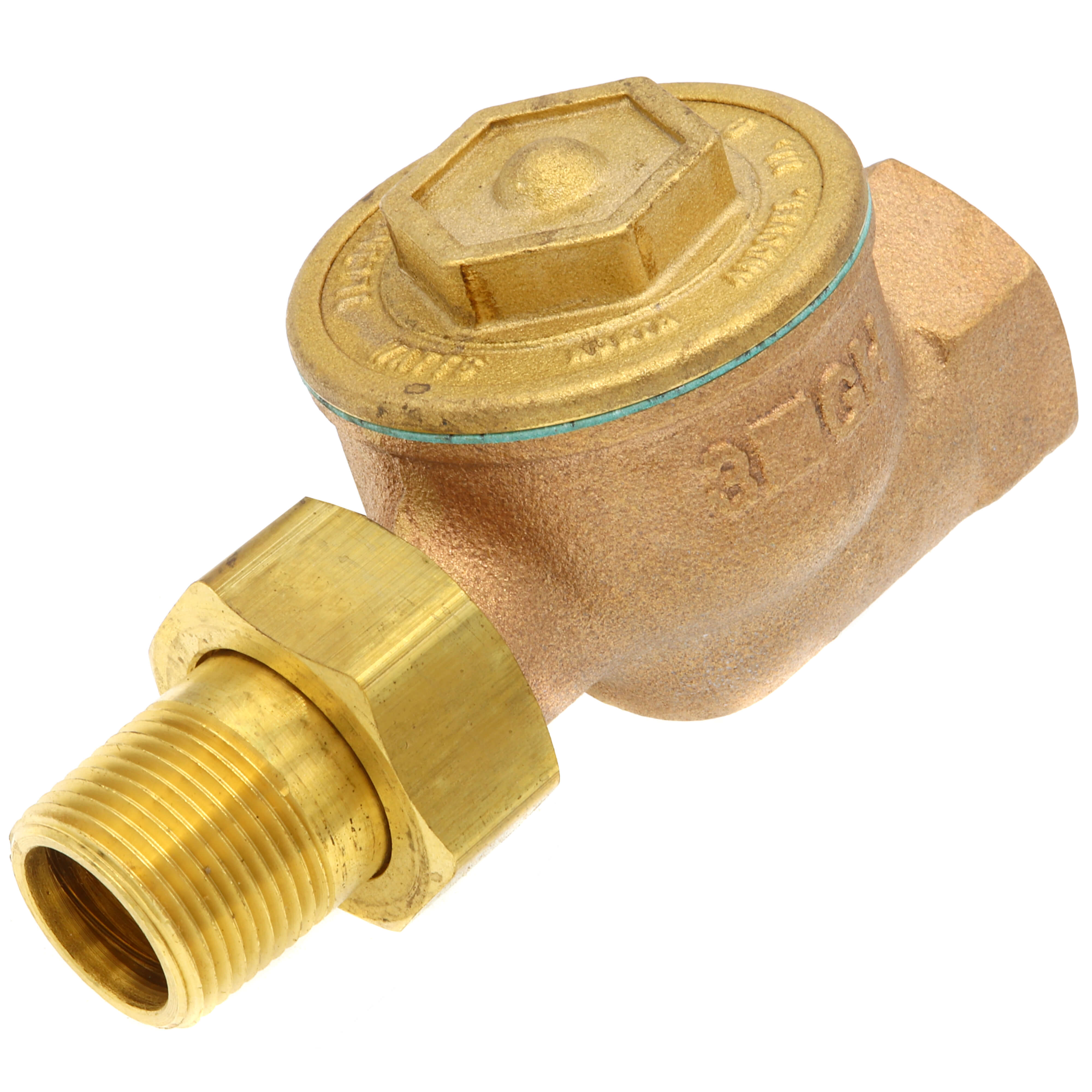

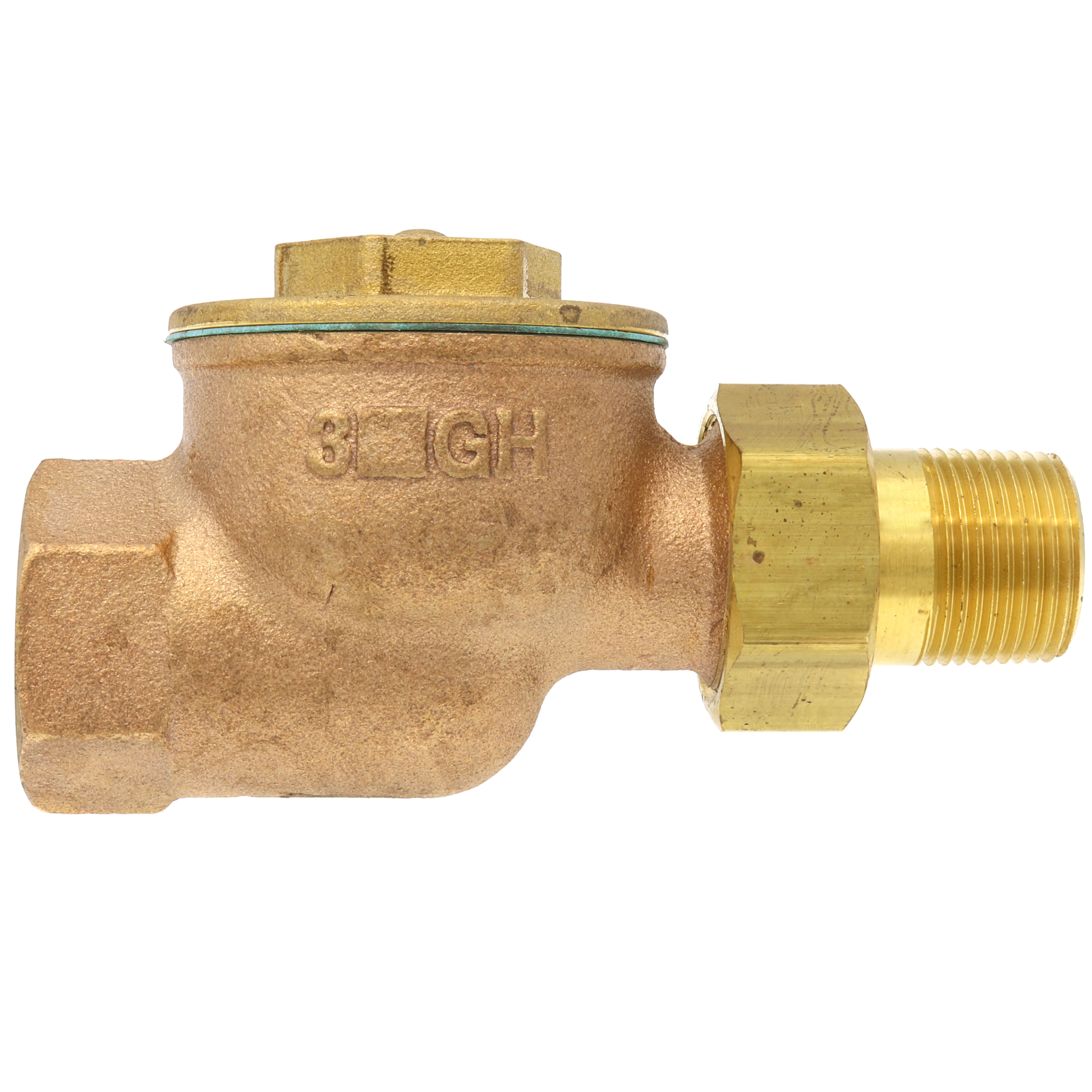

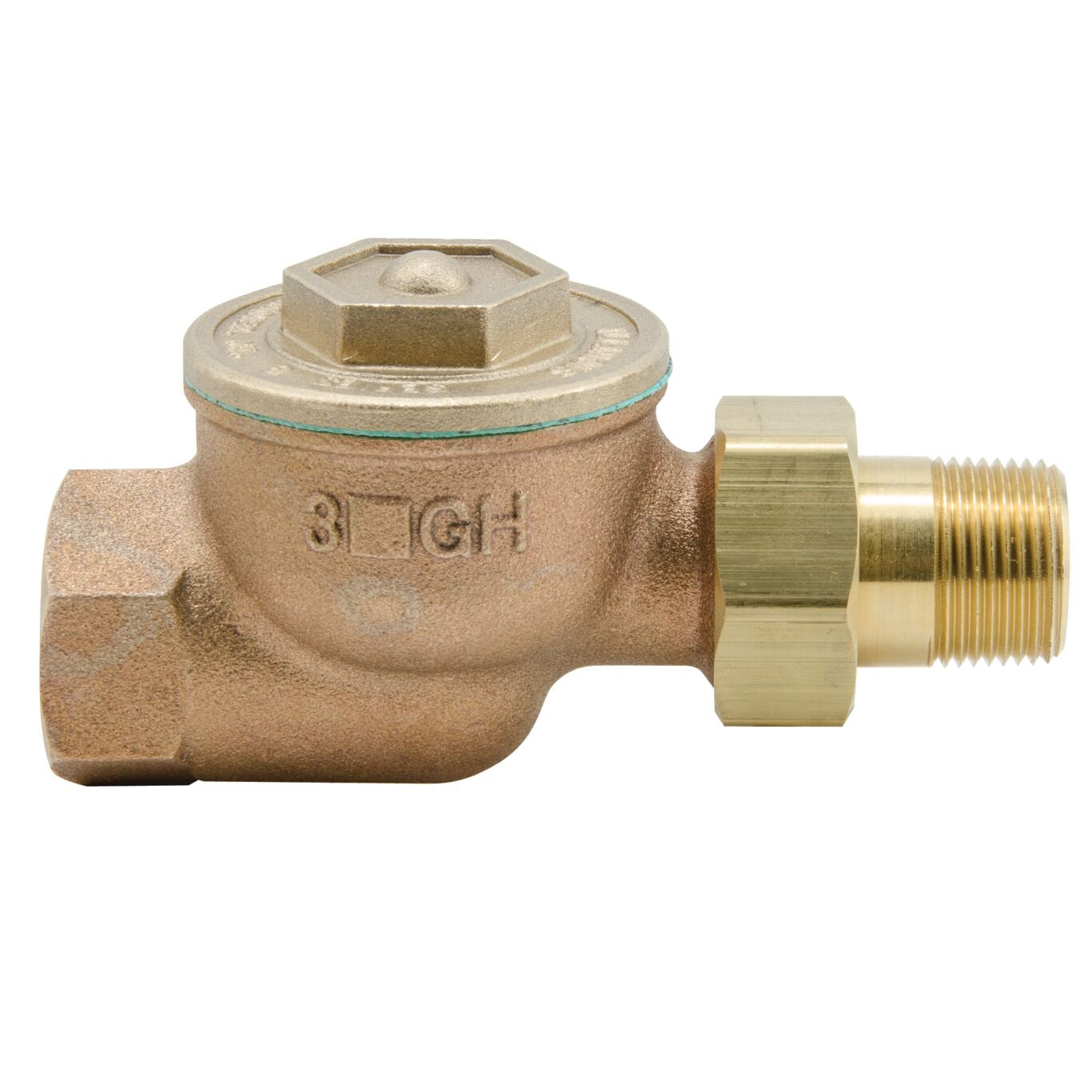

The WATTS 0036047 Series Ghsw 3/4 in. Steam Trap is designed to remove condensate, air, and non-condensable gases from heating systems. It features a hardened stainless steel valve and seat, along with rugged brass construction with a union inlet. The duplex phosphor bronze diaphragm is sensitive within 3° F.
- Hardened stainless steel valve and stainless steel valve seat
- Rugged brass construction with union inlet
- Duplex phosphor bronze diaphragm sensitive within 3° F
- Each trap factory tested
Product Highlights
This steam trap is designed for heating applications, featuring a straight body pattern and threaded connection. It operates within a temperature range of 100°F - 320°F.
Product Information
Standard Information
-
Brand: WATTS
-
Manufacturer Part Number: 0036047
Technical Specifications
-
Size: 3/4"
-
Material: Brass, Bronze, Stainless Steel
-
Application: Heating
-
Body Pattern: Straight
-
Product Type: Steam Trap
-
Connection Type: Threaded
-
Min Pressure (PSI): 70
-
Temperature Range (F): 100°F - 320°F
-
Item: Steam Trap
-
Body Material: Brass
-
Body Material Grade: Brass
-
Body Style: Straight
-
Bottom Tapping: No
-
Buy American Act Compliant: Yes
-
Inlet Connection: Male Threaded
-
Inlet Connection Size: 3/4"
-
Inlet Thread Type: NPT
-
Inlet Type: Male Threaded
-
Max. Operating Pressure: 25 psi
-
Max. Operating Temp.: 267°F
-
Max. Pressure: 25 psi
-
Max. Steam Pressure: 25 psi
-
Max. Temp.: 267°F
-
Mfr. Series: QF
-
Outlet Connection: Female Threaded
-
Outlet Size: 3/4"
-
Outlet Thread Type: NPT
-
Outlet Type: Female Threaded
-
Pipe Plug: No
-
Plug: No
-
Pressure Range: 25 psi to 25 psi
-
Series: GH Series
-
Strainer: No
-
Top Tapping: No
-
Vacuum Breaker: No
-
Inlet Connection Size-Metric: 20 MM
-
Maximum Operating Temperature-Fahrenheit: 267
-
Maximum Pressure-PSI: 25
-
Maximum Steam Pressure-PSI: 25
-
Maximum Temperature-Fahrenheit: 267
-
Maximum Working Pressure-PSI: 25
-
Part Number: 0036047
-
Side Tapping: No
