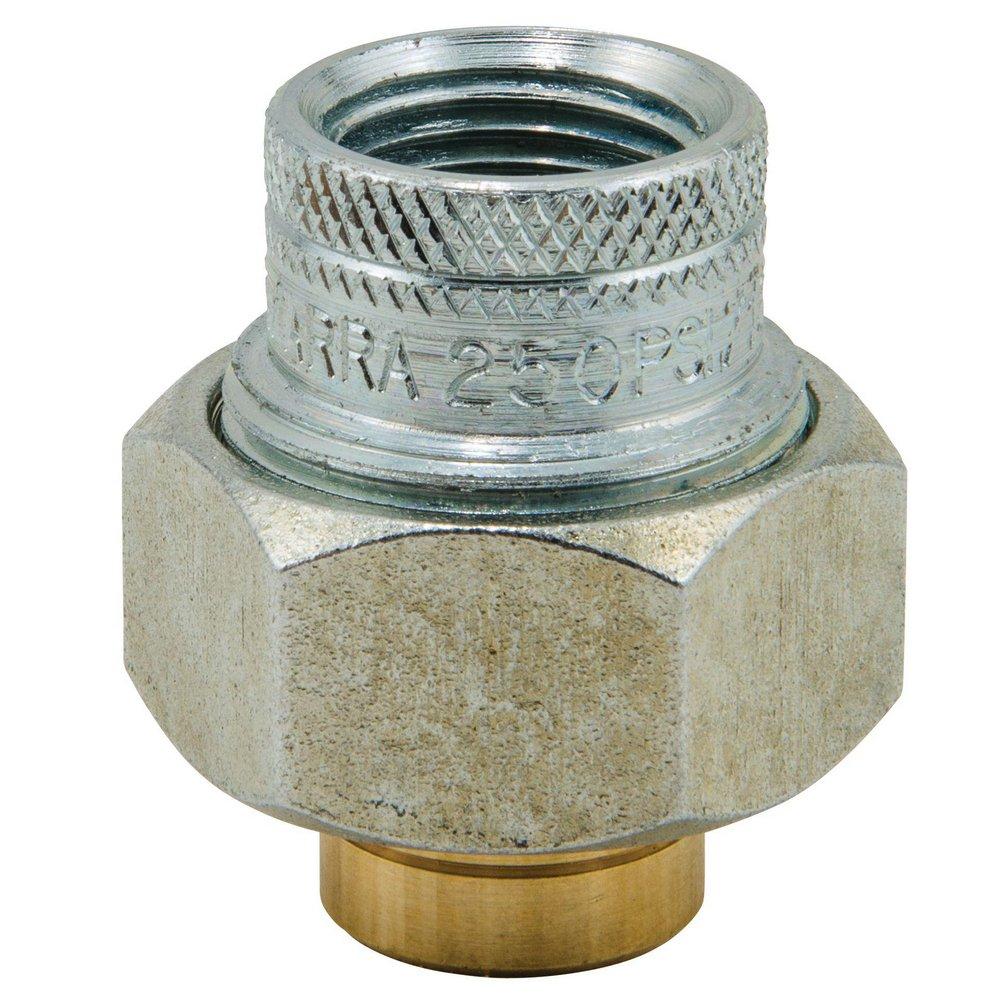

Watts 0009872 Series LF3002 1/2 x 3/8 x 3/4 in. FIP x Socket Dielectric Union

Product Description

The Watts 0009872 Series LF3002 is a dielectric union designed for use in plumbing systems. This union prevents corrosion and electrolysis between pipes made from dissimilar metals. It connects pipes to provided a safe, effective transition between different materials. The connection features female iron pipe threading with reduced solder configurations to minimize leaks.

• Maximum pressure rating of 250 psi
• Rated for temperatures up to 180 degrees F
• Includes a Buna-N gasket for enhanced sealing

Product Highlights

This union is ideal for use in hot water tanks, air conditioning units, and various water piping systems.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: 0009872

Technical Specifications

• Pressure Rating: 250 psi
• Temperature Rating: 180 degrees F
• Material: Brass
• Nominal Size: 3/4 x 1/2 in
• Dimensions: 1-5/8 in Width, 1-7/8 in Length
• End Style: Reduced Solder x FNPT
• Domestic/Import: Domestic
• Series: LF3002
