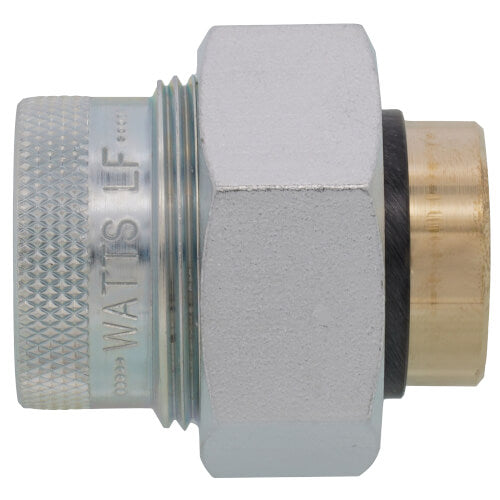

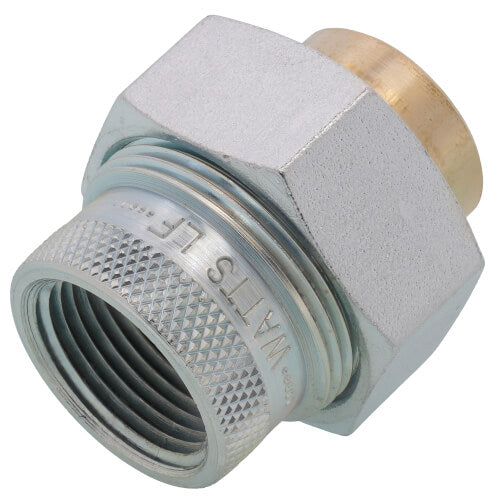

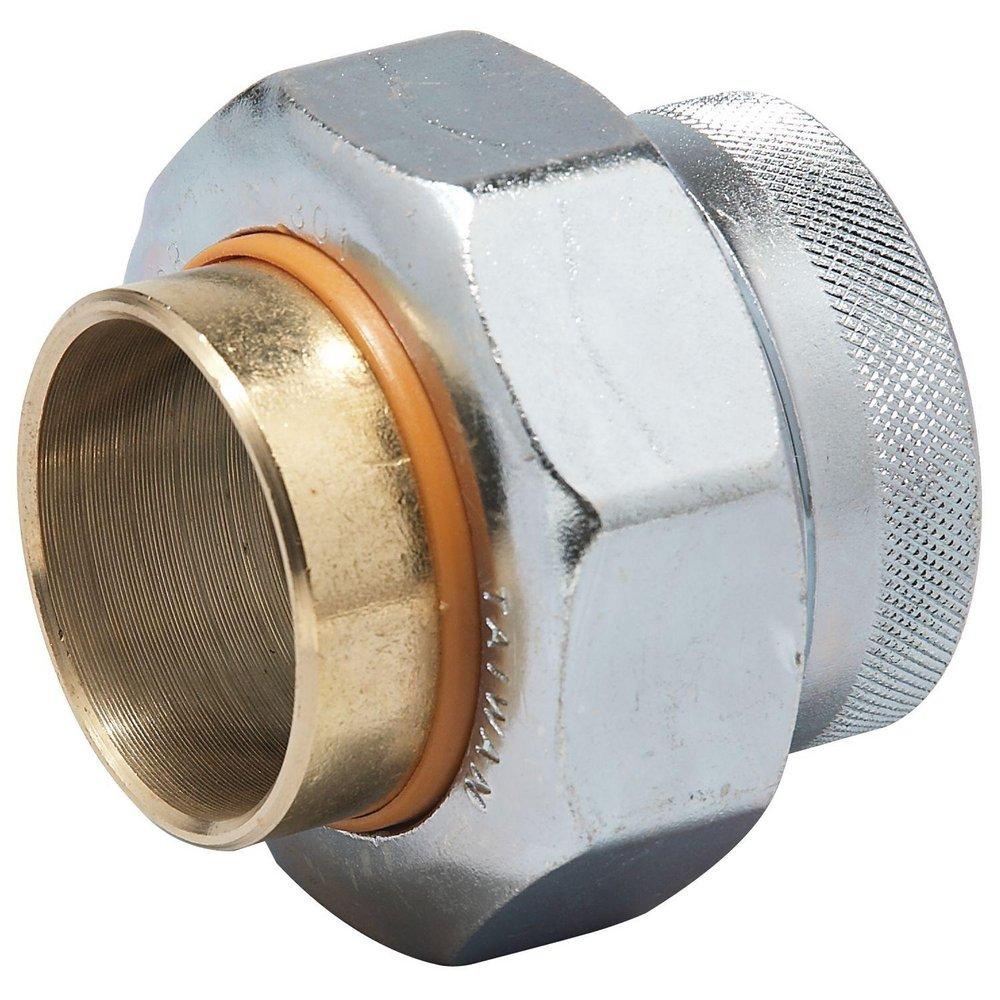

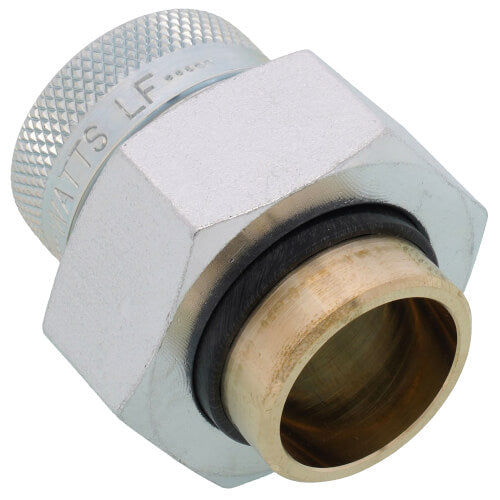

Watts 0009865 Series LF3001A 3/4 In. FIP x Copper Solder 250 PSI Dielectric Union

Product Description

The Watts Series LF3001A 3/4 Inch FIP x Copper Solder 250 PSI Dielectric Union, MPN 0009865, is designed for commercial and residential applications. It prevents corrosion and deterioration in piping systems caused by galvanic and stray currents.

• Maximum pressure is 250 PSI.
• Features a durable Buna-N gasket.
• Meets federal specifications for tensile strength and thread end connections.

Product Highlights

This dielectric union is ideal for hot water storage tanks, steam, gas, and water piping. It is equipped with a female iron pipe thread to solder connection and consists of a union nut, two tailpieces, and a gasket to prevent electrical current.

Product Information

Standard Information

• Brand: Watts
• MPN: 0009865

Technical Specifications

• Pressure Rating: 250 PSI
• Maximum Temperature: 180 degrees F
• Material: Steel, Brass
• Thread Type: Female
• Lead Free: Yes
• Connection Type: FNPT x C
• Weight: 0.415 pounds
• Shipping Dimensions: 1.8 x 1.8 x 1.55 inches
