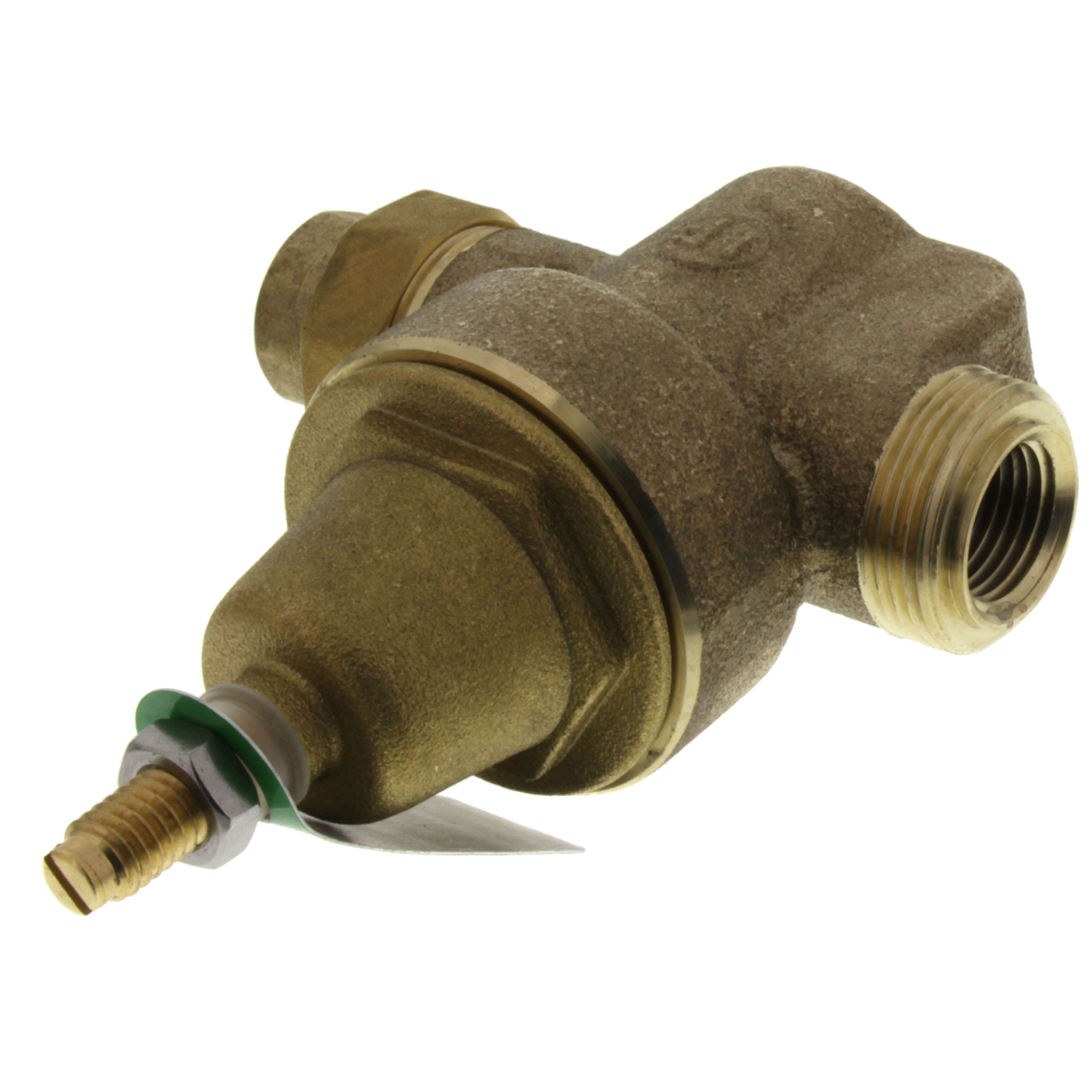

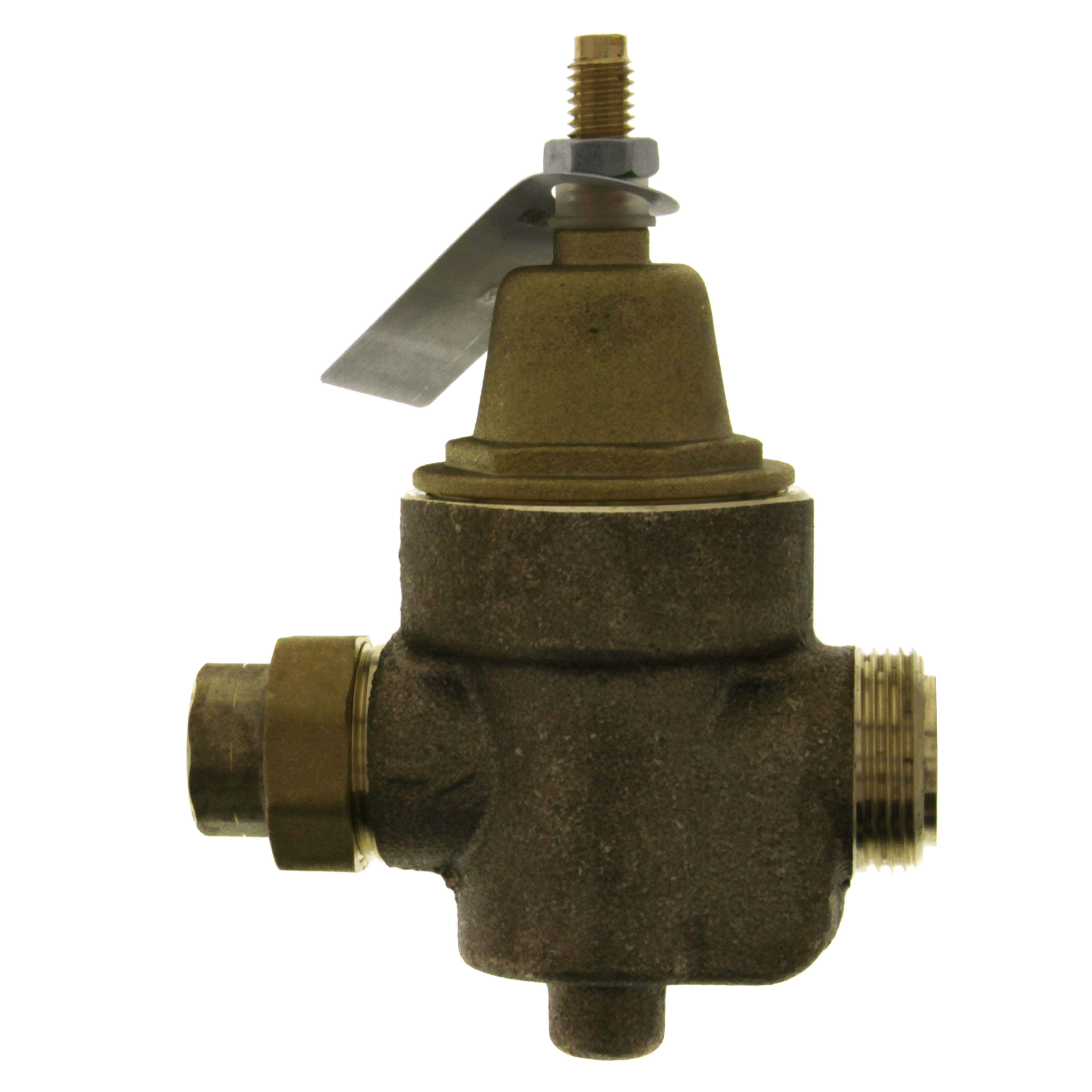

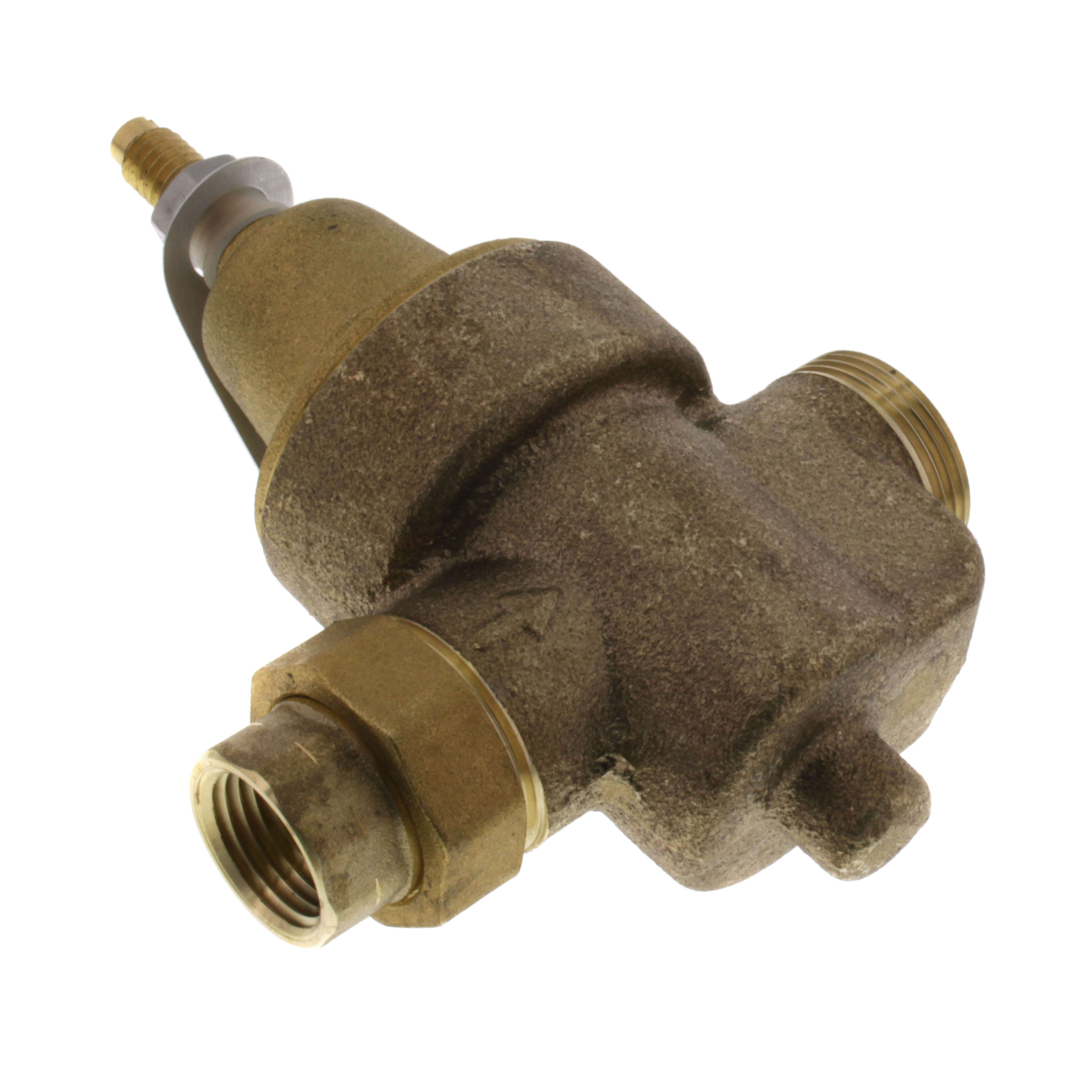

Watts 0009539 1/2 inches Lead Free Water Pressure Reducing Valve

Product Description

The WATTS 0009539 is a 1/2" water pressure reducing valve used in commercial and residential applications to reduce incoming water pressure. It protects plumbing system components and reduces water consumption. It features a lead-free brass body, NPT threaded union female inlet by NPT female outlet connection, and an integral stainless steel strainer. Suitable for up to 400 psi, with an adjustable pressure range of 25 to 75 psi.

• Lead-free brass body construction
• Integral stainless steel strainer
• Adjustable pressure range from 25 to 75 psi

Product Highlights

This valve reduces incoming water pressure to protect plumbing and reduce water consumption. It features a lead-free design and adjustable pressure range.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0009539
• Country of Origin: UNITED STATES

Technical Specifications

• Type: Water Pressure Reducing Valve
• Material: Lead Free Copper Silicon Alloy
• Pressure_Range: 25 to 75
• Connection_Size: 1/2"
• Connection_Type: Union Joint
• Size: 1/2"
• Lead Free: Yes
• Inlet Type: Union FNPT
• Outlet Type: FNPT
• Max Temp (F): 180°F
• Min Temp (F): 33°F
• Pressure Set Point: 50 psi
• Adjustable Reduced Pressure Range: 25 to 75
• Body Material: Lead Free Copper Silicon Alloy
• Brand: Watts
• Disc Material: Reinforced EPDM
• Inlet Connection Size: 1/2 IN
• Inlet Connection Type: Union Joint
• Inlet Thread Type: NPT
• Maximum Operating Temperature-Fahrenheit: 180
• Maximum Working Pressure-PSI: 400
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0009539
• Series: LFN55B-M1
• Standard Reduced Pressure Setting-PSI: 50
• Strainer: Yes
• Strainer Material: Stainless Steel
• Thermal Expansion Bypass: Yes
• Trim Material: Bronze
• Valve Style: Standard
• Nominal Size: 1/2 in
• End Style: NPT Union Inlet x FNPT Outlet
• Temperature Rating: 33 to 180 deg F
• Media: Water
• Top to Inlet Center: 8-7/8 in
• Softgoods Material: Thermoplastic Seat/Reinforced EPDM Diaphragm
• Domestic/Import: Domestic
• Pressure Range PSIG: 25-75 psi
• Body Type: Brass Body Construction
• Conn. Size: 1/2"
• Model #: LFN55BM1-U 1/2 IN
