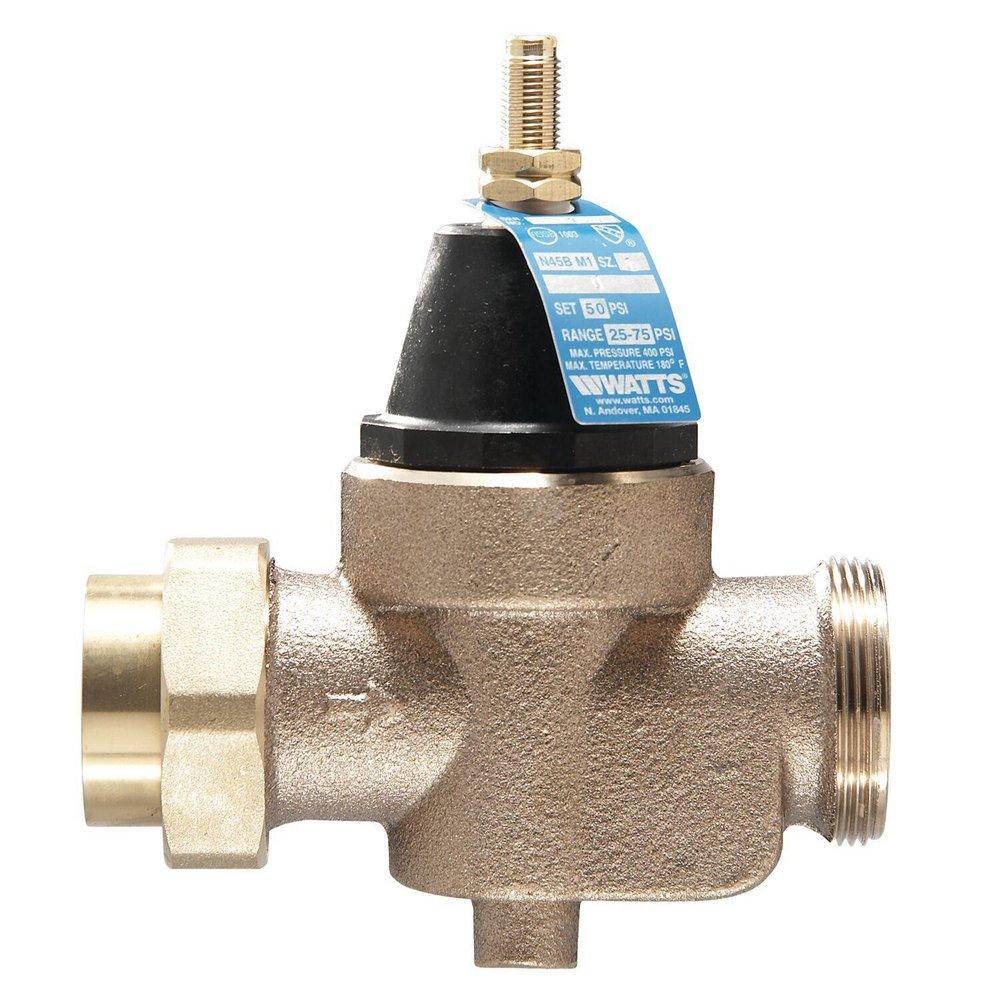

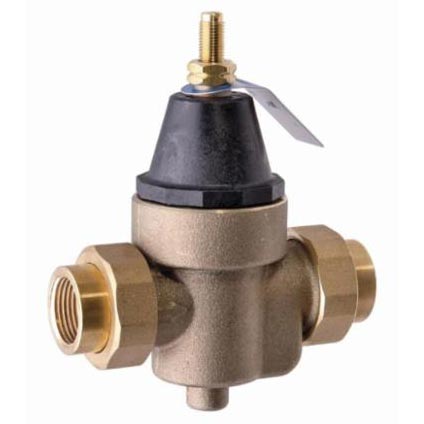

Watts 0009490 Series LFN45B-M1 1 in. Cast Copper Silicon Alloy NPT Union x FNPT Pressure Reducing Valve

Product Description

The Watts 0009490 Series LFN45B-M1 is a pressure reducing valve designed to manage water pressure in plumbing systems. This valve ensures a consistent pressure output, protecting plumbing fixtures and reducing water usage. It is ideal for both commercial and residential applications.

• NPT threaded union inlet and NPT female outlet
• Integral stainless steel strainer removable for cleaning
• Adjustable pressure range of 25 to 75 psi

Product Highlights

This valve features a lead-free cast copper silicon alloy construction, ensuring safety and durability. The thermoplastic seat and cage provide reliable performance.

Product Information

Standard Information

• Application: Commercial and Residential
• Body Material: Cast Copper Silicon Alloy

Technical Specifications

• Nominal Size: 1 in
• Pressure Range: 25 to 75 psi
• Temperature Rating: 33 to 180 degrees F
• Inlet to Outlet Length: 4-1/8 in
• Package Height: 7.38 in
• Package Length: 2.44 in
• Package Width: 5.63 in
• Package Weight: 2.24 lb
