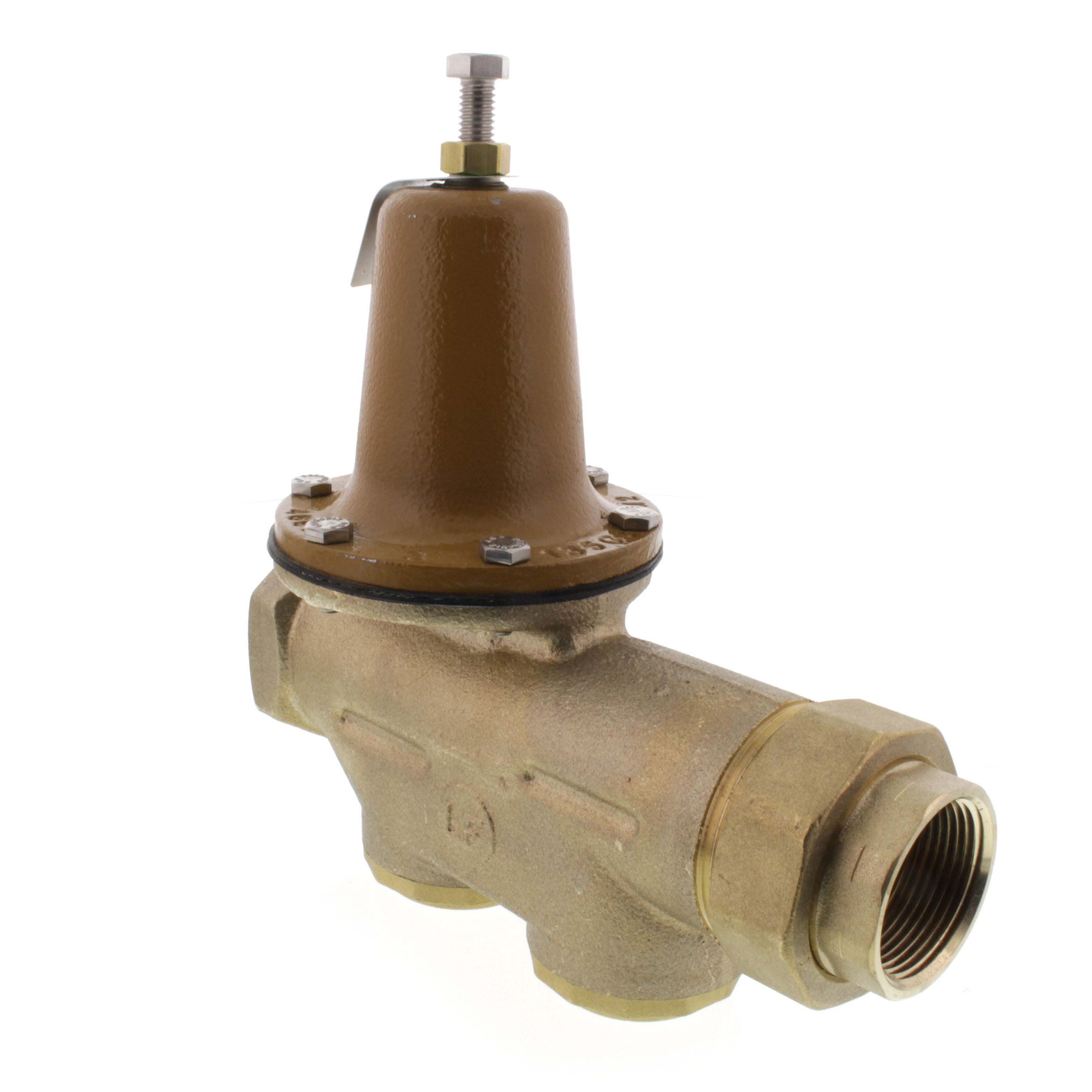

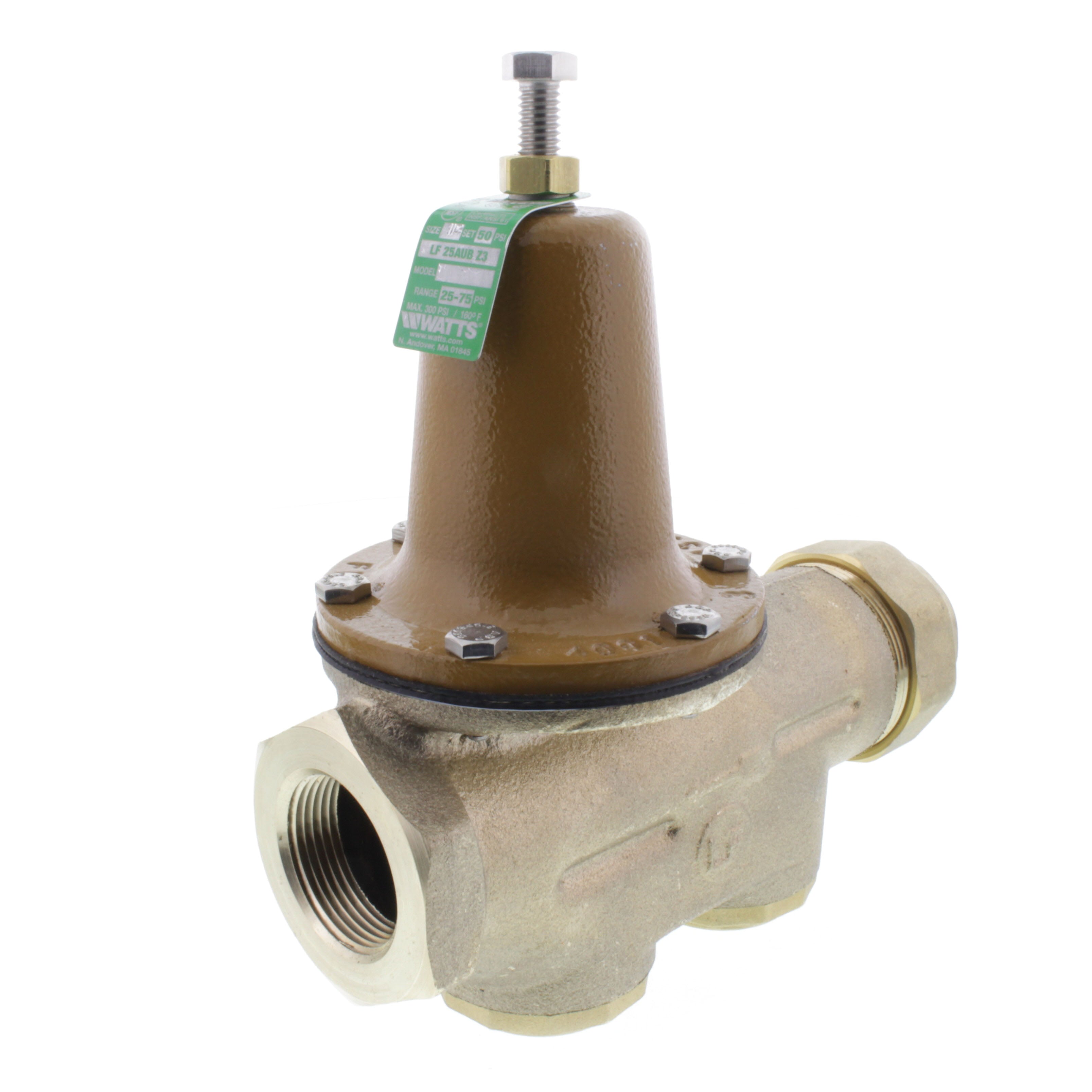

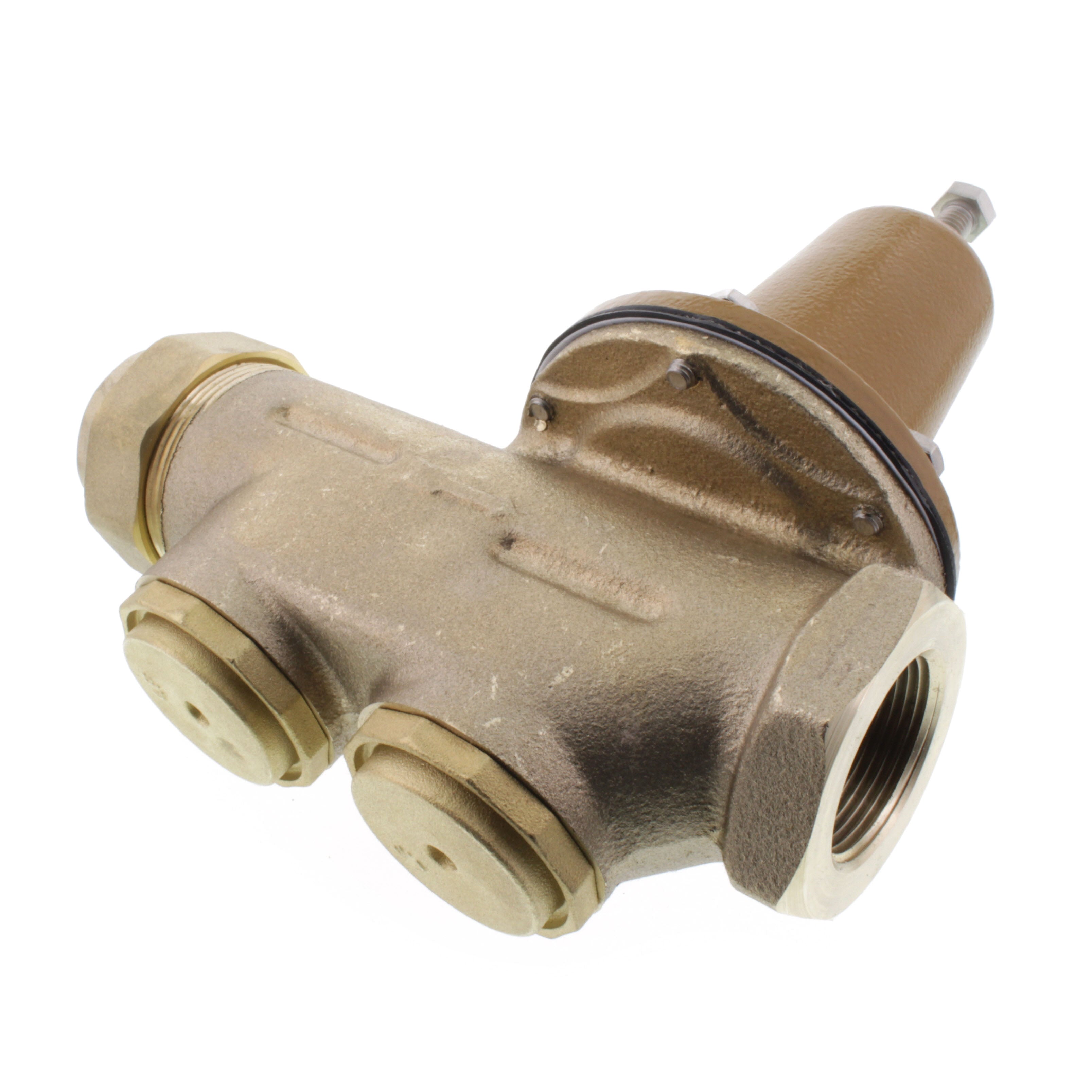

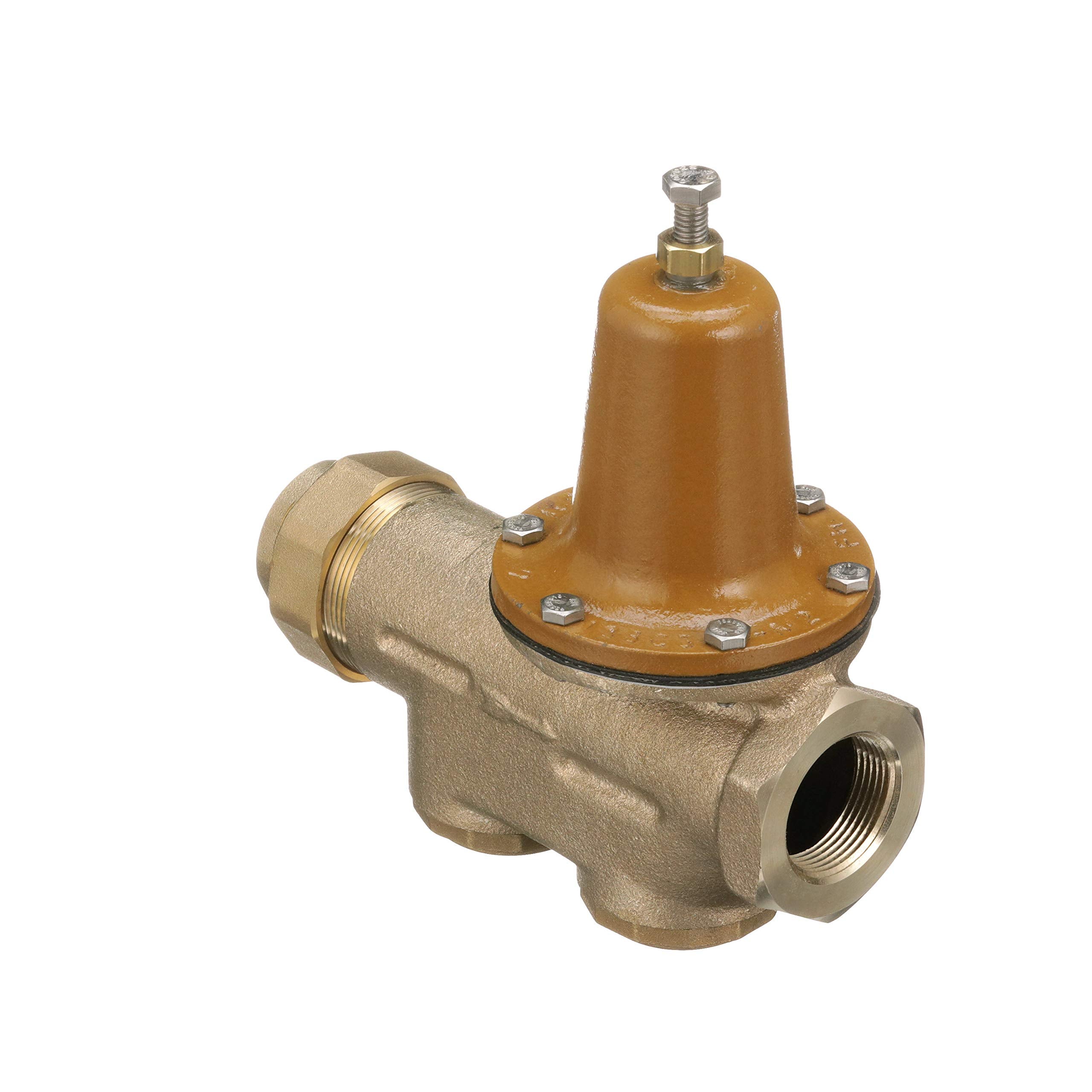

Watts 0009392 LF25AUB-Z3 Water Pressure Reducing Valve 1-1/4 Inch

Product Description

The WATTS 0009392 LF25AUB-Z3 water pressure reducing valve is designed to reduce incoming water pressure in commercial, industrial, and residential applications. It protects plumbing systems and reduces water consumption. Features an integral stainless steel strainer removable for cleaning, a sealed spring cage with stainless steel cage screws, and a replaceable seat module.

• Integral Stainless Steel Strainer Removable for Cleaning
• Sealed Spring Cage with Stainless Steel Cage Screws
• Replaceable Seat Module

Product Highlights

This lead-free valve has a pressure rating of 300 PSI and a temperature rating of 33 to 160 Deg F.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0009392
• Country of Origin: Domestic

Technical Specifications

• Actuation Type: Diaphragm, Adjusting Cage Screw
• Applicable Standard: ASSE 1003, ANSI A112.26.2, CSA B356, IAPMO, NSF/ANSI 61, MIL-V-18146B Type I, UPC
• Application: Commercial, Industrial, Residential, Plumbing System
• Body Material: Copper Silicon Alloy
• Downstream Pressure Range: 25 to 75 PSI
• End Connection: Female Threaded Union x Female Threaded
• End To End Distance: 8-3/4 Inch
• Exclusions: Gauge
• Inclusions Features: Z3 Sealed Spring Cage and Stainless Steel Corrosion Resistant Adjusting Cage Screw
• Manufacturer Part Number: 0009392
• Manufacturer Part Number Additional: LF25AUB-Z3-1-1/4
• Nominal Size: 1-1/4 Inch x 1-1/4 Inch
• Pressure Rating: 300 PSI
• Seat Material: Stainless Steel
• Series: LF25AUB-Z3
• Standard Factory Setting: 50 PSI
• Strainer Supplied: Yes
• Temperature Rating: 33 to 160 Deg F
• Type: Standard
• Trim Material: Stainless Steel
• Disc Material: EPDM
• Media: Water
• Connection Size: 1-1/4 in
• Connection Type: Female Union x FNPT
