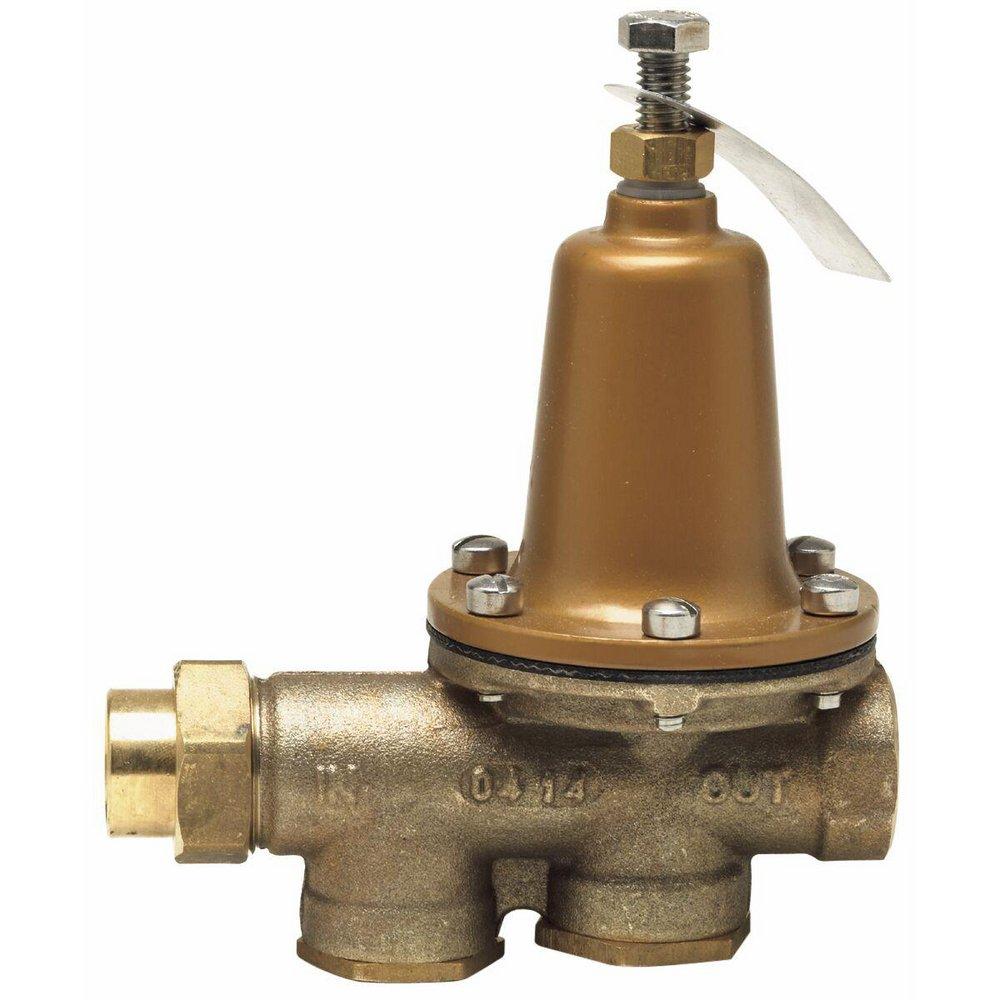

Watts 0009279 Series LF25AUB-Z3 3/4 in 300 psi Cast Copper Silicon Alloy Union FNPT x FNPT Pressure Reducing Valve

Product Description

The Watts 0009279 Series LF25AUB-Z3 is a pressure reducing valve designed to control water pressure in plumbing systems. This valve features a copper silicon alloy body and is suitable for both commercial and residential applications. It reduces incoming water pressure to protect plumbing system components and minimize water consumption.

• Bypass feature controls thermal expansion pressure
• Sealed spring cage with stainless steel screws
• Integral stainless steel strainer removable for cleaning

Product Highlights

Effective in reducing water pressure from seventy-five to one hundred twenty-five psi. Simple maintenance with a replaceable seat module. Designed for high temperature resistance with a diaphragm built for hot water.

Product Information

Standard Information

• Application: Commercial and Residential
• Body Material: Copper Silicon Alloy

Technical Specifications

• Dimensions: 7 in H
• Nominal Size: 3/4 in
• Pressure Range: 75 to 125 psi
• Temperature Rating: 33 to 160 deg F
• Trim Material: EPDM Disc
• Warranty: Limited
• Mfg Standards/Approvals: ANSI A112.26.2|ASSE 1003|CSA B356|NSF Approved|IAPMO Listed
