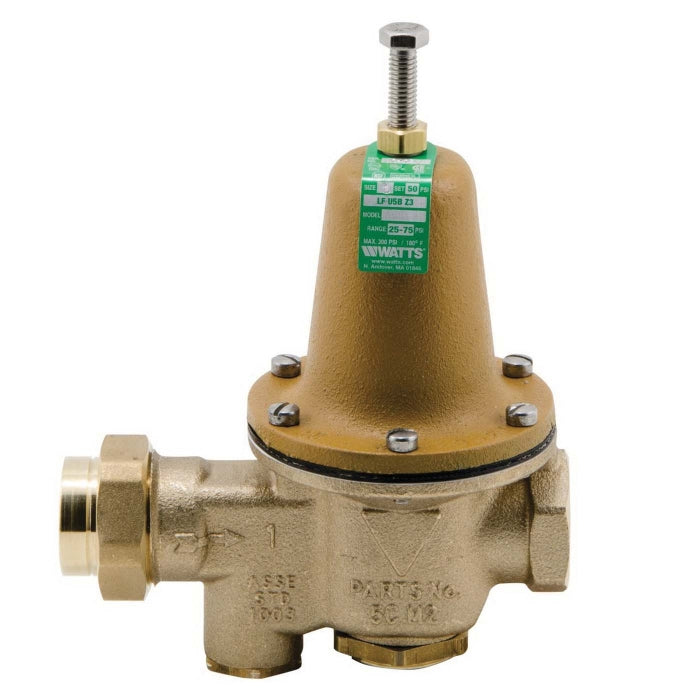

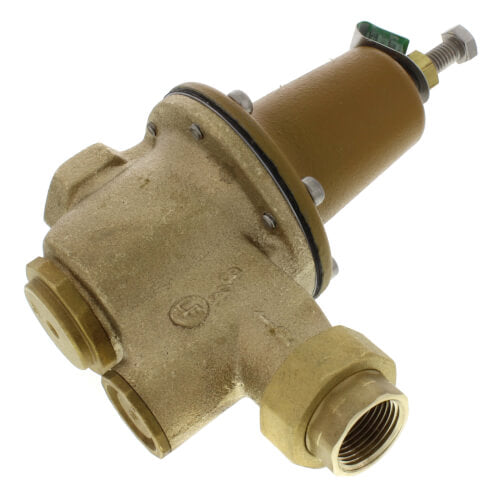

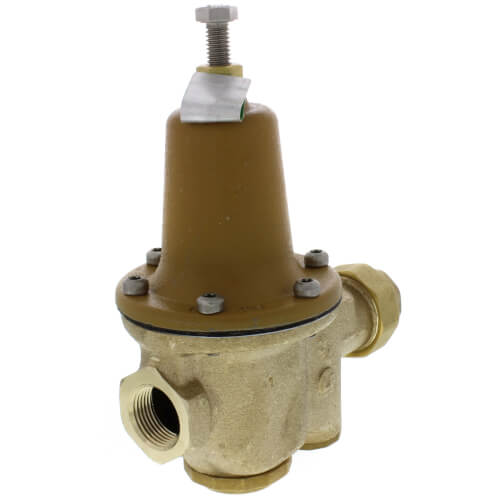

Watts 0009118 LFU5B-Z3 Pressure Reducing Valve 3/4 Inch Lead-Free

Product Description

The Watts LFU5B-Z3 3/4 inch Pressure Reducing Valve is engineered for reliability and performance. Ideal for residential, commercial, and industrial settings, it ensures protection against excessive water pressure and consumption.

• Lead-free construction for safe water drinking
• Adjustable pressure from 25 to 75 psi
• Integral stainless steel strainer and replaceable seat module

Product Highlights

This valve offers a maximum working pressure of 300 psi and comes with a built-in thermal expansion bypass. Suitable for high-temperature environments, the LFU5B-Z3 withstands temperatures from 33 to 160 degrees Fahrenheit.

Product Information

Standard Information

• Material: Cast Copper Silicon Alloy
• Connection Type: FNPT x FNPT

Technical Specifications

• Dimension: 6-1/4 inches L x 3-1/2 inches W x 6-7/8 inches H
• Pressure Rating: 25 - 75 psi
• Temperature Rating: 33 - 160 degrees F
• Standards/Certifications: ASSE 1003, ANSI A112.26.2, CSA B356, UPC approved, ANSI/NSF 61G certified, IAPMO listed
