Product Description

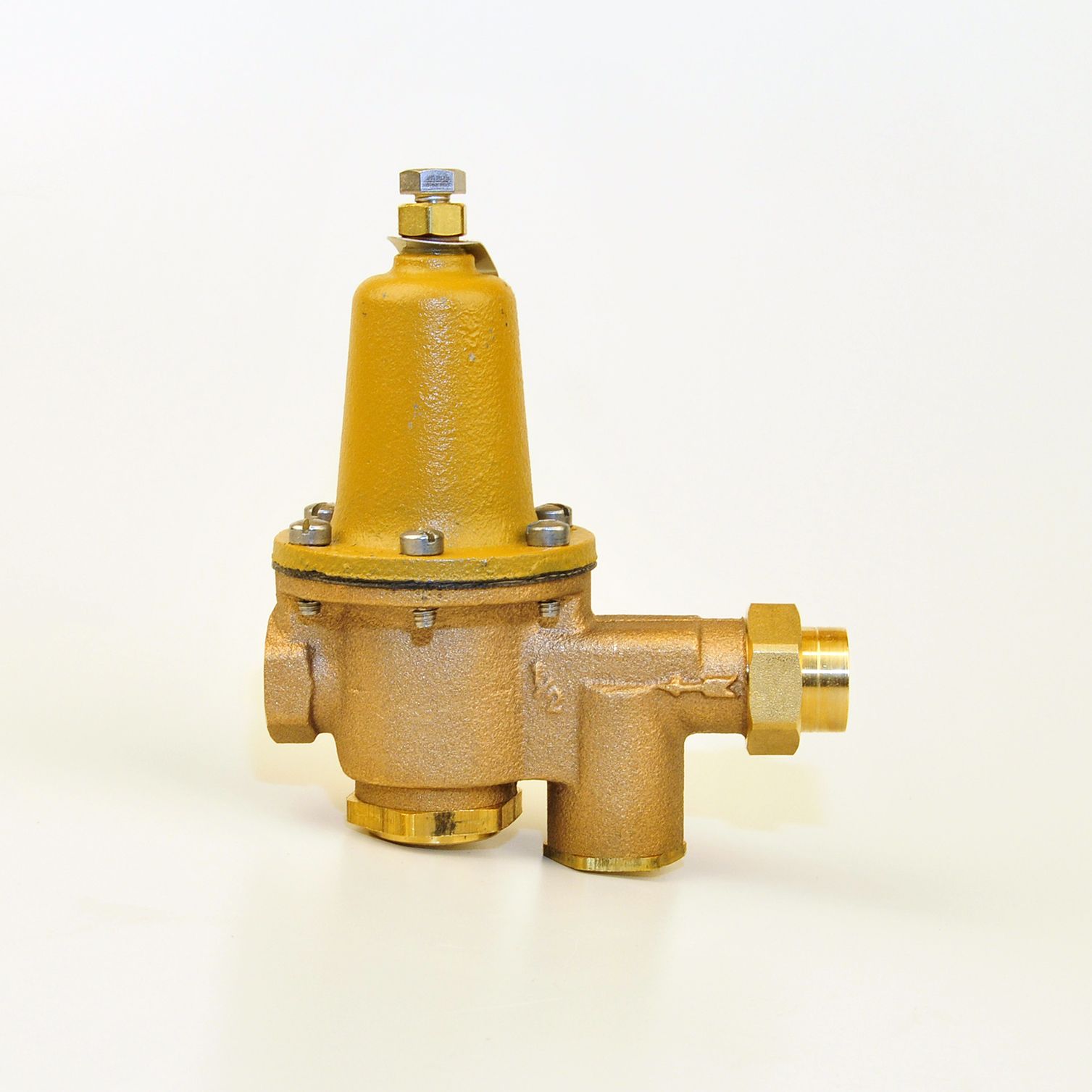

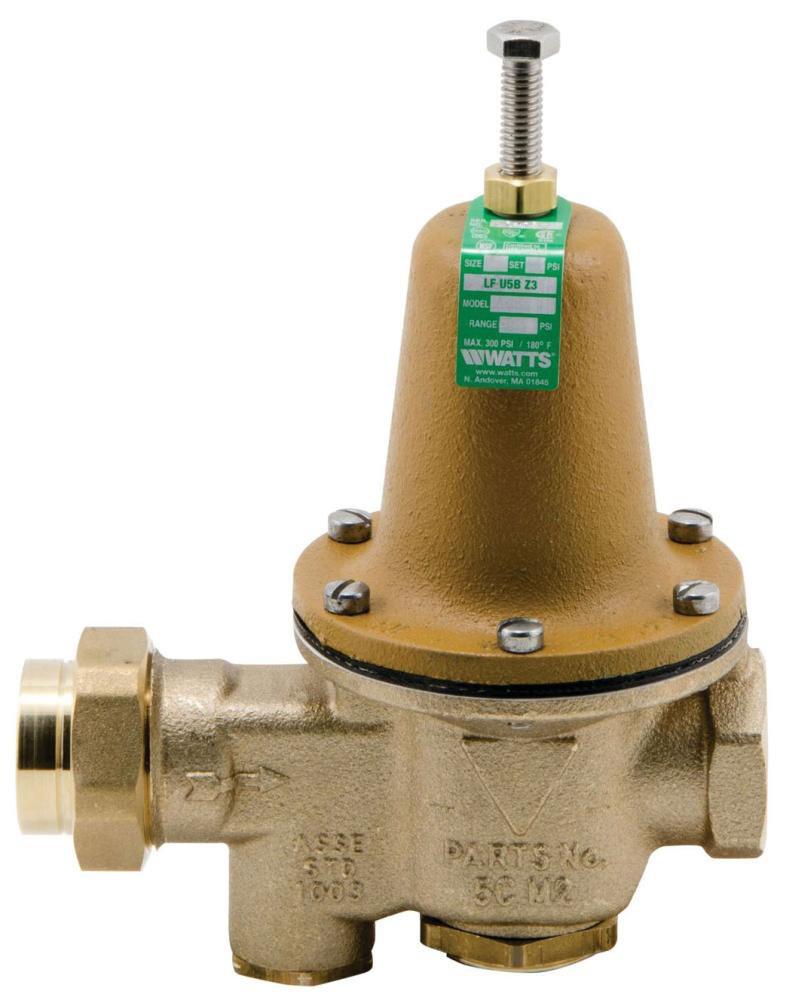

The Watts 0009108 Series LFU5B-Z3 Pressure Reducing Valve is engineered for residential, commercial, and industrial applications. This valve minimizes incoming water pressure for the longevity of plumbing system components and minimizes water consumption. Constructed from lead-free cast copper silicon alloy, it includes an integral stainless steel strainer, a replaceable seat module, and a high-temperature resistant reinforced diaphragm suitable for hot water. This model has a built-in bypass feature for thermal expansion control and is serviceable inline without special tools. The standard construction includes a Z3 sealed spring cage and stainless steel corrosion-resistant adjusting cage screws, making it suitable for outdoor installations.
- Lead-free construction
- Adjustable pressure range: 25 - 75 psi
- Inline serviceable
Product Highlights
Watts 0009108 Series LFU5B-Z3 Pressure Reducing Valve optimizes water pressure and system protection. The valve features a cast copper silicon alloy body, an integral stainless steel strainer, and a replaceable seat module. It includes a bypass feature that manages thermal expansion and ensures easy servicing without special tools.
Product Information
Standard Information
-
Brand: Watts
-
MPN: 0009108
-
Model: LFU5B-LP-ZE
-
UPC: 098268327427
Technical Specifications
-
Connection Size: 1/2 inch
-
Connection Type: Female Union x FNPT
-
Dimensions: 5-1/2 inches L x 3-1/16 inches W x 5-7/8 inches H
-
Material: Cast Copper Silicon Alloy
-
Pressure Rating: 10 - 35 psi
-
Temperature Rating: 33 - 160 degrees F
-
Trim Material: Stainless Steel
-
Seat Material: Replaceable Stainless Steel
-
Disc Material: EPDM
-
Standards & Certifications: ASSE 1003, ANSI A112.26.2, CSA B356, UPC, ANSI/NSF 61G, IAPMO listed
-
Applications: Low pressure applications
