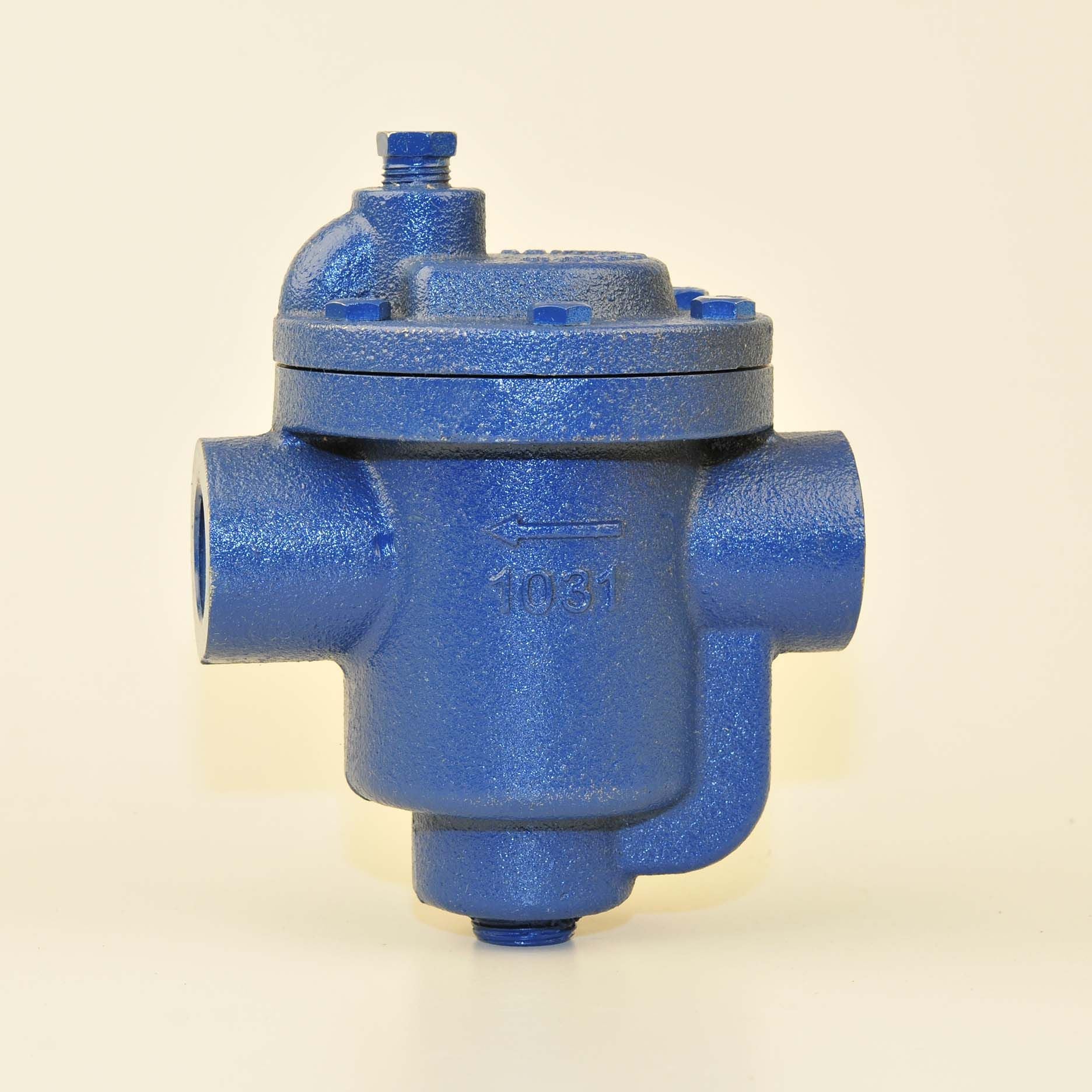

Watson McDaniels IB1031-13-N-125 - 3/4 Cast Iron In-Line Horizontal Bucket Trap

Product Description

The Watson McDaniels inverted bucket steam trap, model IB1031-13-N-125, features a three-quarter inch trap connection in an in-line horizontal configuration. This design allows steam to enter from one side while the condensate discharges from the opposite side. Inverted bucket traps utilize a leverage system that relies on the bucket's weight to control the valve against steam pressure.

• This trap has a maximum operating pressure of one hundred twenty-five psi.
• It is made from cast iron for durability.
• Ideal for high wear and corrosion environments.

Product Highlights

The trap efficiently vents air and non-condensable gases, making it suitable for heat exchange equipment.

Product Information

Standard Information

• Brand: Watson McDaniels
• Model: 1031

Technical Specifications

• Steam Trap Type: Inverted Bucket
• Steam Trap Connection Size: 3/4 inch
• Max Pressure: 125 psi
• Steam Trap Mounting: In-Line Horizontal
• Body Material: Cast Iron
• Weight: 5.00 pounds
