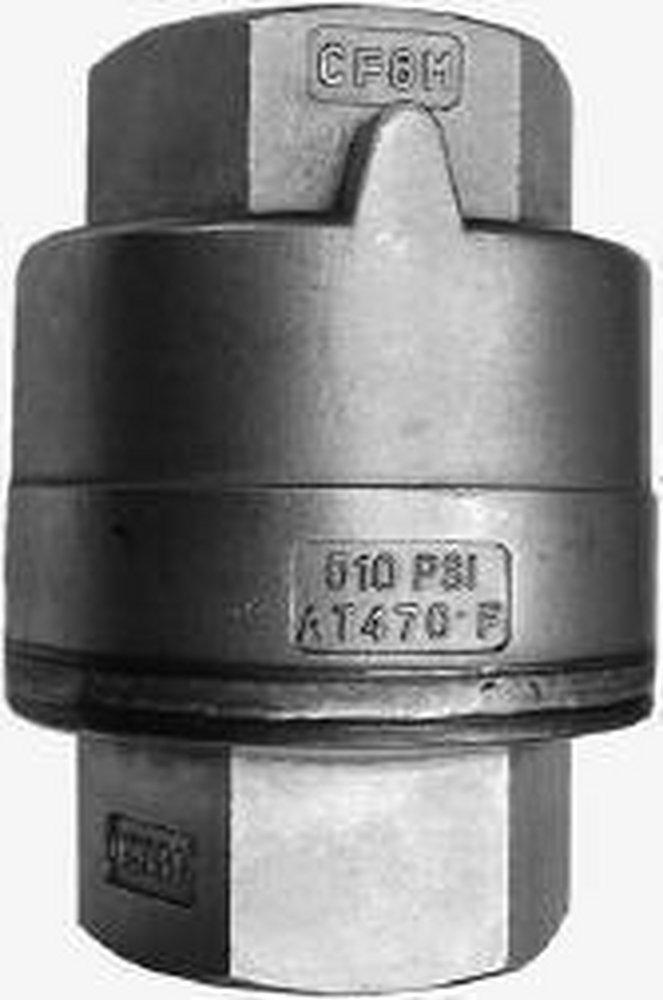

Watson McDaniel WSSCV-12-N-0 Model WSSCV 1/2 in Stainless Steel NPT Check Valve

Product Description

The Watson McDaniel WSSCV-12-N-0 is a stainless steel NPT check valve designed for use in steam, gas, and liquid systems. This inline check valve ensures tight shut-off, prevents backflow, and minimizes water hammer. It is suitable for various applications including petrochemical, pulp and paper, and food and beverage industries.

• 316 stainless steel body and internals
• Low cracking pressure of 1/4 psi to enhance flow
• Spring made from Inconel-X-750 for high-temperature and corrosive environments

Product Highlights

The WSSCV-12-N-0 check valve operates longer with fewer issues compared to bronze or cast iron alternatives.

Product Information

Standard Information

• Brand: Watson McDaniel
• Manufacturer: Watson McDaniel

Technical Specifications

• Connection Size: 1/2 in
• Connection Type: NPT
• Dimension: 2.69 in L x 1.62 in W
• Disc Material: 316 Stainless Steel
• Flow Coefficient: 7 Cv
• Item Name: In-Line Check Valve
• Material: 316 Stainless Steel
• Model: WSSCV
• Pressure Rating: 500 psig
• Applications: For steam, gas or liquid service
