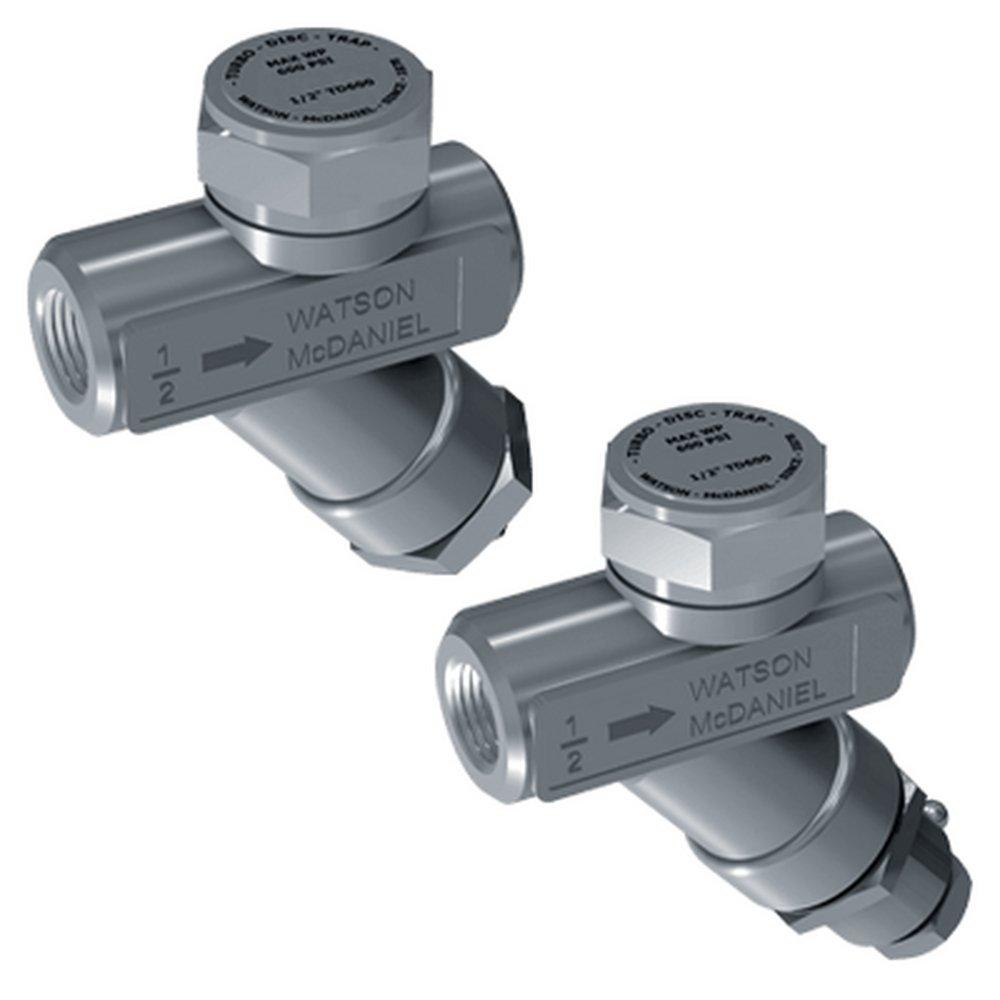

Watson McDaniel TD600-14-N TD600 Series 1 in. Steam Trap

Product Description

The Watson McDaniel TD600-14-N is a thermodynamic steam trap designed for efficient condensate drainage. This trap is suitable for high-pressure applications, operating effectively within a range of three and a half to six hundred psi. The trap features a hardened stainless steel seat and disc, ensuring durability and long service life. Upon installation, this steam trap can function in various orientations, making it flexible for diverse setups.

• Operable over a wide pressure range from 3.5 psi to 600 psi.
• Constructed with hardened stainless steel for enhanced service life.
• Freeze-proof when piped vertically to ensure complete drainage.

Product Highlights

It is ideal for draining condensate from steam mains and supply lines, along with being suitable for outdoor applications exposed to freezing temperatures.

Product Information

Standard Information

• Brand: Watson McDaniel
• Manufacturer: Watson McDaniel

Technical Specifications

• Connection Type: NPT
• Dimension: 3.81 inches long x 2.12 inches wide x 2.81 inches high
• Item Name: Thermodynamic Steam Trap
• Material: Stainless Steel
• Model: TD600
• Nominal Size: 1 inch
• Pressure Rating: 600 psig
• Temperature Rating: 800 degrees Fahrenheit
