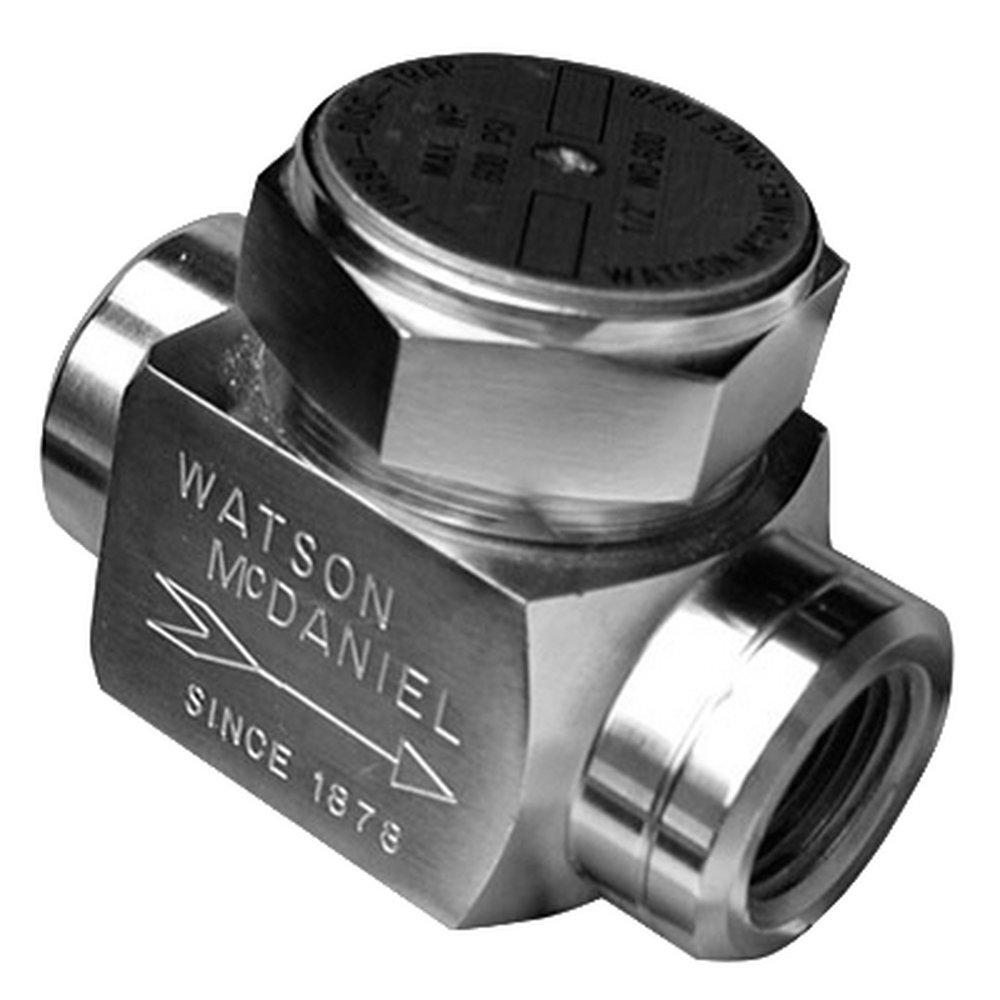

Watson McDaniel TD600-13-N Steam Trap 800F 600 psig

Product Description

The Watson McDaniel TD600-13-N is a thermodynamic steam trap designed for high efficiency in draining condensate from steam systems. This model is suitable for various applications, including steam tracing and drip applications. Constructed with robust stainless steel, it can handle high pressure and extreme temperatures.

• Designed for pressure applications up to 600 psig.
• Constructed from hardened stainless steel for durability.
• Operates effectively in both superheated steam and freezing conditions.

Product Highlights

This steam trap is a reliable solution for draining condensate efficiently and can function in various orientations.

Product Information

Standard Information

• Brand: Watson McDaniel
• Model: TD600

Technical Specifications

• Connection Type: NPT
• Dimension: 2.81 in L x 1-3/4 in W x 2.38 in H
• Item Name: Thermodynamic Steam Trap
• Material: Stainless Steel
• Nominal Size: 3/4 in
• Pressure Rating: 600 psig
• Temperature Rating: 800 deg F
• Applications: For drip applications such as draining condensate from steam mains, steam supply lines and steam tracing applications
