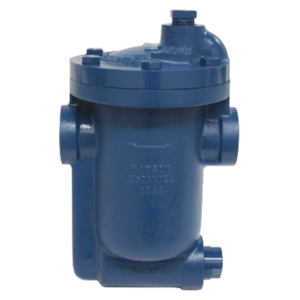

WATSON MCDANIEL IB1038S-15-N-015 Ib Series Inverted Bucket Steam Traps 1 1/4inch

Product Description

The WATSON MCDANIEL IB1038S-15-N-015 Ib Series Inverted Bucket Steam Trap is designed for efficient condensate removal in drip applications. This steam trap features a one and one-quarter inch NPT connection and is ideal for use in steam mains and supply lines. The top-mounted discharge orifice minimizes issues caused by dirt and debris accumulation, ensuring reliable operation in various process applications, such as unit heaters and laundry equipment.

• 1 and 1/4 inch NPT connection
• Maximum operating pressure of 15 psig
• Constructed with durable cast iron body and stainless steel internals

Product Highlights

This steam trap effectively removes condensate in steam systems and is suitable for various industrial applications.

Product Information

Standard Information

• Brand: WATSON MCDANIEL
• MPN: IB1038S-15-N-015

Technical Specifications

• Size: 1 and 1/4 inches
• Connection: NPT
• Orifice Size: 1/2 inch
• Max. Operating Pressure (psig): 15
• Max. Allowable Pressure (psig): 250 psig up to 450°F
• Body: Cast Iron
• Cover: Cast Iron
• Valve: 420 SS
• Seat: 420 SS
• Strainer: 316 SS
• Bucket: 304 SS
• Internals: Stainless Steel
