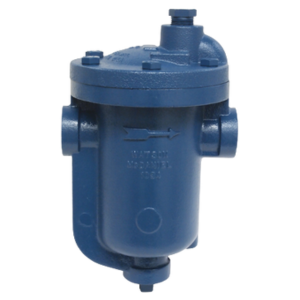

WATSON MCDANIEL IB1032-14-N-125 Inverted Bucket Steam Trap 1 Inch

Product Description

The WATSON MCDANIEL IB1032-14-N-125 is an inverted bucket steam trap designed to efficiently remove condensate from steam mains and steam supply lines. It is suitable for use in drip applications, ensuring effective condensate management.

• Used for drip applications to remove condensate.
• Features a discharge orifice located at the top of the trap body.
• Less prone to failure due to dirt and debris.

Product Highlights

This steam trap helps maintain system efficiency by removing condensate while minimizing the impact of debris in the system.

Product Information

Standard Information

• Brand: WATSON MCDANIEL
• MPN: IB1032-14-N-125

Technical Specifications

• Size: 1 inch
• Connection: NPT
• Orifice Size: 1/8 inch
• Max. Operating Pressure: 125 psig
• Max. Allowable Pressure: 250 psig up to 450°F
• Body: Cast Iron
• Cover: Cast Iron
• Valve: 420 SS
• Seat: 420 SS
• Strainer: 316 SS
• Bucket: 304 SS
• Internals: Stainless Steel
