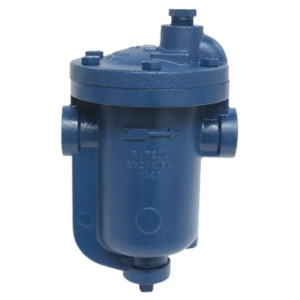

WATSON MCDANIEL IB1032-13-N-125 Inverted Bucket Steam Trap 125 PSIG (3/4inch)

Product Description

The WATSON MCDANIEL IB1032-13-N-125 is an inverted bucket steam trap designed for effective condensate removal in steam systems. This model is particularly suitable for applications where air discharge during system start-up is not critical. The top-mounted discharge orifice helps to minimize blockages caused by dirt and debris.

• Ideal for drip applications in steam systems.
• Durable top-mounted discharge orifice.
• Constructed with stainless steel internals for enhanced durability.

Product Highlights

This steam trap is efficient in removing condensate and is appropriately used in various steam-related operations.

Product Information

Standard Information

• Brand: WATSON MCDANIEL
• MPN: IB1032-13-N-125

Technical Specifications

• Size: 3/4 inches
• Connection: NPT
• Orifice Size: 1/8 inches
• Max Operating Pressure (psig): 125
• Max Allowable Pressure (psig): 250 PSIG up to 450°F
• Body Material: Cast Iron
• Cover Material: Cast Iron
• Valve Material: 420 SS
• Seat Material: 420 SS
• Strainer Material: 316 SS
• Bucket Material: 304 SS
• Internals: Stainless Steel
