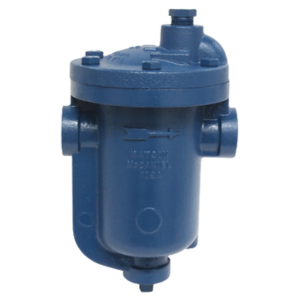

WATSON MCDANIEL IB1032-13-N-030 Inverted Bucket Steam Trap 3/4 inch

Product Description

The WATSON MCDANIEL IB1032-13-N-030 inverted bucket steam trap is designed to efficiently remove condensate from steam mains and supply lines in drip applications. Featuring a top-mounted discharge orifice, this trap reduces the likelihood of failure caused by dirt and debris.

• Includes a three-quarter inch NPT connection.
• Maximum operating pressure is thirty psig.
• Made from durable cast iron for both body and cover.

Product Highlights

This steam trap is ideal for removing condensate to ensure proper functioning in applications like unit heaters and laundry equipment.

Product Information

Standard Information

• Brand: WATSON MCDANIEL
• MPN: IB1032-13-N-030

Technical Specifications

• Size: three-quarter inch
• Connection: NPT
• Orifice Size: three-sixteenths inch
• Max Operating Pressure (psig): 30
• Max Allowable Pressure (psig): 250 up to 450 degrees Fahrenheit
• Body: Cast Iron
• Cover: Cast Iron
• Valve: 420 SS
• Seat: 420 SS
• Strainer: 316 SS
• Bucket: 304 SS
• Internals: Stainless Steel
