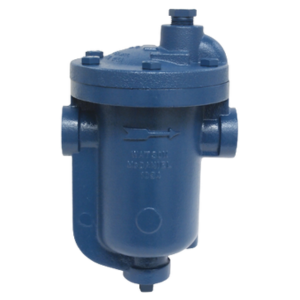

WATSON MCDANIEL IB1032-12-N-125 Inverted Bucket Steam Trap 125 PSIG (1/2inch)

Product Description

The WATSON MCDANIEL IB1032-12-N-125 inverted bucket steam trap effectively removes condensate in steam systems. Its design is intended for drip applications, ensuring efficient operation in steam mains and supply lines.

• Designed for drip applications to remove condensate.
• Top-mounted discharge orifice reduces clogging risks.
• Reliable in preventing failure due to dirt and debris.

Product Highlights

This steam trap is suitable for maintaining system efficiency by extracting condensate where air discharge isn't critical during startup.

Product Information

Standard Information

• Size: 1/2 inches
• Connection: NPT

Technical Specifications

• Orifice Size: 1/8 inches
• Max Operating Pressure: 125 PSIG
• Max Allowable Pressure: 250 PSIG up to 450 degrees F
• Body Material: Cast Iron
• Cover Material: Cast Iron
• Valve Material: 420 SS
• Seat Material: 420 SS
• Strainer Material: 316 SS
• Bucket Material: 304 SS
• Internals Material: Stainless Steel
