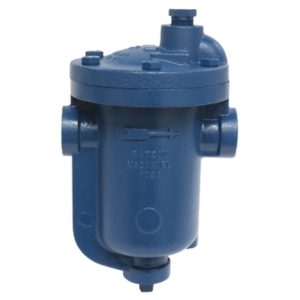

WATSON MCDANIEL IB1032-12-N-070 Inverted Bucket Steam Trap 1/2 inch

Product Description

The WATSON MCDANIEL IB1032-12-N-070 is an inverted bucket steam trap designed for efficient removal of condensate in drip applications. It effectively manages condensate from steam mains and supply lines. The trap features a top-mounted discharge orifice to reduce the risk of blockage from dirt and debris.

• Ideal for drip applications to ensure effective condensate removal.
• Designed with a top-mounted discharge orifice for enhanced reliability.
• Constructed from durable cast iron and stainless steel components.

Product Highlights

This steam trap is suitable for various applications needing reliable condensate management.

Product Information

Standard Information

• Brand: WATSON MCDANIEL
• MPN: IB1032-12-N-070

Technical Specifications

• Size: 1/2 inches
• Connection: NPT
• Orifice Size: 5/32 inches
• Max. Operating Pressure: 70 psig
• Max. Allowable Pressure: 250 PSIG up to 450°F
• Body: Cast Iron
• Cover: Cast Iron
• Valve: 420 SS
• Seat: 420 SS
• Strainer: 316 SS
• Bucket: 304 SS
• Internals: Stainless Steel
