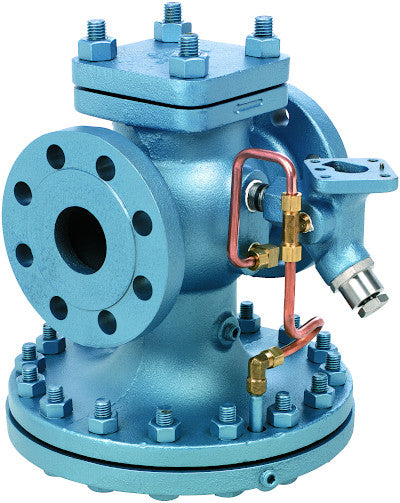

Watson Mcdaniel hd-14-n Main Valve 1 Inch Npt

Product Description

The WATSON MCDANIEL hd-14-n is a Type HD main valve designed for use in steam and fluid control systems where reliable, normally closed operation is required. This single-seat, threaded valve features balanced phosphor bronze diaphragms and a protected main spring, giving it a virtually frictionless operating mechanism built for long service life. The 1-inch NPT threaded connection makes it compatible with standard pipe fittings, and its design allows for in-line maintenance without removing the valve body from the line. Licensed plumbers and pipefitters are the typical installers of this valve in commercial and industrial steam distribution or pressure-reducing applications.

The hd-14-n is suited for steam system piping where a normally closed, pilot-operated or direct-acting main valve is needed. Its threaded NPT body simplifies installation in new construction and retrofit projects. The balanced diaphragm design reduces the effect of inlet pressure variation on valve operation, making it a dependable choice for systems that require consistent shutoff and controlled flow. This valve is typically found in commercial boiler rooms, industrial process lines, and large-building steam distribution networks.

Key Features

• Normally closed single-seat design provides positive shutoff at rest
• Balanced phosphor bronze diaphragms minimize friction and wear for extended service life
• Protected main spring resists corrosion and mechanical damage in demanding environments
• 1-inch NPT threaded connection compatible with standard pipe fittings
• In-line maintenance capability allows servicing without removing valve from piping

Compatibility

Designed as an OEM-style replacement or direct-install main valve for steam and fluid control piping systems using 1-inch NPT threaded connections.

Installation Notes

Installation of this main valve should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes such as the IFGC or local steam piping regulations. Shut down the system and allow full pressure relief and cool-down before beginning any valve work. Use appropriate pipe thread sealant rated for the intended service medium on all NPT connections. Verify flow direction markings on the valve body before final installation.

Technical Specifications

• Connection Type: 1 inch NPT Threaded
• Valve Type: Main Valve, Type HD
• Operation: Normally Closed
• Seat Configuration: Single Seat
• Diaphragm Material: Phosphor Bronze, Balanced

Standard Information

• Brand: WATSON MCDANIEL
• Manufacturer Part Number: hd-14-n
