Watson McDaniel FTT-145-16-N FTT-145 Series Steam Trap 1-1/2 inch

Product Description

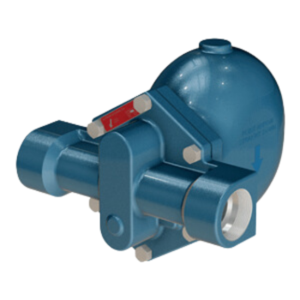

The Watson McDaniel FTT-145-16-N is a steam trap designed for in-line pipe connections. It effectively removes condensate and air in various HVAC and industrial process applications, including unit heaters, water heaters, pressing machines, heat exchangers, and coils.

• Durable ductile iron body resists shock loads.
• All stainless steel internals ensure longevity and reduced wear.
• Excellent air handling capability for quick air discharge.

Product Highlights

This steam trap excels in the removal of condensate and air, making it an optimal choice for numerous process applications.

Product Information

Standard Information

• End Style: NPT
• Material: Ductile Iron

Technical Specifications

• Nominal Size: 1-1/2 inches
• Pressure Rating: 145 psi
• Series: FTT
• Max. Operating Pressure: 145 psig
• Max. Allowable Pressure: 300 psig up to 450°F
• Body Material: Ductile Iron
• Cover Material: Ductile Iron
• Valve Material: Stainless Steel, 17-4 PH
• Disc Material: 420F SS
• Thermostat Material: Stainless Steel
• Float Material: 304 SS
• Internals Material: Stainless Steel
