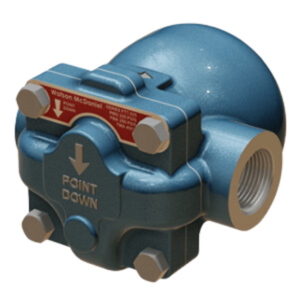

WATSON MCDANIEL FTT-145-14-N 1inch NPT 145 PSIG PMO Float & Thermostatic Steam Trap

Product Description

The WATSON MCDANIEL FTT-145-14-N is a steam trap designed for effective condensate and air removal in HVAC and industrial applications. It is used in various systems, including unit heaters, pressing machines, and heat exchangers. This steam trap features in-line pipe connections and is made with a durable ductile iron body that withstands shock loads effectively.

• Material benefits from ductile iron, providing more resistance to impact.
• All stainless steel internal components ensure longevity and reliability.
• Efficient air handling capability for rapid air discharge in systems.

Product Highlights

This steam trap offers excellent performance in condensate management and air removal, contributing to system efficiency.

Product Information

Standard Information

• End Style: NPT
• Material: Ductile Iron

Technical Specifications

• Nominal Size: 1 inch
• Pressure Rating: 145 psi
• Max. Operating Pressure: 145 psig
• Max. Allowable Pressure: 300 psig up to 450°F
• Body Material: Ductile Iron
• Cover Material: Ductile Iron
• Valve Material: Stainless Steel, 17-4 PH
• Disc Material: 420F Stainless Steel
• Thermostat Material: Stainless Steel
• Float Material: 304 Stainless Steel
• Internals Material: Stainless Steel
