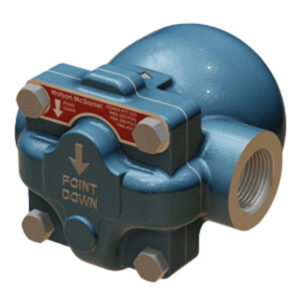

Watson McDaniel FTT-065-12-N FTT Series Steam Trap 1/2 In

Product Description

The Watson McDaniel FTT-065-12-N FTT Series steam trap is designed to remove condensate and air in HVAC and industrial applications. It connects seamlessly with in-line pipes and is applicable for unit heaters, water heaters, pressing machines, heat exchangers, and coils.

• Constructed from ductile iron for higher pressure and temperature ratings.
• Includes stainless steel internals for durability and wear resistance.
• Efficient air handling capabilities for rapid discharge during system start-up.

Product Highlights

This steam trap effectively manages condensate and air, ensuring optimized performance across various settings.

Product Information

Standard Information

• Brand: Watson McDaniel
• MPN: FTT-065-12-N

Technical Specifications

• End Style: NPT
• Material: Ductile Iron
• Nominal Size: 1/2 In
• Pressure Rating: 65 psi
• Series: FTT
• Max. Operating Pressure (psig): 65
• Body: Ductile Iron
• Cover: Ductile Iron
• Valve: Stainless Steel, 17-4 PH
• Disc: 420F SS
• Thermostat: Stainless Steel
• Float: 304 SS
• Internals: Stainless Steel
