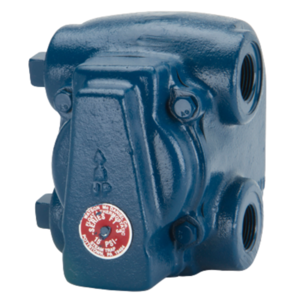

Watson McDaniel FT76-075-15-N FT Series Steam Trap 1-1/4 In

Product Description

The Watson McDaniel FT76-075-15-N FT Series steam trap operates effectively at pressures up to seventy-five psig, making it ideal for moderate pressure HVAC systems and light industrial applications.

• H-pattern design supports versatile installation options.
• Rapid air discharge capability enhances overall operation.
• Durable stainless steel components improve longevity and performance.

Product Highlights

This steam trap is suitable for a range of applications including unit heaters, water heaters, pressing machines, heat exchangers, and coils. Its innovative design allows for straightforward installation and robust air handling.

Product Information

Standard Information

• Brand: Watson McDaniel
• MPN: FT76-075-15-N

Technical Specifications

• End Style: NPT
• Material: Cast Iron
• Nominal Size: 1-1/4 In
• Pressure Rating: 75 psi
• Series: FT
• Connection: NPT
• Max. Operating Pressure: Seventy-five psig
• Max. Allowable Pressure: 75 PSIG up to 450°F
• Body Material: Cast Iron
• Cover Material: Cast Iron
• Seat Material: Stainless Steel
• Disc Material: Stainless Steel
• Thermostat Material: Stainless Steel
• Float Material: Stainless Steel
• Internals Material: Stainless Steel
