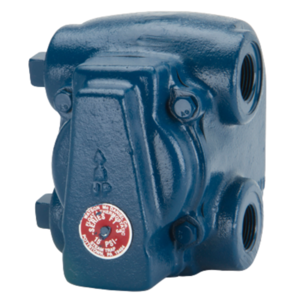

WATSON MCDANIEL FT73-075-13-N Float & Thermostatic Steam Trap 75 PSI PMO

Product Description

The WATSON MCDANIEL FT73-075-13-N is a float and thermostatic steam trap designed for operating pressures up to seventy-five PSIG. It is ideal for lower pressure HVAC and light industrial applications such as unit heaters, water heaters, pressing machines, and heat exchangers. This steam trap reliably drains steam mains and steam supply lines.

• H-pattern design allows piping connectivity from either side.
• Rapid air handling capability enables quick steam entry during start-up.
• Welded stainless steel thermostatic air vent withstands water hammer shock.

Product Highlights

The FT Series steam traps feature a dual inlet-outlet H-pattern connection, offering flexible installation options with robust stainless steel internals for longevity.

Product Information

Standard Information

• End Style: NPT
• Material: Cast Iron

Technical Specifications

• Nominal Size: three-fourths inches
• Pressure Rating: seventy-five psi
• Series: FT
• Connection: NPT
• Max. Operating Pressure: seventy-five psig
• Max. Allowable Pressure: seventy-five PSIG up to four hundred fifty degrees Fahrenheit
• Body: Cast Iron
• Cover: Cast Iron
• Seat: Stainless Steel
• Disc: Stainless Steel
• Thermostat: Stainless Steel
• Float: Stainless Steel
• Internals: Stainless Steel
