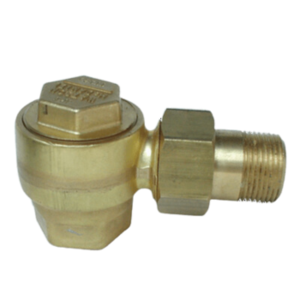

WATSON MCDANIEL AVT125-13-N AVT125 3/4 In Thermostatic Air Vent

Product Description

The WATSON MCDANIEL AVT125-13-N is designed for steam applications up to one hundred twenty-five PSIG, allowing for the effective removal of air and non-condensable gases from process equipment, vessels, and piping. This air vent is best positioned at the highest point in a system or vessel and offers flexibility in installation orientation.

• Simple design for easy maintenance
• All stainless steel internals for durability
• Thermal element is the only moving part for reliability

Product Highlights

This thermostatic air vent is suitable for steam systems, featuring a robust forged brass body complemented by stainless steel internals.

Product Information

Standard Information

• End Style: NPT
• Material: Forged Brass

Technical Specifications

• Nominal Size: 3/4 In
• Pressure Rating: 125 psi
• Series: AVT125
• Connection: NPT
• Max. Operating Pressure: 125 psig
• Orifice Size: 0.31 In
• Body: Forged Brass, CA 377
