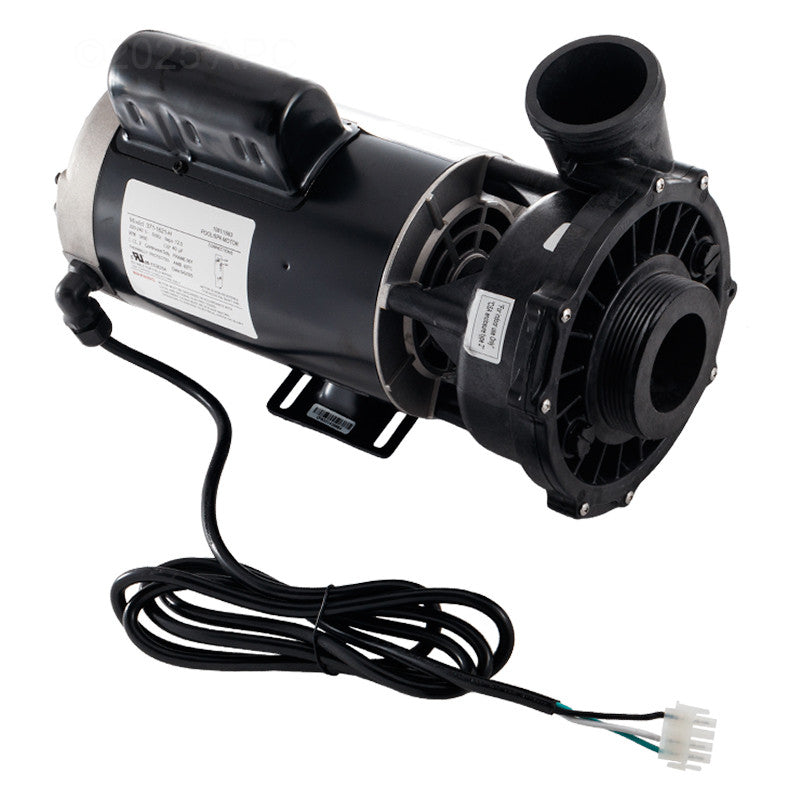

Waterway Plastics me-40126-25 Executive Pool Pump 4HP 230V

Product Description

The WATERWAY PLASTICS me-40126-25 is a single-speed executive-style pool pump built on a 56-frame motor platform. Rated at 4 horsepower and operating on 230 volts at 60 Hz, it is designed for residential and light commercial inground pool circulation systems. The 2.5-inch intake accommodates high-flow plumbing configurations common in larger pools. An 8-foot power cord is included for connection to a dedicated pool equipment circuit. Licensed pool technicians and electricians install this pump as part of standard filtration, sanitation, and return-line systems.

This pump is suited for inground pool installations requiring a high-horsepower single-speed circulation solution. The 56-frame motor designation indicates compatibility with standard motor mounting configurations widely used across pool equipment pads. The 2.5-inch intake port supports larger-diameter suction plumbing, making it appropriate for pools with high-volume circulation demands or longer pipe runs. The included 8-foot cord simplifies connection to nearby junction boxes or time-clock-controlled circuits on the equipment pad.

Key Features

• 4 HP motor output for high-volume pool circulation
• 230-volt, 60 Hz single-speed operation
• 2.5-inch intake for large-diameter suction plumbing
• 56-frame motor mount for standard equipment-pad compatibility
• 8-foot power cord included

Compatibility

Designed as an OEM-style replacement or direct-install executive pool pump for inground pool systems using 56-frame motor configurations and 2.5-inch suction plumbing.

Installation Notes

Installation should be performed by a licensed pool technician or electrician in accordance with NEC Article 680 requirements for pool pump wiring. Shut off power at the dedicated circuit breaker and verify the circuit is de-energized before making any electrical connections. Ensure all unions and fittings are pressure-tested after installation before returning the system to service. Do not operate the pump dry, as this can damage the mechanical seal.

Technical Specifications

• Horsepower: 4 HP
• Voltage: 230 volts
• Speed: 1 Speed
• Frequency: 60 Hz
• Intake Size: 2.5 inches
• Motor Frame: 56 Frame
• Cord Length: 8 feet

Standard Information

• Brand: WATERWAY PLASTICS
• Manufacturer Part Number: me-40126-25
