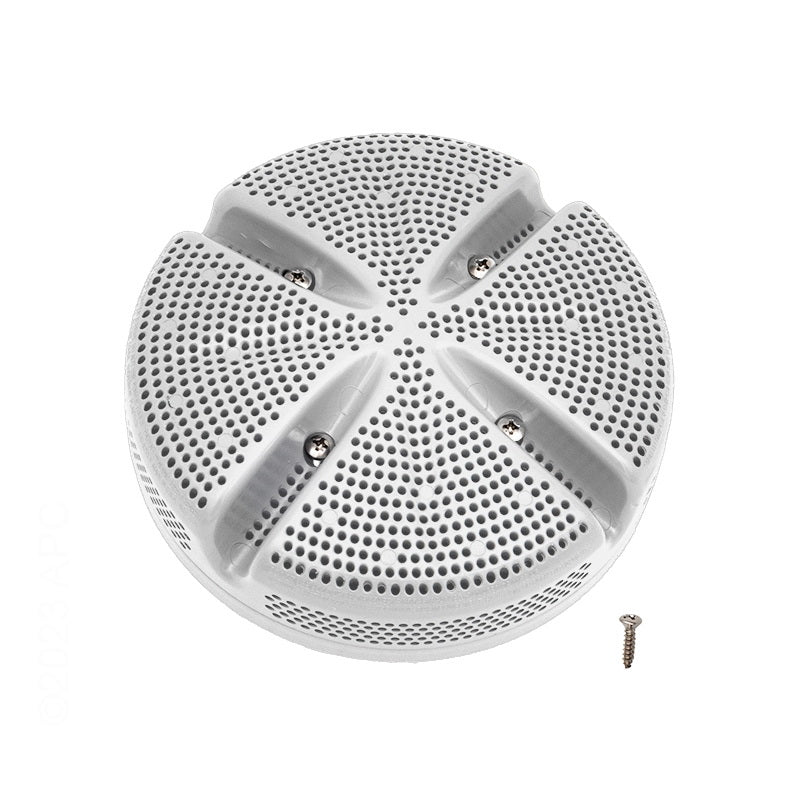

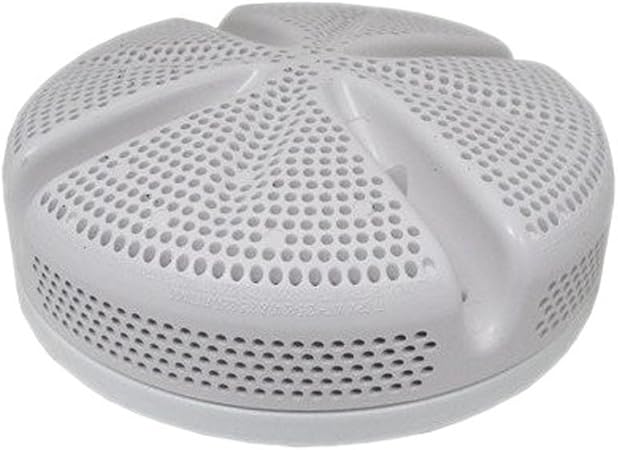

Waterway Plastics 640-8240VB 6-Inch Ultra Suction with 1.5-Inch Threaded Wall Fitting

Product Description

The Waterway Plastics 640-8240VB is a six-inch ultra suction drain designed for pools and spas. It is suitable for Gunite, Fiberglass, Tile, and Steel pools. This drain features a sumpless design, which eliminates the need for a sump body. The unit includes a one-point-five-inch threaded wall fitting, making it versatile for various installations. Constructed with NSF rated PVC adapter fittings, it is compatible with PVC cements, ensuring reliable connections.

• Sumpless design, no sump body required
• Compatible with multiple pool types
• Includes NSF rated PVC adapter fittings

Product Highlights

The 640-8240VB suction drain provides effective performance with a total open area of ten-point-two square inches and varying flow rates based on the chosen wall fitting adapter.

Product Information

Standard Information

• Manufacturer: Waterway Plastics
• UPC: 758614171141

Technical Specifications

• Total Open Area: 10.2 sq. in.
• Flow Rate @ 1.5 ft/sec: 47 GPM
• Wall Flow Rate (with 215-8200 & 215-8230): 191 GPM @ 6.02 ft/sec
• Wall Flow Rate (with 215-8220 & 215-8210): 136 GPM @ 4.30 ft/sec
• Wall Flow Rate (with 215-8240 & 215-8250): 77 GPM @ 2.43 ft/sec
• Package Dimensions: 15.24 x 15.24 x 15.24 cm
• Part Number: 640-8240VB
• ASIN: B079SDXSY7
