Waterway Plastics 640-5301v Suction Fitting 5 Inch

Product Description

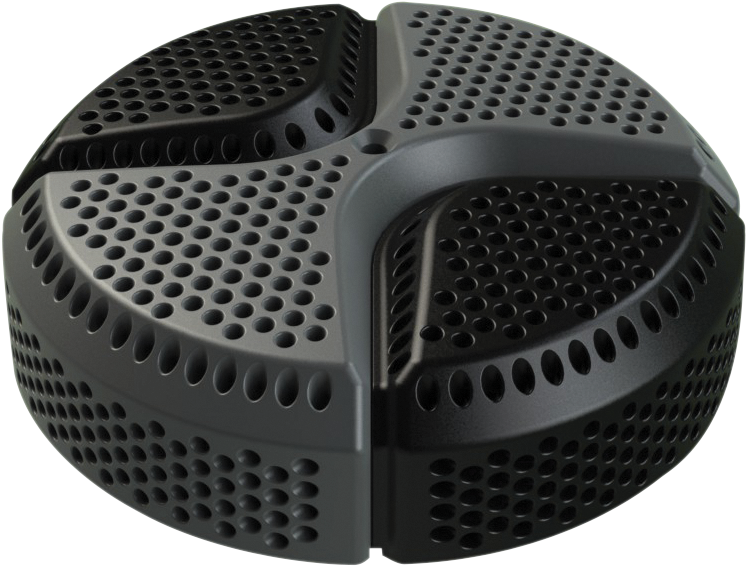

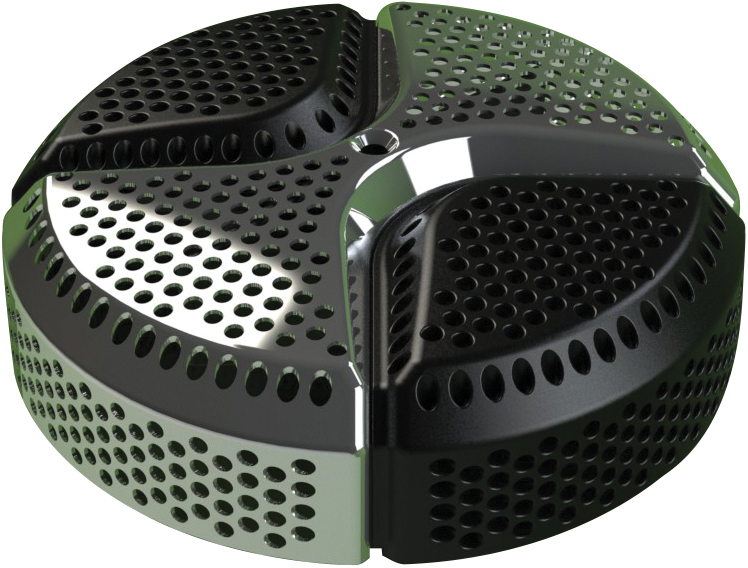

The WATERWAY PLASTICS 640-5301v is a 5-inch Designer Pro Series suction fitting designed for in-ground and above-ground swimming pool and spa plumbing systems. Built with a two-tone Black and Stainless Steel finish, this fitting combines a functional suction inlet with a finished appearance suitable for visible pool wall or floor installations. It accepts a 2-inch slip connection, making it compatible with standard pool plumbing pipe. Pool service professionals and plumbers install this fitting as part of the main drain or suction line assembly.

This suction fitting is intended for residential and light commercial pool and spa applications where a decorative yet durable suction inlet is required. The 5-inch face plate provides broad coverage at the suction port, and the 2-inch slip connection integrates directly into PVC plumbing runs. It is suited for new construction installs as well as replacement of worn or damaged suction fittings in existing pool walls or floors.

Key Features

• 5-inch face diameter provides wide suction coverage at the pool wall or floor
• 2-inch slip connection fits standard pool-grade PVC plumbing
• Two-tone Black and Stainless Steel finish for a finished, visible-surface appearance
• Designer Pro Series construction suited for residential and light commercial pools and spas

Compatibility

Designed as an OEM-style replacement suction fitting for residential and light commercial pool and spa plumbing systems using 2-inch slip PVC connections.

Installation Notes

Installation should be performed by a licensed pool contractor or plumber familiar with pool hydraulic systems and applicable local codes. Shut off the pool circulation pump and isolate the suction line before removing or installing any suction fitting. Use appropriate PVC primer and solvent cement rated for pool plumbing on all slip connections. Verify that the installed fitting meets ANSI or APSP entrapment-avoidance requirements for the pool or spa application.

Technical Specifications

• Face Diameter: 5 inches
• Connection Size: 2 inches slip
• Finish: Two-Tone Black and Stainless Steel
• Series: Designer Pro Series

Standard Information

• Brand: WATERWAY PLASTICS
• Manufacturer Part Number: 640-5301v
