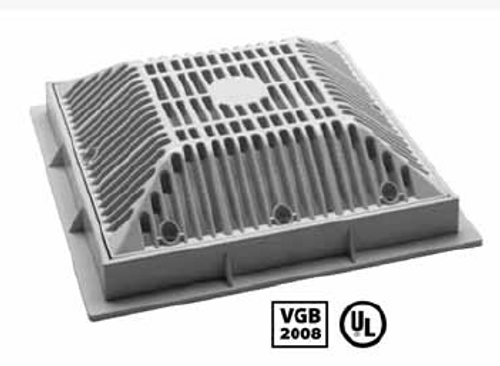

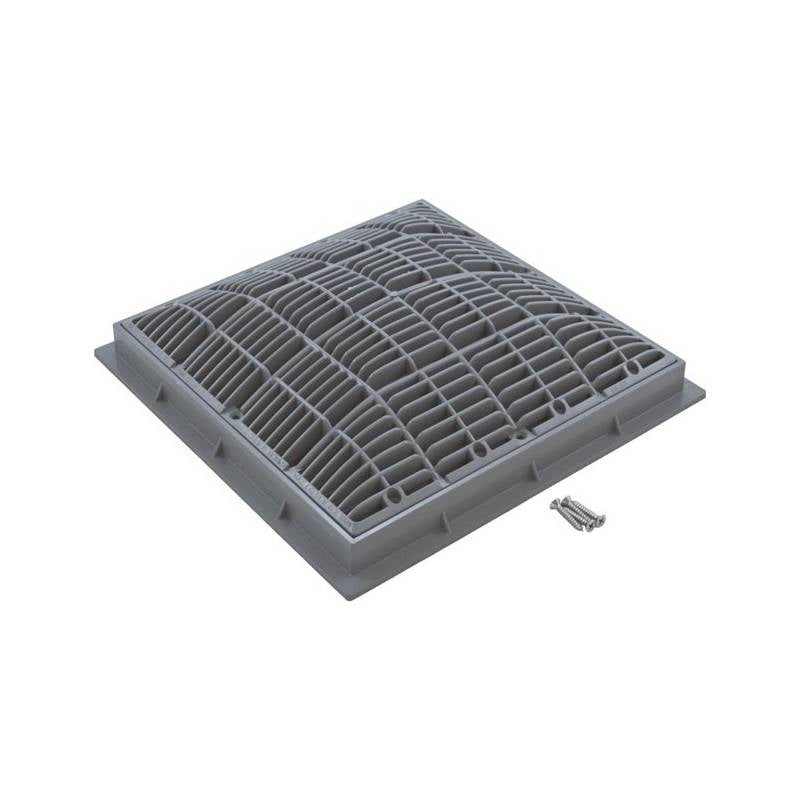

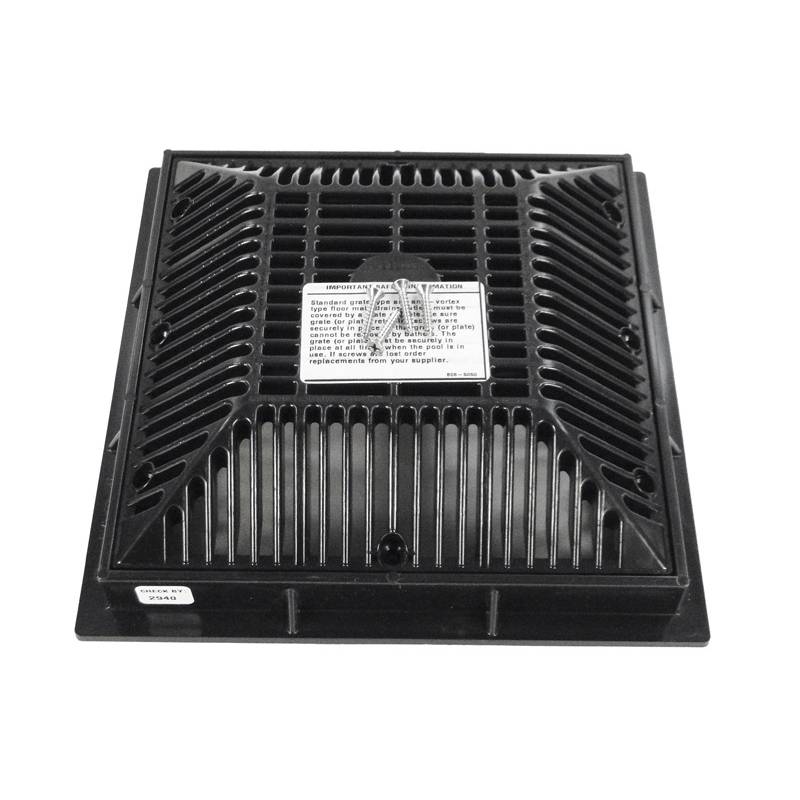

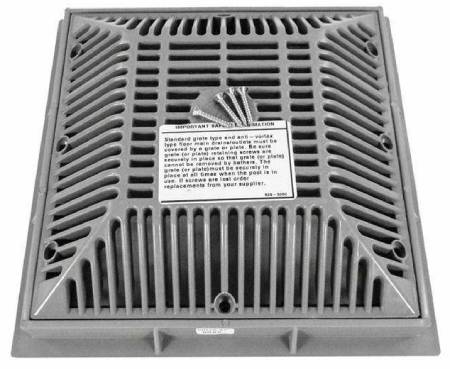

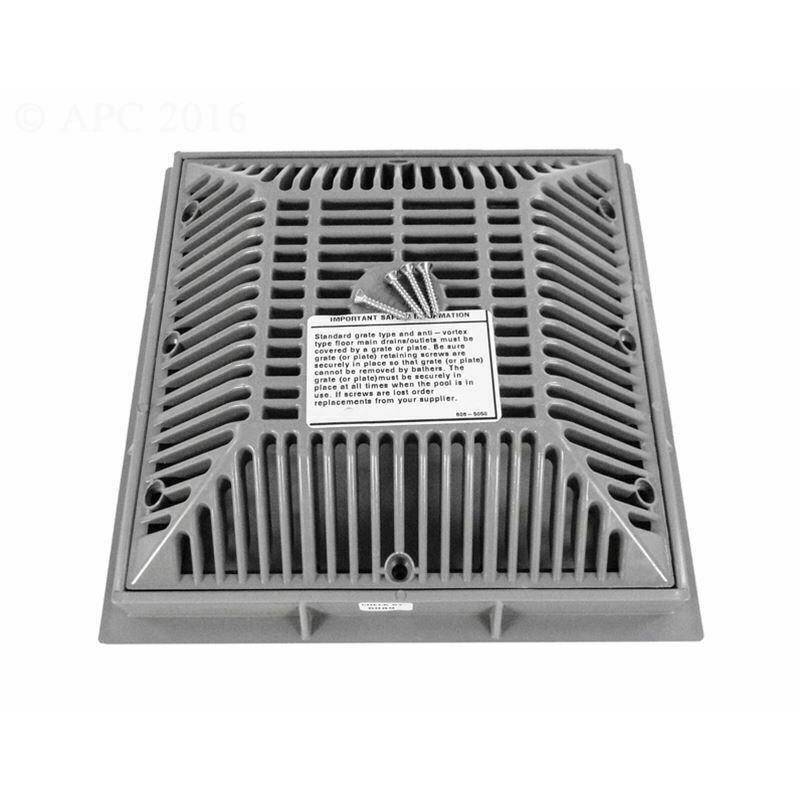

Waterway Plastics 640-4797V WATERWAY PLASTICS 9 x 9 Square Suction Cover with Frame - Gray 640-4797V

Product Description

The Waterway Plastics 640-4797V is a square suction cover made for pool drainage systems. The cover measures 9 inches by 9 inches and is finished in gray. It includes a durable frame and stainless steel screws for easy installation. The cover complies with CPSC standards, ensuring safety in pool environments.

• Suitable for single or multiple drain systems
• Includes stainless steel screws and frame for complete installation
• Complies with Consumer Safety Product Commission standards

Product Highlights

This suction cover is designed to provide excellent water flow while ensuring safety for users.

Product Information

Standard Information

• Brand: Waterway Plastics
• MPN: 640-4797V

Technical Specifications

• Weight: 1.00 lbs
• Frame Size: 10.375 inches by 10.375 inches
• Floor Flow Rate: 289 GPM at 2.33 ft/sec
• Wall Flow Rate: 208 GPM at 1.59 ft/sec and 203 GPM at 1.5 ft/sec
• Height: 1.47 inches
• Opening Between Ribs: 0.266 inches
• Frame Height: 1.25 inches
• Grate Size: 9 inches by 9 inches
• Total Open Area: 43.6 square inches
