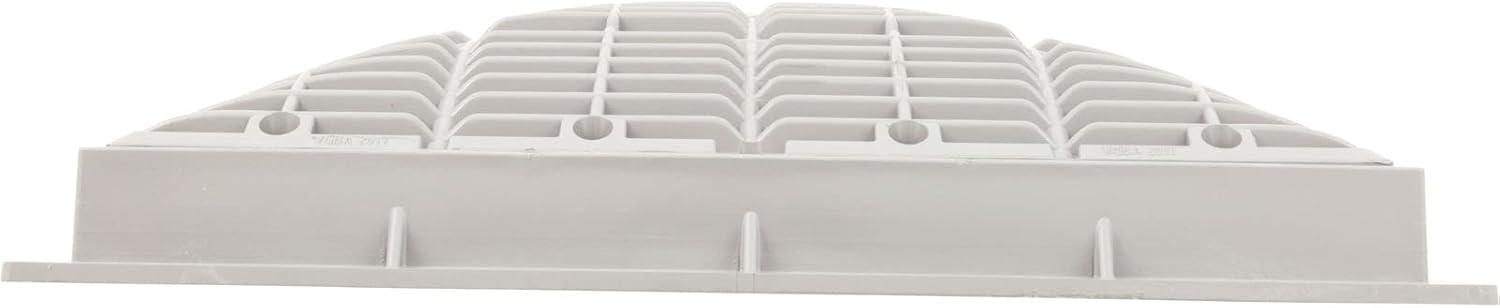

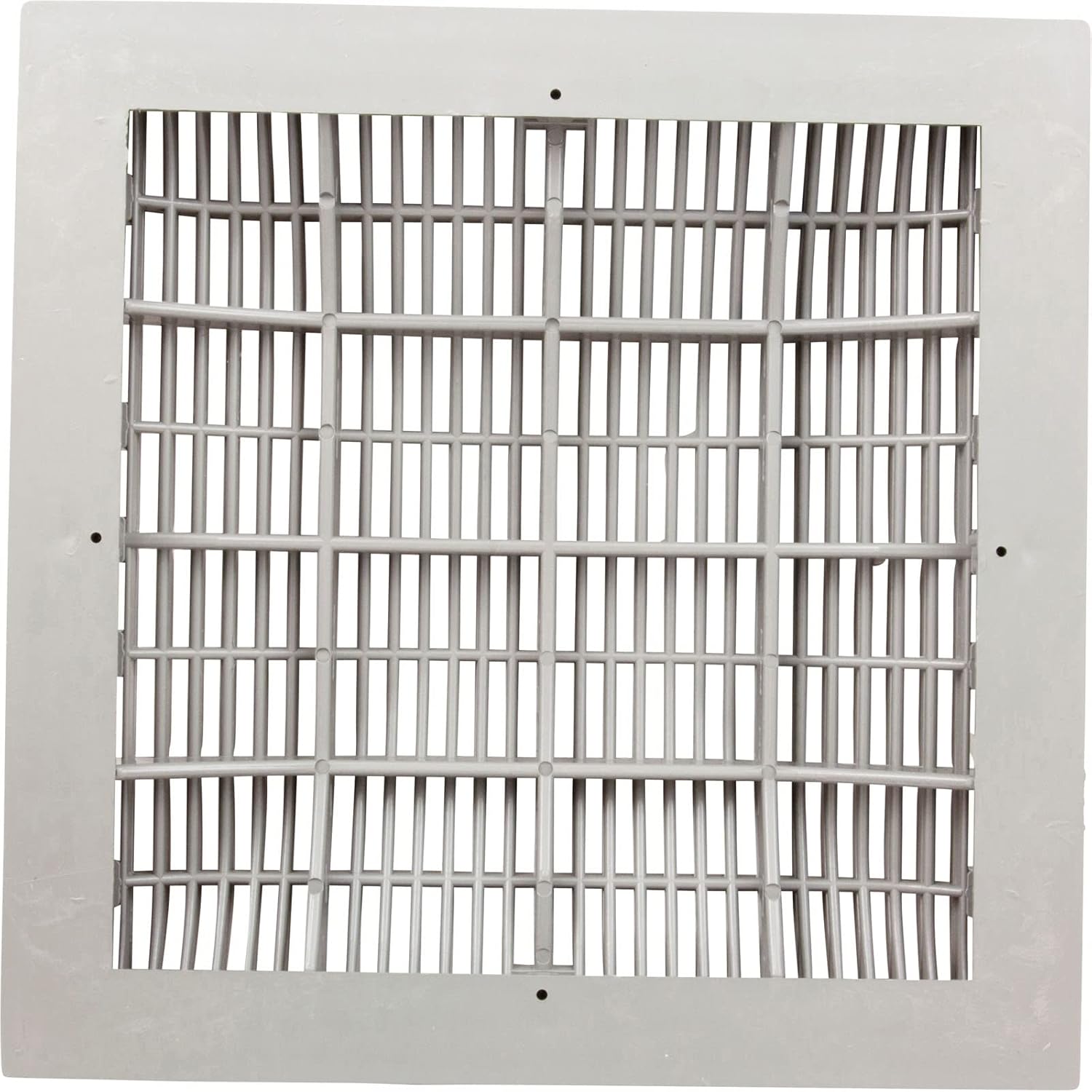

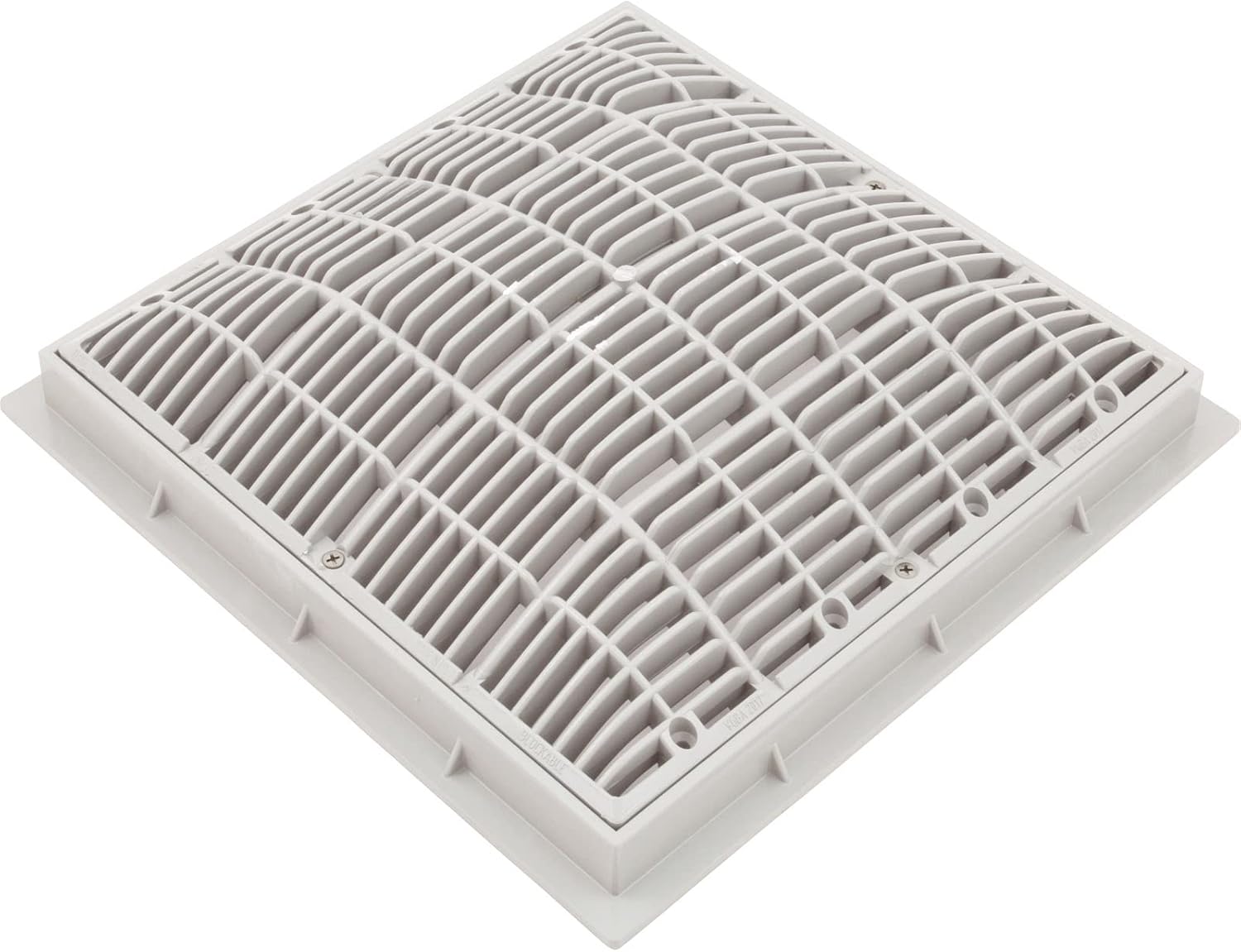

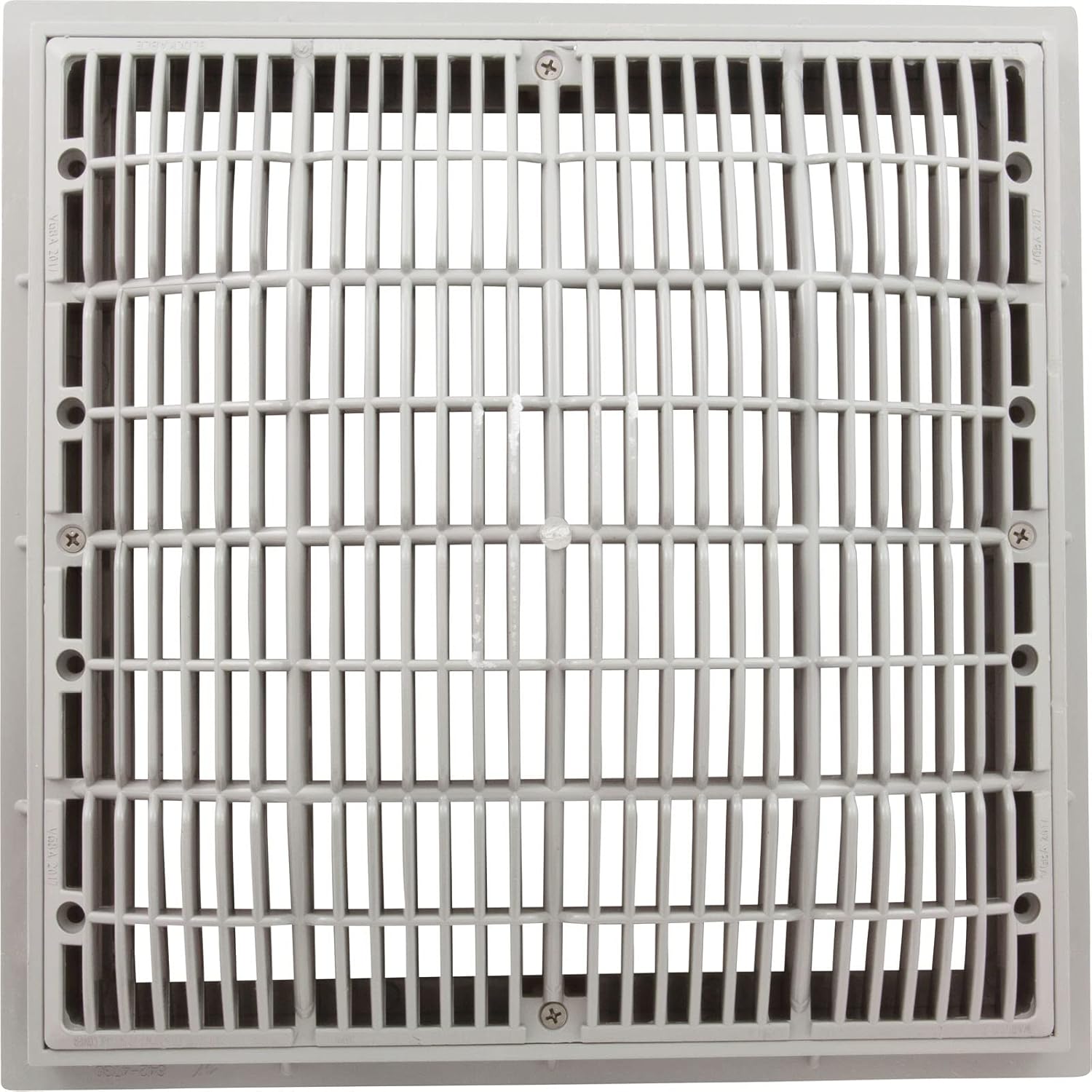

Waterway Plastics 640-4720V Main Drain Grate And Frame White 12 x 12

Product Description

The Waterway Plastics 640-4720V Main Drain Grate and Frame is designed for pool and spa safety. This 12 x 12 inch white grate and frame assembly complies with the Virginia Graeme-Baker Pool and Spa Safety Act (ASME/ANSI A112.19.8-2007) and is UL certified. It is suitable for single or multiple drain use.

• Compliant with safety standards
• Includes frame and stainless steel screws
• Installed easily for pool safety

Product Highlights

This Waterway Plastics 640-4720V Main Drain Grate and Frame enhances your pool's safety while providing essential drainage. It is perfect for residential and commercial pool and spa applications.

Product Information

Standard Information

• Brand: Waterway Plastics
• MPN: 640-4720V
• Color: White
• Size: 12 x 12 inches

Technical Specifications

• Frame Size: 13.250 x 13.250 inches
• Floor Flow Rate: 356 GPM with 4-inch plumbing
• Wall Flow Rate: 280 GPM with 4-inch plumbing
• Flow Rate at 1.5 ft/sec: 292 GPM
• Total Open Area: 62.4 square inches
• Material: Metal
• Shape: Square
• Compliance: ASME/ANSI A112.19.8-2007, UL certified
