Waterway Plastics 640-1907V - 10 Tru Flo Suction Cover and Frame - Gray

Product Description

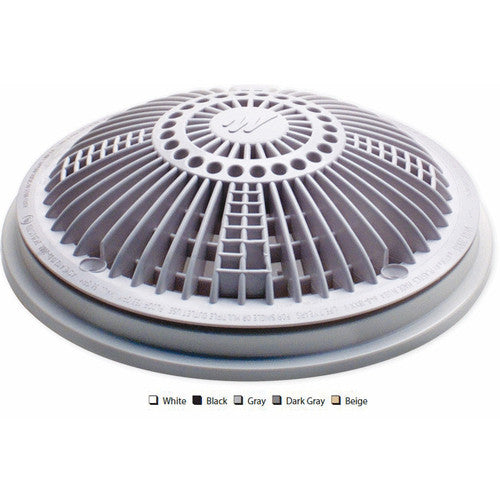

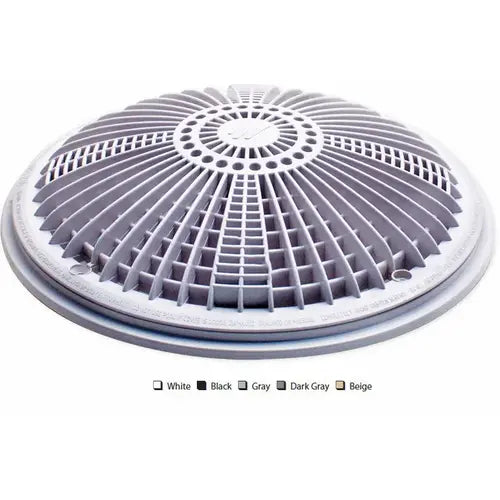

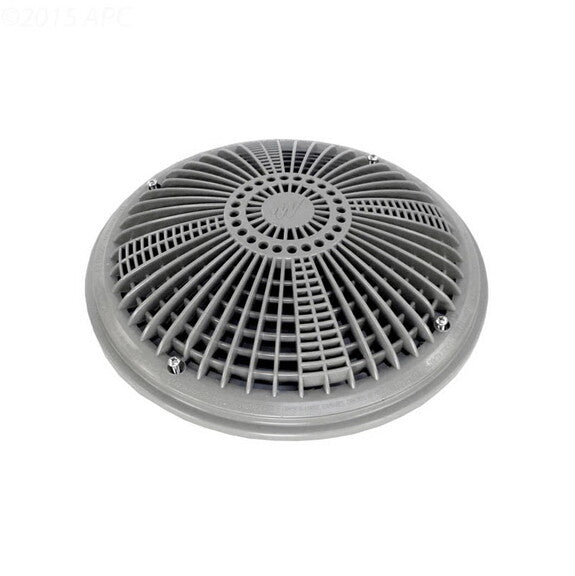

The Waterway Plastics 640-1907V is a ten-inch round Tru Flo suction cover and frame for drain applications. It is designed in gray and meets VGB standards and Consumer Safety Product Commission (CPSC) requirements. This unit has undergone certification and testing per ASME A112.19.8-2007 and ASME A112.19.8a-2008. The cover's open area is thirty point nine square inches, supporting a floor flow rate of two hundred gallons per minute at four point zero four feet per second. Its wall flow rate is one hundred thirty-six gallons per minute at two point two four feet per second, and at one point five feet per second, it achieves one hundred forty-three gallons per minute.

• Compliant with VGB standards for suction fittings.
• Certified to meet ASME A112.19.8-2007 and ASME A112.19.8a-2008.
• Features a ten-inch round frame with a gray finish.

Product Highlights

This suction cover is essential for maintaining safe and efficient pool drainage.

Product Information

Standard Information

• Item: Drain Cover & Frame
• SubBrand: Tru Flo

Technical Specifications

• Shape: Round
• Color: Gray
• Cover Open Area: 30.9 square inches
• Floor Flow Rate: 200 gallons per minute at 4.04 feet per second
• Wall Flow Rate: 136 gallons per minute at 2.24 feet per second
• Flow Rate at 1.5 feet per second: 143 gallons per minute
• Dimensions: 11.25 x 10.50 x 2.75 inches
• VGB Compliant: Yes
