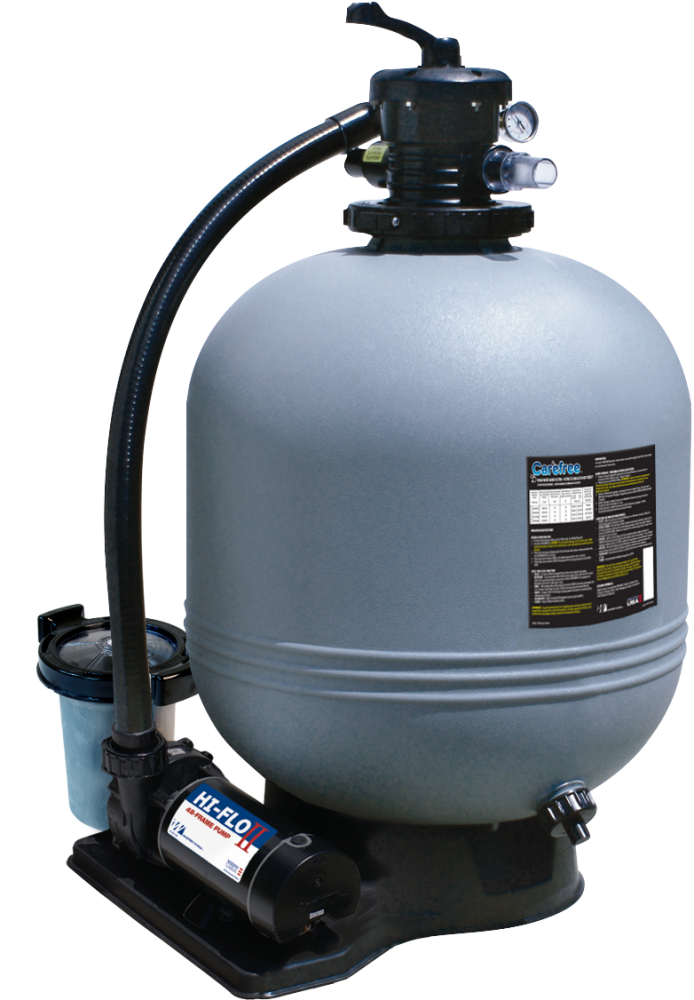

Waterway Plastics 520-5347-3s Sand Filter Pump System 1 Hp

Product Description

The WATERWAY PLASTICS 520-5347-3s is a complete sand filter and pump system engineered for above ground pool installations. The package pairs a single-speed, 1 HP pump with a 22-inch diameter sand filter capable of flowing up to 55 GPM, delivering consistent water clarity without requiring separate component sourcing. The pump connects via a 3-foot cord with a twist-lock plug, and the filter is equipped with a 7-function top-mount backwash valve for straightforward operation. Pool service professionals and knowledgeable installers will find this an all-in-one solution ready for seasonal setup.

This system is intended for residential above ground pool applications. It ships as a complete pump and filter pack, providing the hardware needed to get filtration running quickly. The 22-inch filter tank accepts up to 250 pounds of sand media, which is sold separately and must be sourced and loaded prior to startup. The system suits typical above ground pool plumbing configurations using standard 1-1/2-inch and 2-inch fittings.

Key Features

• Single-speed 1 HP pump sized for above ground pool flow demands
• 55 GPM filter flow rate through a 22-inch diameter sand filter tank
• 7-function top-mount backwash valve for easy manual operation
• 3-foot pump cord with twist-lock plug for secure electrical connection
• 1-1/2-inch union intake and 2-inch union discharge with 1-1/2-inch FPT threads on both
• 1-1/2-inch filter drain for convenient winterization and servicing

Compatibility

Designed as an OEM-style above ground pool filtration solution; intended for use with standard above ground pool plumbing using 1-1/2-inch and 2-inch union connections.

Installation Notes

Installation should be performed by a qualified pool service professional familiar with local electrical and plumbing codes. Disconnect power at the breaker before servicing any pump or filter components. Sand media (up to 250 pounds, sold separately) must be loaded into the filter tank and the system fully primed before initial startup. Verify that all union connections are hand-tight and leak-free before energizing the pump.

Technical Specifications

• Pump Horsepower: 1 HP
• Pump Speeds: 1 Speed
• Pump Cord: 3 feet, Twist Lock Plug
• Filter Diameter: 22 inches
• Filter Flow Rate: 55 GPM
• Sand Capacity: 250 pounds (sold separately)
• Backwash Valve: 7-Function Top Mount
• Filter Drain: 1-1/2 inches
• Intake: 1-1/2-inch union, 1-1/2-inch FPT threads
• Discharge: 2-inch union, 1-1/2-inch FPT threads

Standard Information

• Brand: WATERWAY PLASTICS
• Manufacturer Part Number: 520-5347-3s
