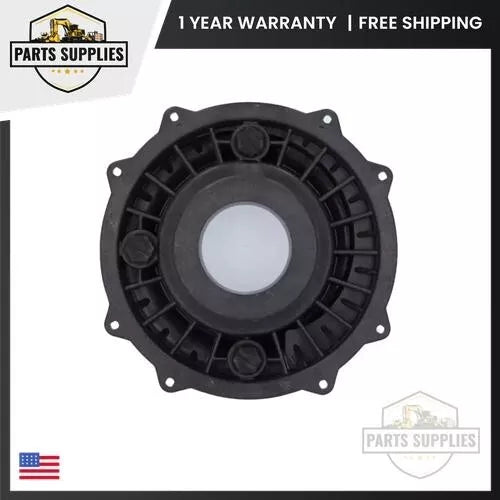

Waterway Plastics 311-1210B Executive Pump Faceplate

Product Description

The Waterway Plastics 311-1210B Executive Pump Faceplate is suitable for Executive 48 and 56 frame pumps. It is crafted by Waterway Plastics and features a center suction style. The installation is secured with eight screws ensuring a reliable fit. This faceplate accommodates a two and one-half inch suction pipe size with an actual intake measurement of three inches.

• Designed for Executive 48 and 56 frame pumps.
• Includes a 2 inch intake thread with a 3 inch actual measurement.
• Features drain plug locations at 3, 6, and 9 o'clock positions.

Product Highlights

This faceplate is essential for proper functioning of pool equipment, providing a secure and effective connection for pool plumbing.

Product Information

Standard Information

• Brand: Waterway Plastics
• Model: Executive 48, Executive 56

Technical Specifications

• Intake Thread: 2 inches (Actual Measurement is 3 inches)
• Frame Size: 56 Frame
• Faceplate Fastening Type: 8 screws
• Suction Style: Center
• Drain Plug Location: 3, 6, 9 o'clock
• Suction Connection Diameter: 3-11/16 inches outer diameter
• Suction Connection Type: Male Buttress Thread (MBT)
• Suction Pipe Size: 2-1/2 inches
• Discharge Size: 2.5 MBT
