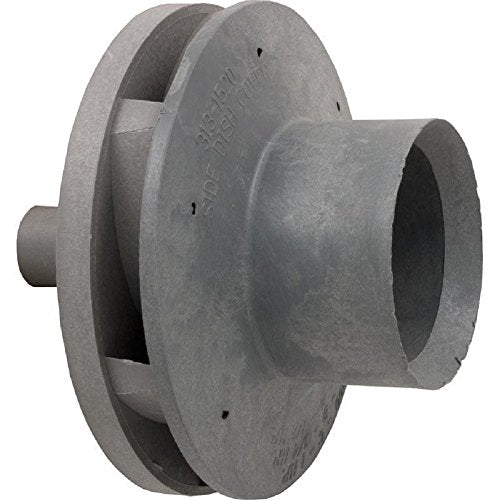

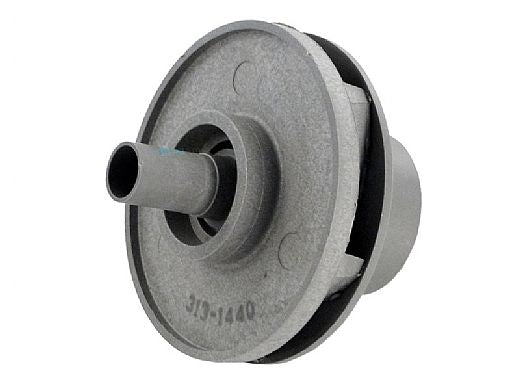

Waterway 310-4000 Impeller for HiFlo Pump 1HP | Closed Face

Product Description

Waterway 310-4000 impeller is designed for the HiFlo side discharge pump. Suitable for 1 horsepower motors, this closed face impeller is a key component in maintaining effective water flow in your pool system. Installation requires a 1 horsepower or greater thru bolt motor.

• Designed for HiFlo side discharge pumps
• Closed face impeller
• Rated for 1 horsepower

Product Highlights

The Waterway 310-4000 impeller ensures optimal performance of your HiFlo pump system. This part is essential for maintaining the efficiency and reliability of your pool pump by ensuring proper water circulation.

Product Information

Standard Information

• Brand: Waterway
• MPN: 310-4000
• UPC: 806105063175
• Category: Pool Equipment Parts

Technical Specifications

• Type: Closed Face
• Impeller Diameter OD: 3.5 inches
• Vane Width ID: 0.375 inches
• Eye Diameter OD: 1.8125 inches
• Eye Length: 1 inch
• Impeller Thickness OD: 0.75 inches
• Seal Seat Depth: 0.4375 inches
• Shaft Length: 0.9375 inches
• Shaft Diameter OD: 0.625 inches
• Seal Seat Diameter OD: 1.5625 inches
• Application: HiFlo Pump
