WATERGROUP 15055002 WATERGROUP 489DFAIO-150 Chemical Free Iron Filter

Product Description

The WATERGROUP 489DFAIO-150 is a chemical-free iron filter with the MPN 15055002. It effectively removes ferrous iron, low levels of dissolved hydrogen sulfide, and manganese from water. This system features a single-tank design that uses an air bubble to oxidize ferrous iron prior to the filtration process. The oxidized particles are then trapped by the filter media. The system includes a regeneration process to refresh the oxygen and eliminate accumulated iron.

• Space-saving, single-tank design.
• Oxidizes ferrous iron through air injection.
• Effectively removes iron, manganese, and hydrogen sulfide.

Product Highlights

The system combines efficiency with a compact design, making it ideal for residential and light commercial applications.

Product Information

Standard Information

• Service Flow Rate: 4.0 US gpm
• Peak Flow Rate: 10.0 US gpm

Technical Specifications

• Backwash Flow Rate: 5.0 US gpm
• Media (Cubic Feet): 1.5 ft³

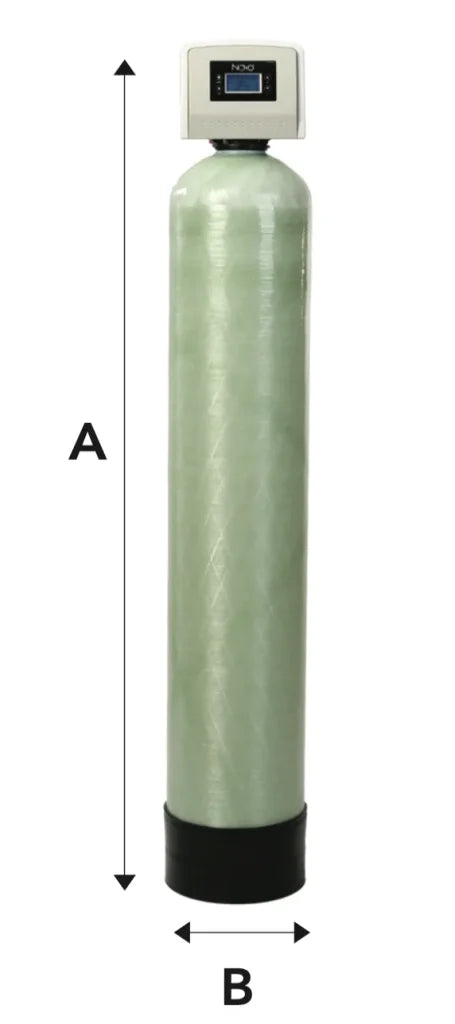

• Pressure Tank Size: 10 x 54 inches
• Maximum Iron: AIO, AIOM, AIOB: 0.0 - 10.0 ppm, AIOC: 0.0 ppm
• Hydrogen Sulfide: AIO & AIOM: 0.0 - 1.0 ppm, AIOC: 0.0 - 3.0 ppm, AIOB: 0.0 ppm
• Manganese: AIO, AIOC, AIOB: 0.0 ppm, AIOM: 0.0 - 1.0 ppm
• pH Range: AIO, AIOC, AIOB: 7.0 - 8.5, AIOM: 6.5 - 7.5
• Plumbing Connections: INCLUDES 1inch 90° NPT ELBOWS
• Electrical Requirements: INPUT 120V 60 Hz - OUTPUT 12V 650mA
• Water Temperature Limits: MIN 40° - MAX 110° F (4° - 43° C)
• Water Pressure Limits: MIN 30 - MAX 125 PSI (207 - 862 KPA)
